Electronic Brake Force Distribution (EBD) Failure Matrix

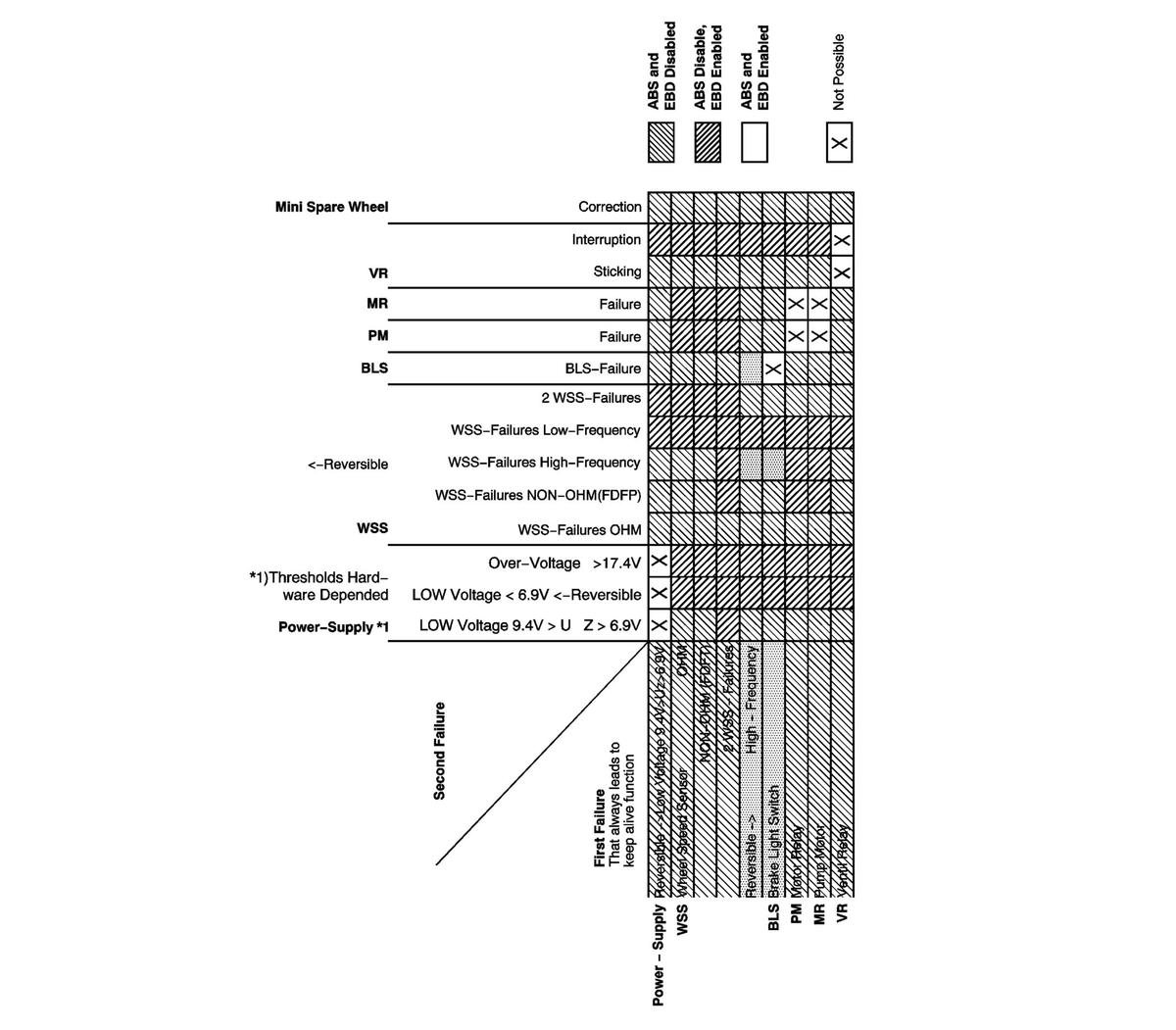

Fig 1: Electronic Brake Force Distribution (EBD) Failure Matrix

GM1290286

Courtesy of GENERAL MOTORS CORP.
