Home >> Chevrolet >> 2007 >> Optra5 LS, Standard >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior/Interior Trim >> Exterior Trim >> Repair Instructions >> Fascia Grille Replacement (Four Door/Wagon) >> Removal Procedure

Removal Procedure

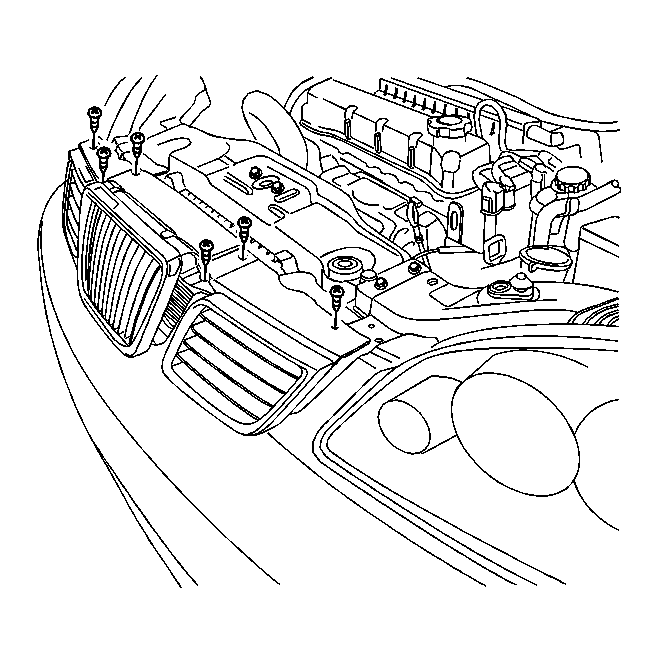

    Fig 1: View Of Fascia Grille And Screws
    GM1309222Courtesy of GENERAL MOTORS CORP.
  1. Open the hood.
  2. Remove the screws and the radiator grille.
