Removal Procedure

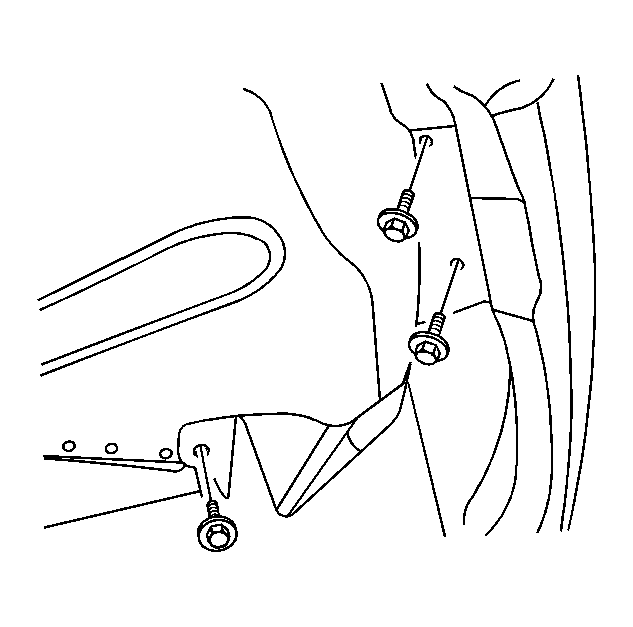

    Fig 1: View Of Splash Shield Screws
    GM1459918Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear wheels. Refer to Tire and Wheel Removal and Installation .
  2. Remove the screws and the splash shields.
  3. Remove the screws behind the fascia.
    4. Fig 2: View Of Rear Fascia Screws
    GM1459920Courtesy of GENERAL MOTORS CORP.
  4. Remove the luggage compartment rear quarter trim panels. Refer to Cargo Area Rear Trim Panel Replacement (Liftgate) or Cargo Area Rear Trim Panel Replacement (Sedan) .
  5. Remove the bolts and the nuts in the luggage compartment.
    6. Fig 3: Identifying Luggage Compartment Bolts
    GM1459930Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts and the screws.
  7. Remove the rear bumper fascia.
