Removal Procedure

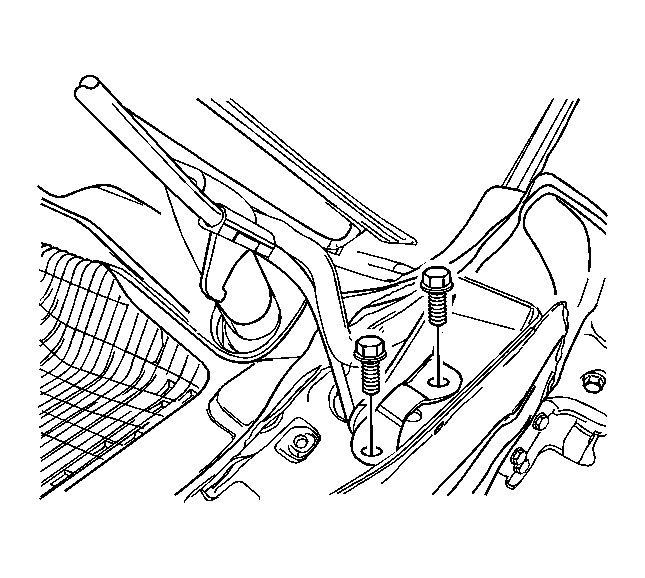

    Fig 1: View Of Hood Hinge Bolts
    GM1309219Courtesy of GENERAL MOTORS CORP.
  1. Remove the hood. Refer to Hood Replacement .
  2. Remove the bolts and the hinge.
