Disassembled Views

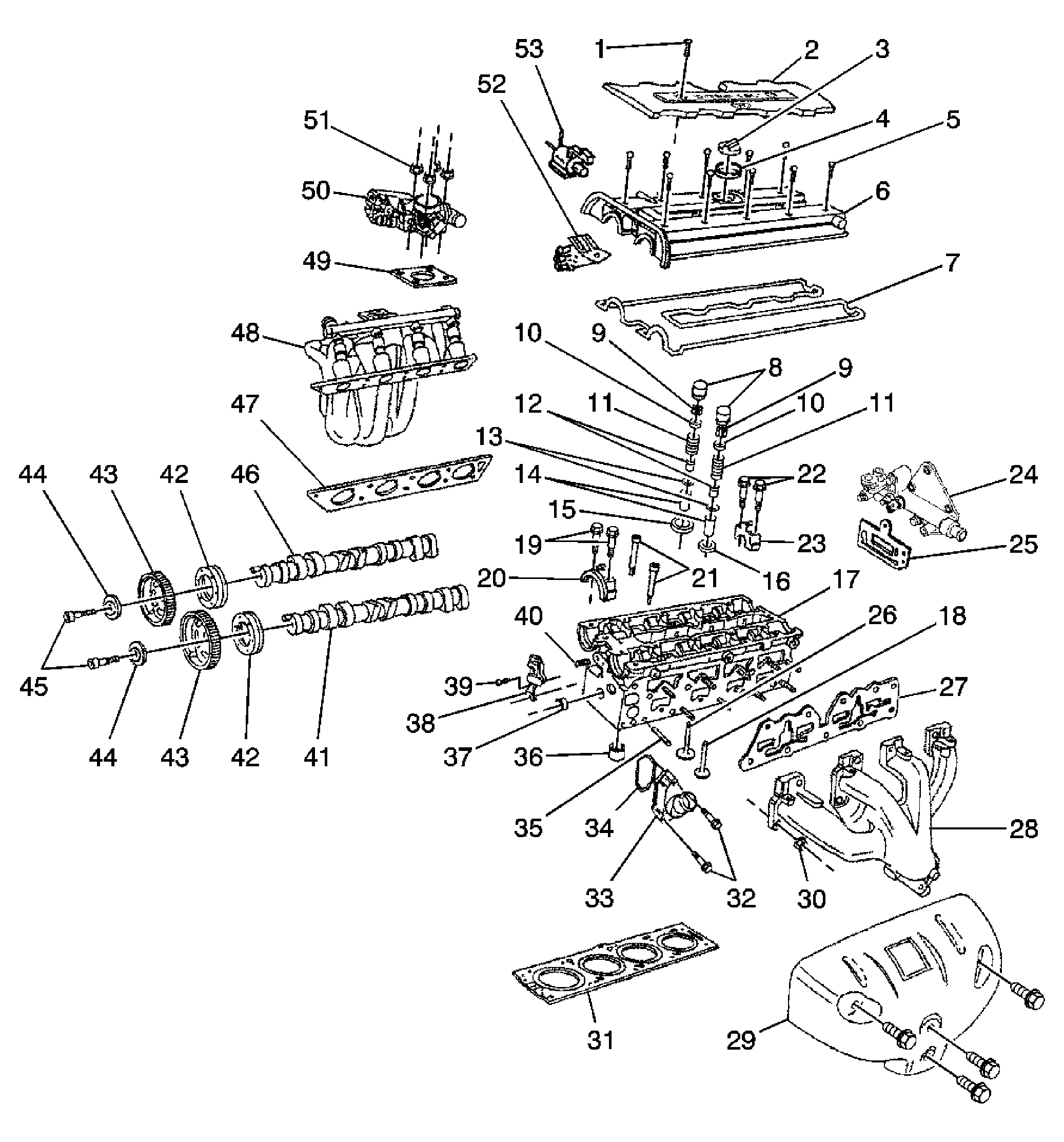

Fig 1: View Of Upper End Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt
2	Spark Plug Cover
3	Oil Filler Cap
4	Oil Filler Cap Seal
5	Bolt
6	Camshaft Cover
7	Camshaft Cover Gasket
8	Tappet Adjuster
9	Valve Key
10	Valve Spring Cap
11	Valve Spring
12	Valve Stem Seal
13	Valve Spring Seat
14	Valve Guide
15	Intake Valve Seat Ring
16	Exhaust Valve Seat Ring
17	Cylinder Head
18	Exhaust Valve
19	Bolt
20	Front Camshaft Cap
21	Head Bolt
22	Bolt
23	Intermediate Camshaft Cap
24	Exhaust Gas Recirculation Adapter
25	Exhaust Gas Recirculation Adapter Gasket
26	Intake Valve
27	Exhaust Manifold Gasket
28	Exhaust Manifold
29	Exhaust Manifold Heat Shield
30	Nut
31	Cylinder Head Gasket
32	Bolt
33	Thermostat Housing
34	Thermostat Housing Gasket
35	Stud
36	Sleeve
37	Plug
38	Camshaft Position Sensor
39	Bolt
40	Oil Gallery Plug
41	Exhaust Camshaft
42	Seal Ring
43	Camshaft Gear
44	Washer
45	Camshaft Gear Bolt
46	Intake Camshaft
47	Intake Manifold Gasket
48	Intake Manifold
49	Throttle Body Gasket
50	Throttle Body
51	Nut
52	Charcoal Canister Purge Solenoid
53	Exhaust Gas Recirculation Solenoid

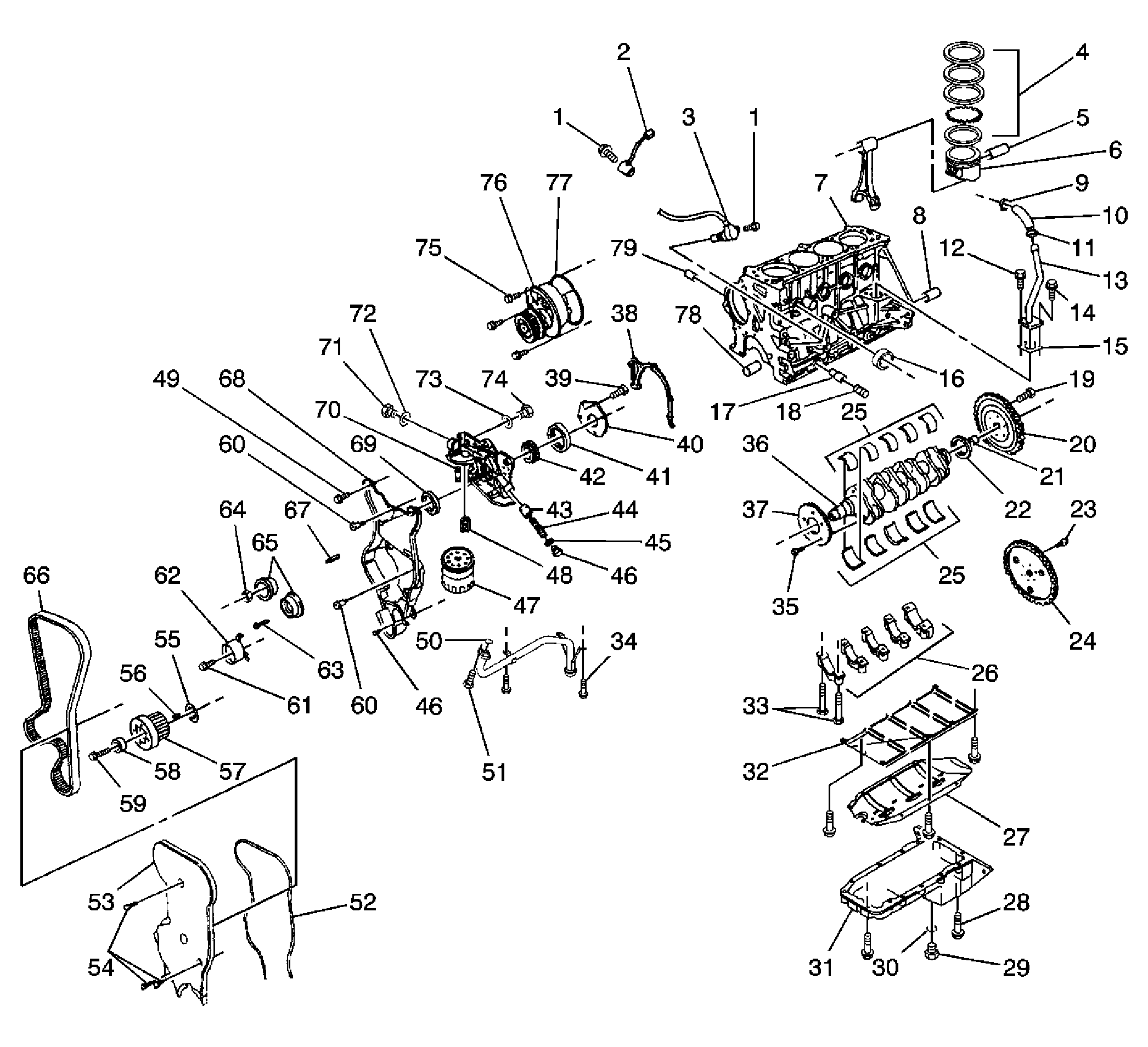

Fig 2: View Of Lower End Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt
2	Knock Sensor
3	Crankshaft Position Sensor
4	Piston Ring Set
5	Piston Pin
6	Piston
7	Engine Block
8	Sleeve
9	Clamp
10	Hose
11	30 Clamp
12	Bolt
13	Engine Ventilation Pipe
14	Bolt
15	Gasket
16	Water Jacket Cap
17	Bushing
18	Bushing Plug
19	Bolt (Manual Transaxle)
20	Flywheel (Manual Transaxle)
21	Needle Sleeve
22	Crankshaft Rear Seal
23	Bolt (Automatic Transaxle)
24	Flexible Plate (Automatic Transaxle)
25	Bearing Set
26	Connecting Rod
27	Oil Pan Scraper
28	Bolt
29	Drain Plug
30	Washer
31	Oil Pan
32	Crankshaft Bearing Bridge
33	Connecting Rod Bolt
34	Oil Suction Pipe
35	Bolt
36	Crankshaft
37	Transmitter Disk
38	Gasket
39	Bolt
40	Oil Pump Cover
41	Ring Gear
42	Gear
43	Pressure Relief Valve Plunger
44	Pressure Relief Valve Spring
45	Seal Ring
46	Pressure Relief Valve Plug
47	Oil Filter
48	Bypass Valve
49	Bolt
50	Seal Ring
51	Bolt
52	Gasket
53	Front Timing Belt Cover
54	Bolt
55	Thrust Inner Washer
56	Woodruff Key
57	Crankshaft Gear
58	Thrust Outer Washer
59	Bolt
60	Special Bolt
61	Bolt
62	Tensioner
63	Bolt
64	Nut
65	Idler Pulley
66	Camshaft Drive Belt
67	Stud
68	Rear Timing Belt Cover
69	Seal Ring
70	Connecting Piece
71	Oil Duct Outlet Plug
72	Washer
73	Washer
74	Oil Pressure Switch
75	Bolt
76	Water Pump
77	Seal Ring
78	Sleeve
79	Oil Gallery Plug
