Exterior Lights Schematics

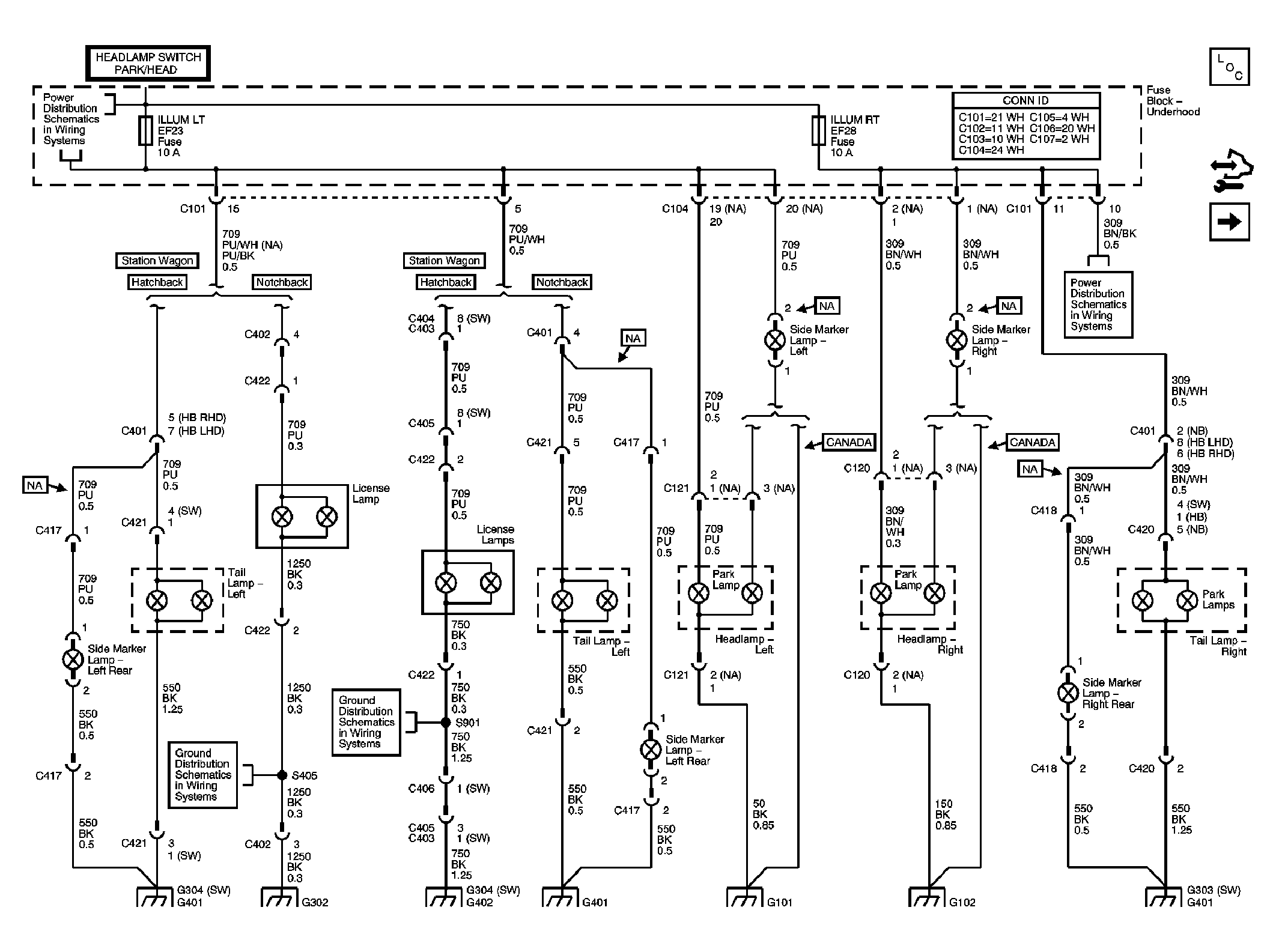

Fig 1: Park Lamps and License Plate Lamps Schematic
GM1708759Courtesy of GENERAL MOTORS CORP.

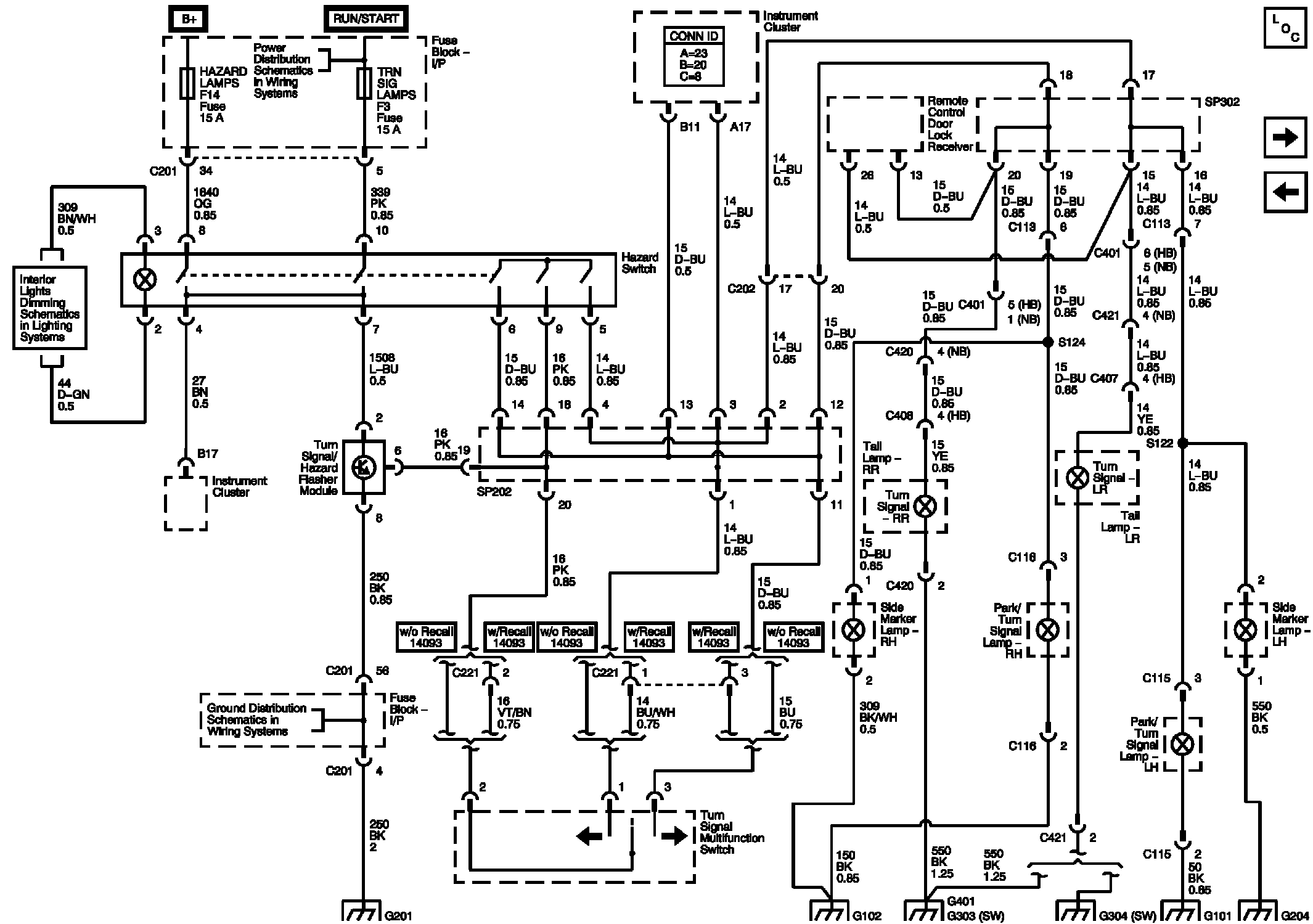

Fig 2: Turn and Hazard Lamps Schematic - North America
GM1650872Courtesy of GENERAL MOTORS CORP.

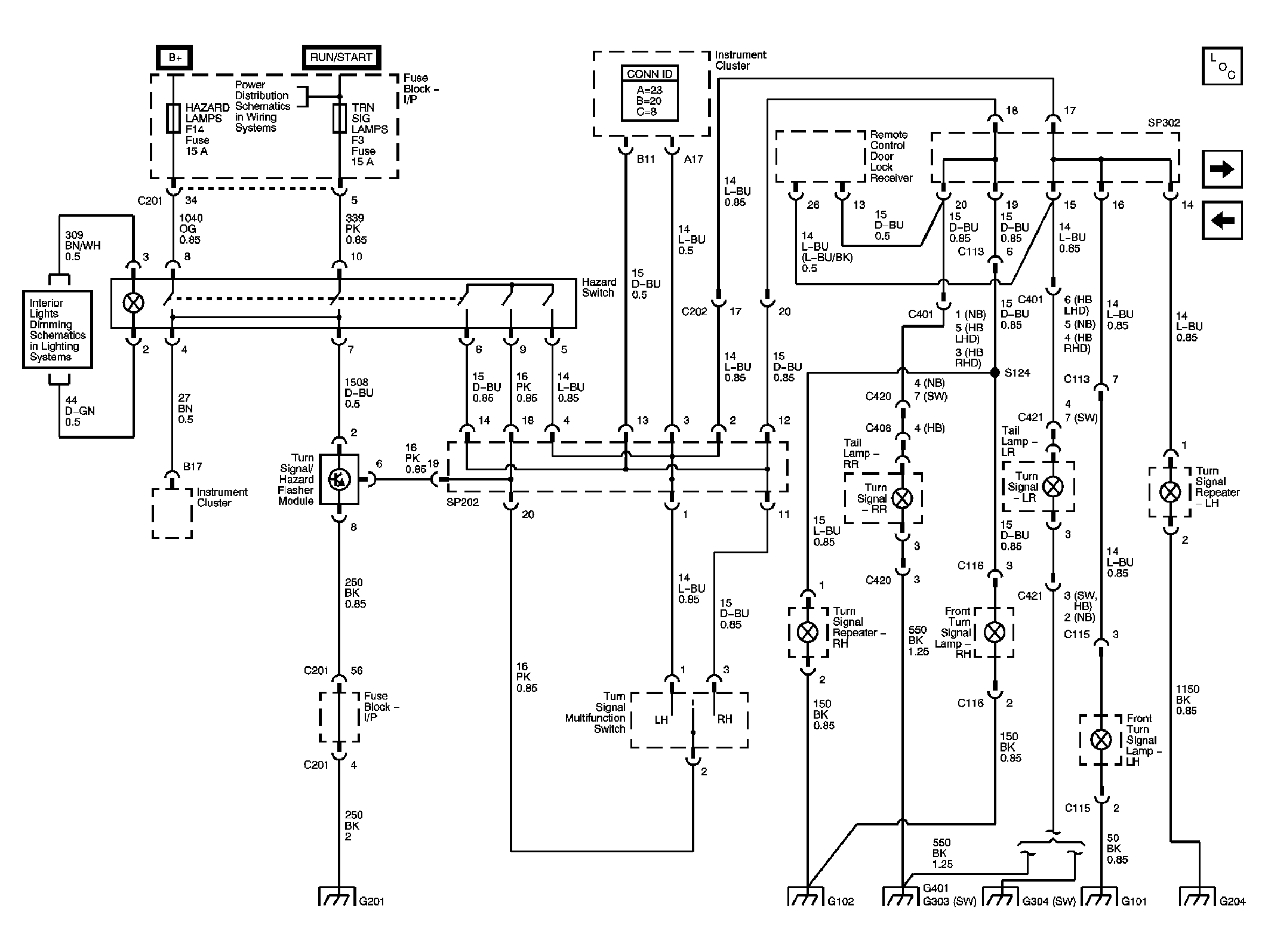

Fig 3: Turn and Hazard Lamps Schematic - Except North America
GM1650873Courtesy of GENERAL MOTORS CORP.

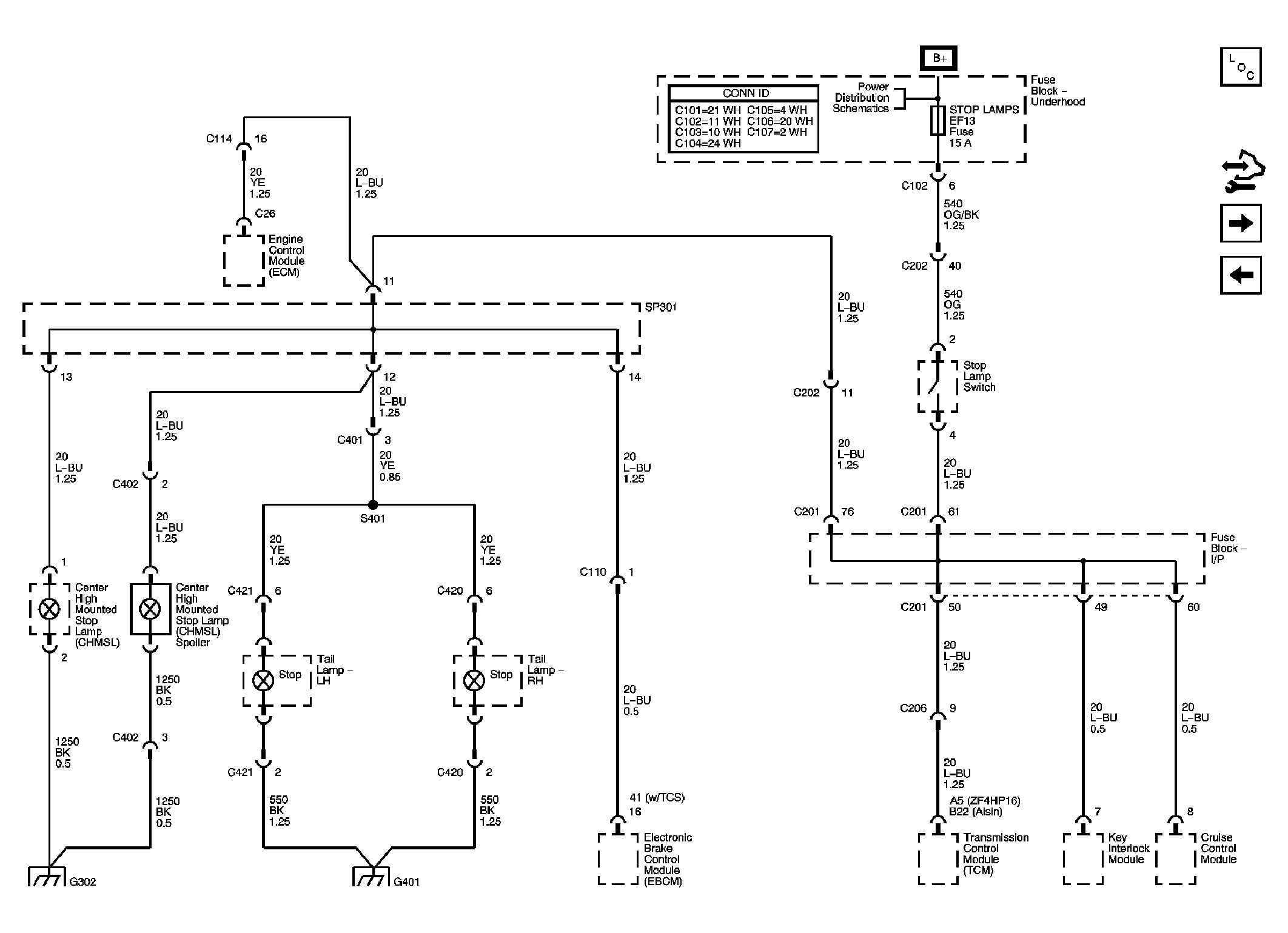

Fig 4: Stop Lamps Schematic - Notchback
GM1847447Courtesy of GENERAL MOTORS CORP.

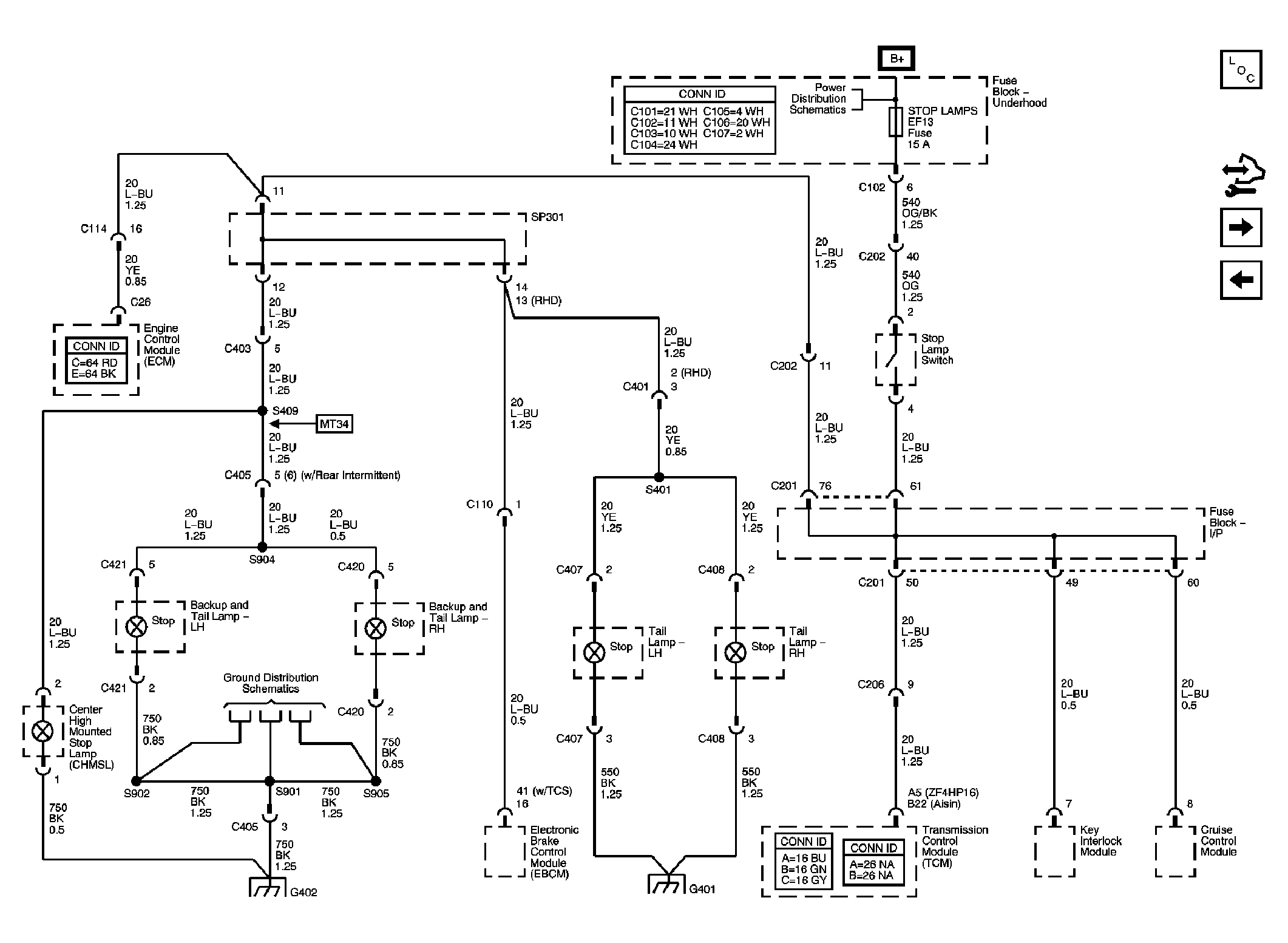

Fig 5: Stop Lamps Schematic - Hatchback
GM1847448Courtesy of GENERAL MOTORS CORP.

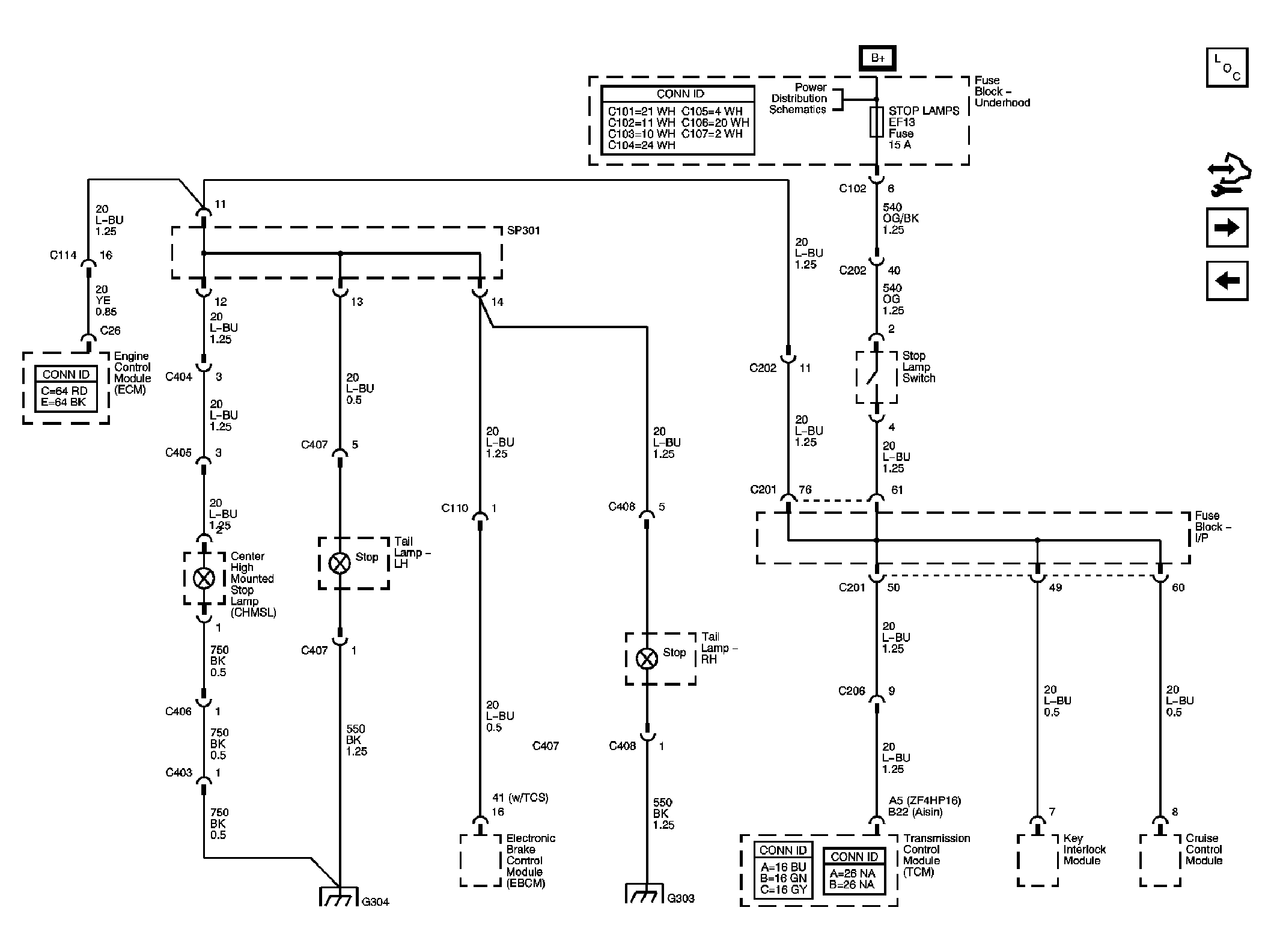

Fig 6: Stop Lamps Schematic - Station Wagon
GM1847449Courtesy of GENERAL MOTORS CORP.

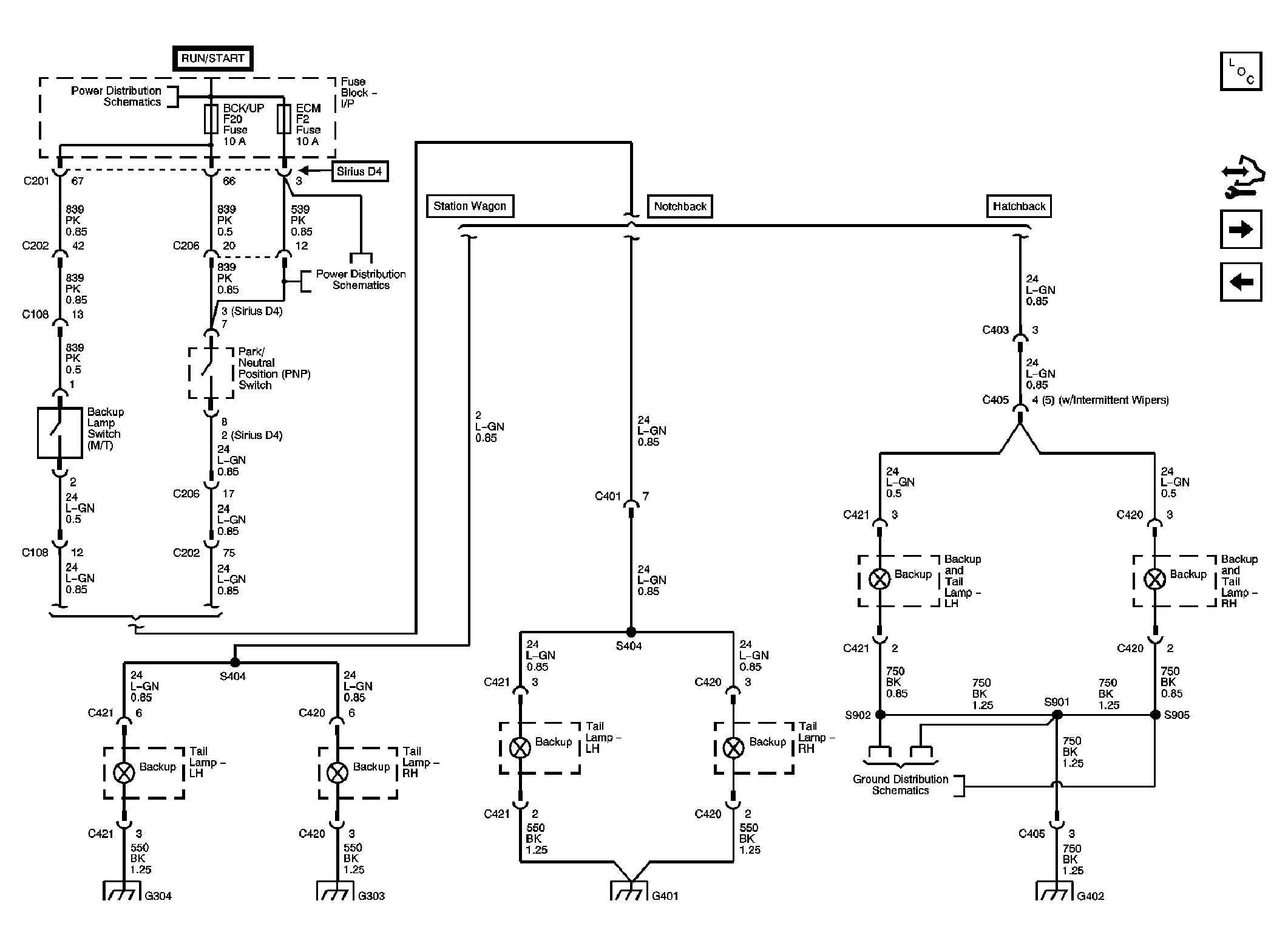

Fig 7: Backup Lamps Schematic
GM1708749Courtesy of GENERAL MOTORS CORP.

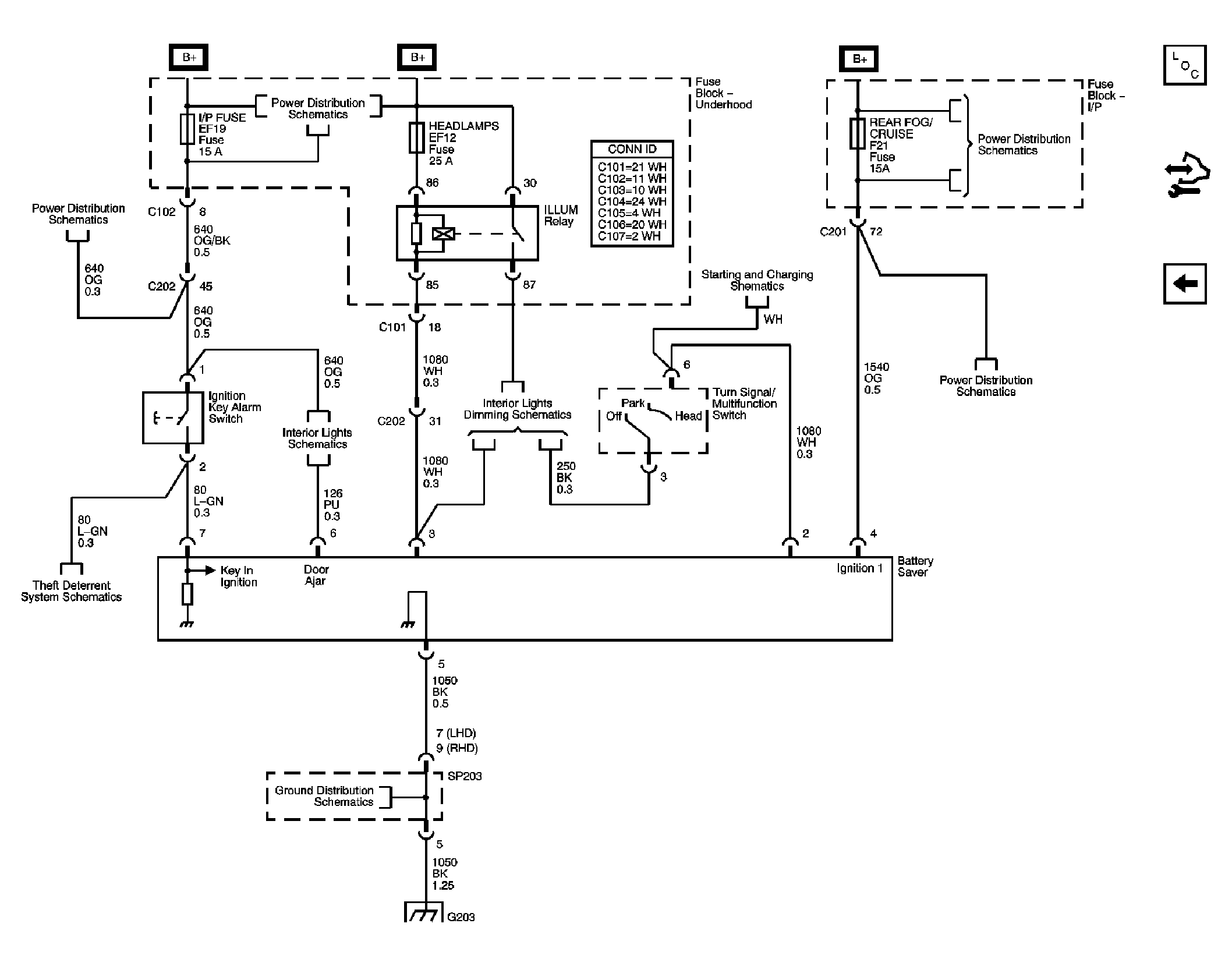

Fig 8: Battery Saver Schematic
GM1708757Courtesy of GENERAL MOTORS CORP.
