Cruise Control Schematics (w/o Throttle Actuator Control)

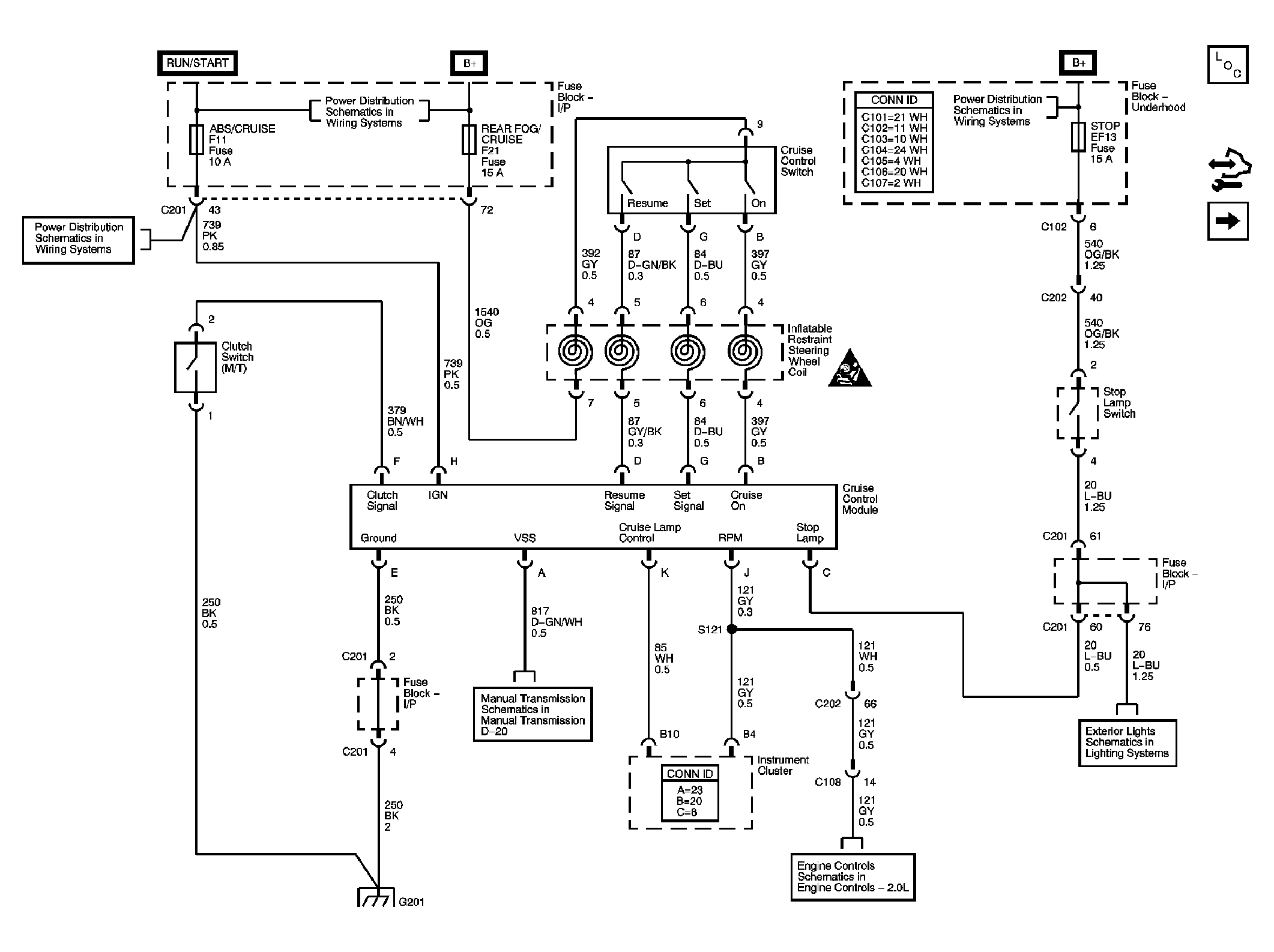

Fig 1: Manual Transmission Cruise Control Schematic
GM1650885Courtesy of GENERAL MOTORS CORP.

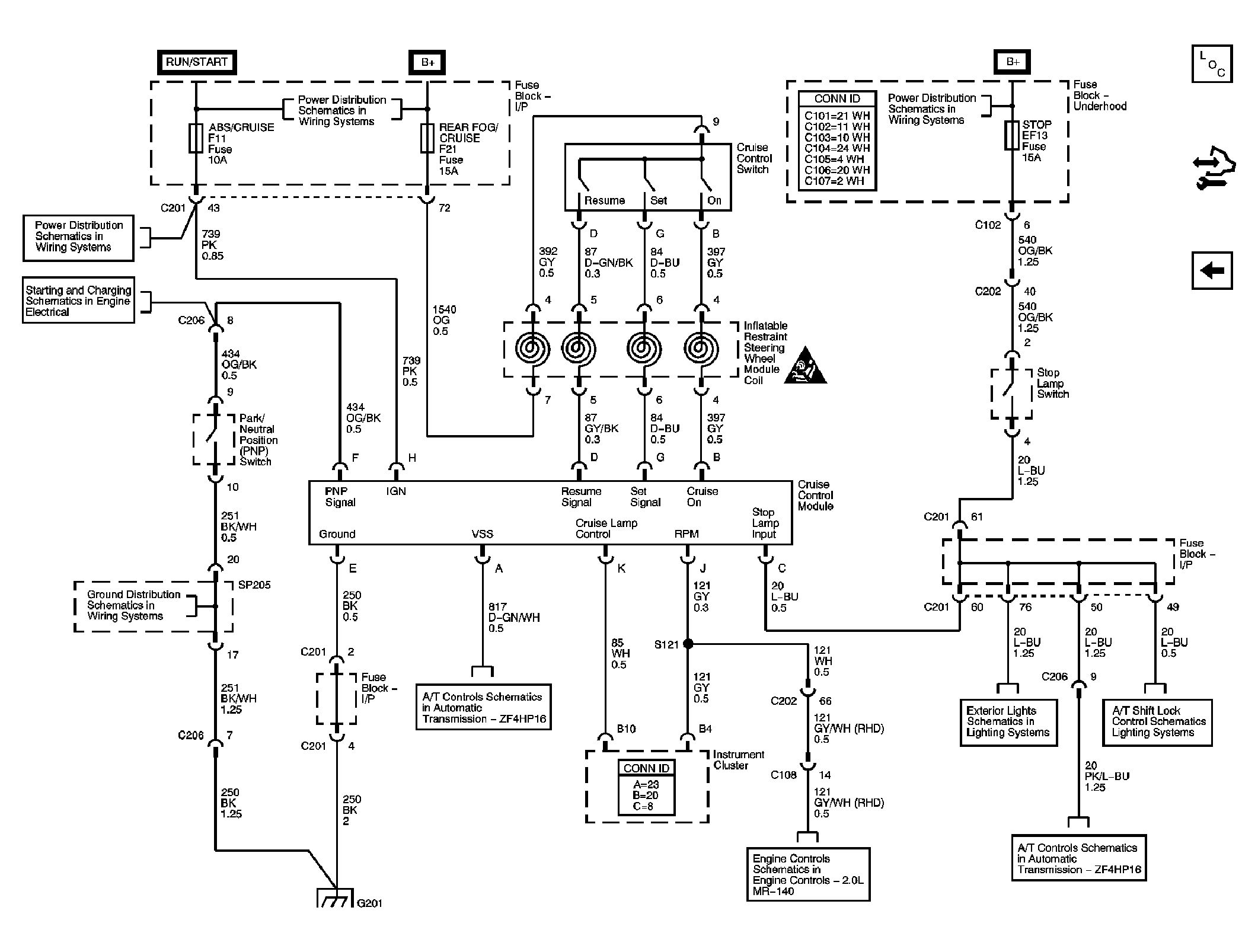

Fig 2: Automatic Transmission Cruise Control Schematic
GM1650886Courtesy of GENERAL MOTORS CORP.
