Cruise Control Schematics (w/ Throttle Actuator Control)

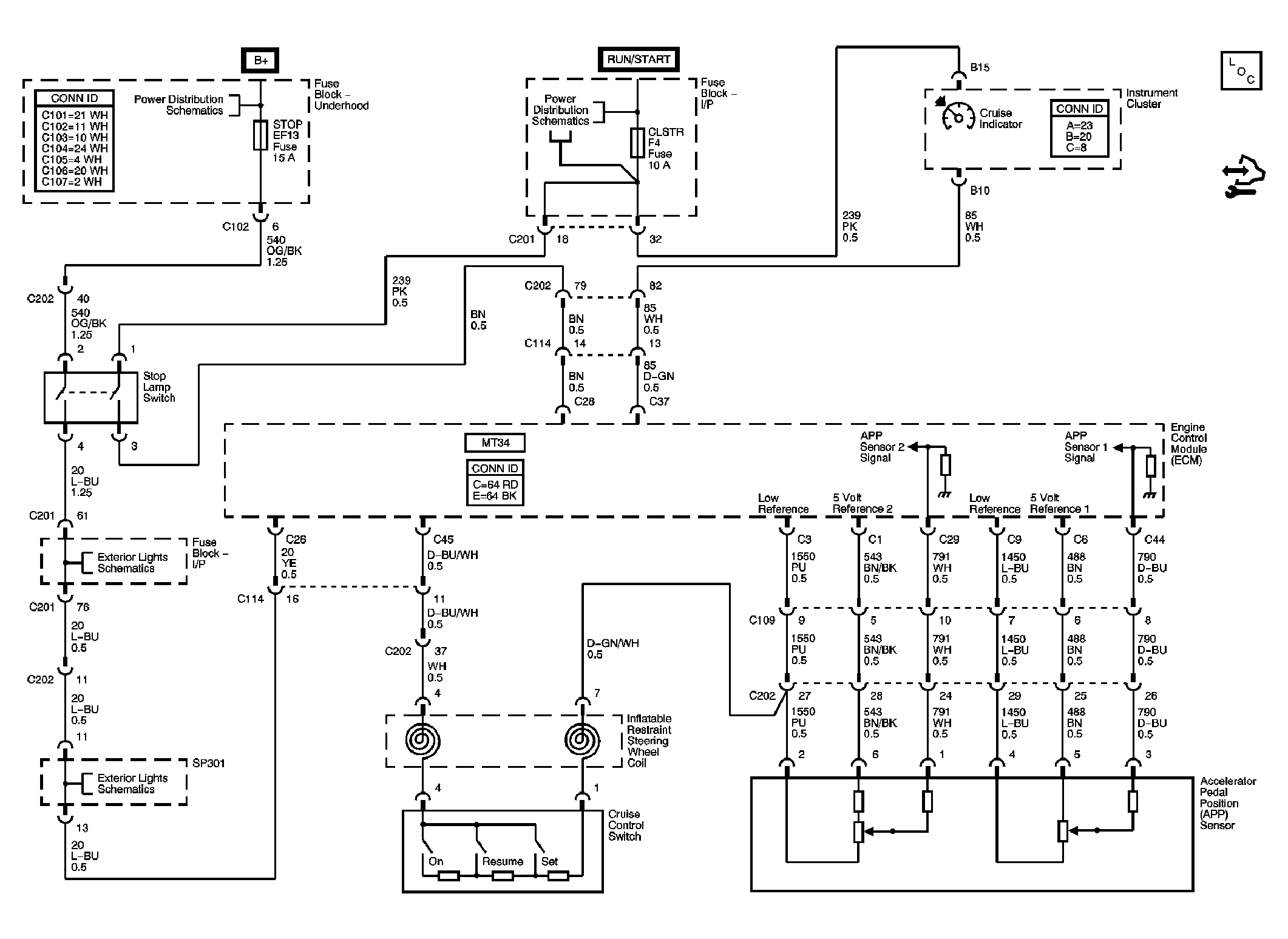

Fig 1: Cruise Control Schematic

GM1708735

Courtesy of GENERAL MOTORS CORP.
