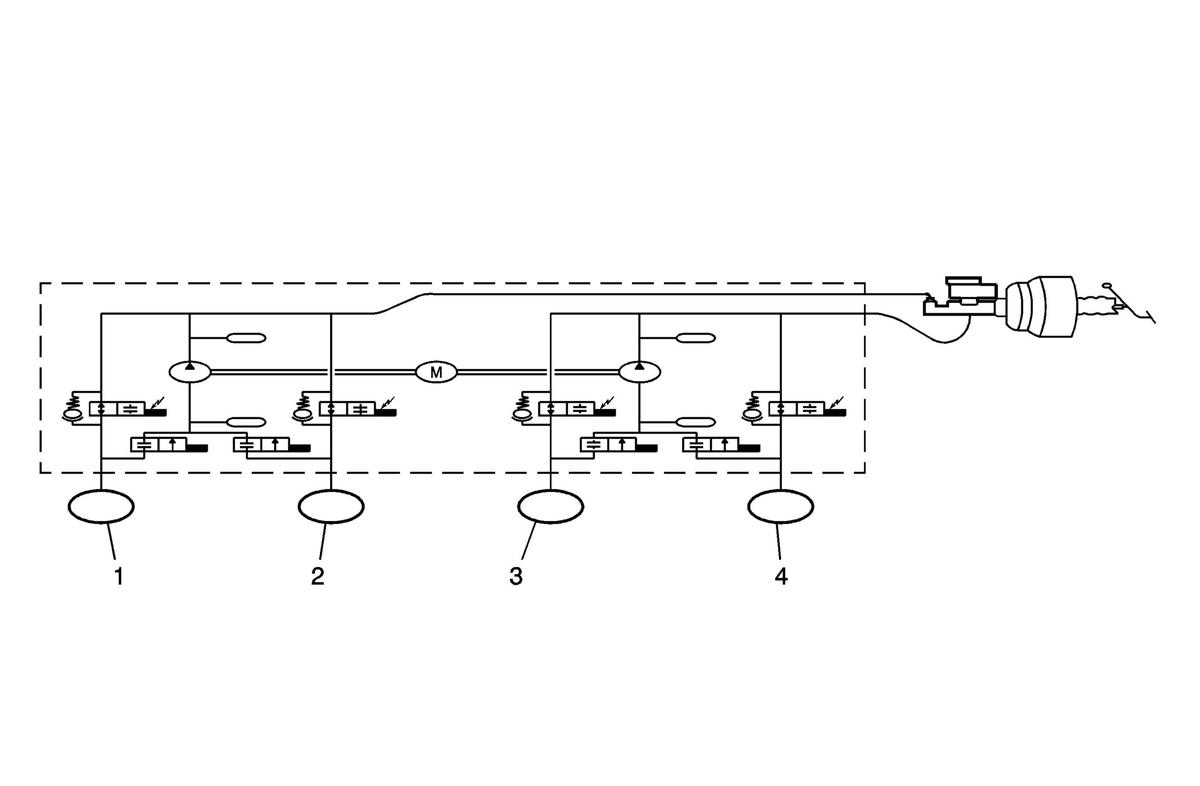

Antilock Braking Mode - Apply
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Left Rear |
| 2 |
Right Front |
| 3 |
Left Front |
| 4 |
Right Rear |
If a wheel speed sensor detects a wheel locking up, the electronic brake control module (EBCM) closes the normally open inlet valve for the brake on that wheel to prevent adding more hydraulic pressure to that brake.
