Home >> Chevrolet >> 2007 >> Optra LT, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior/Interior Trim >> Exterior Trim >> Repair Instructions >> Fascia Grille Replacement (Five Door) >> Removal Procedure

Removal Procedure

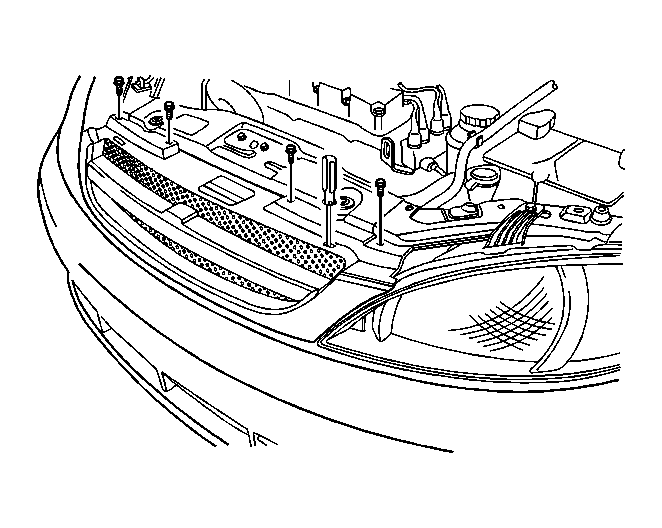

    Fig 1: View Of Fascia Grille And Screws
    GM1464297Courtesy of GENERAL MOTORS CORP.
  1. Open the hood.
  2. Remove the screws.
  3. Using a flat-bladed tool, disconnect the clips.
  4. Remove the fascia grille.
