Removal Procedure

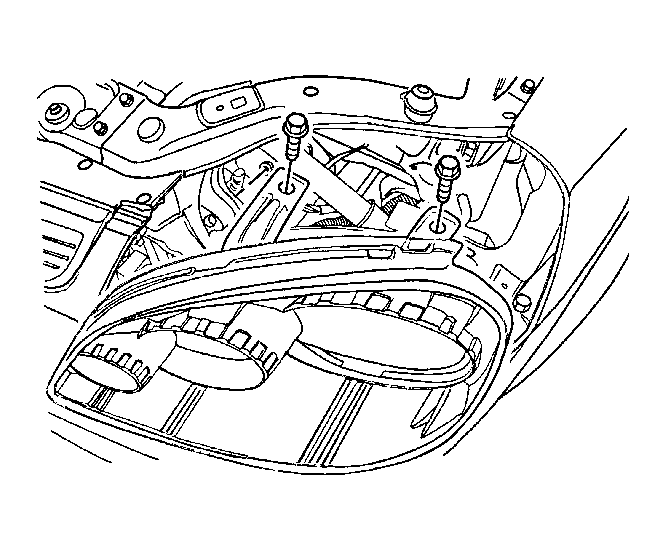

    Fig 1: View Of Headlamp Mounting Bolts
    GM1308850Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the headlamp mounting bolts.
    3. Fig 2: Identifying Headlamp Mounting Nut
    GM1541298Courtesy of GENERAL MOTORS CORP.
  3. Remove the headlamp mounting nut.
    4. Fig 3: Identifying Turn Signal Electrical Connector
    GM1541300Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the turn signal electrical connector.
    5. Fig 4: Identifying Headlamp Electrical Connector
    GM1541301Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the headlamp electrical connector.

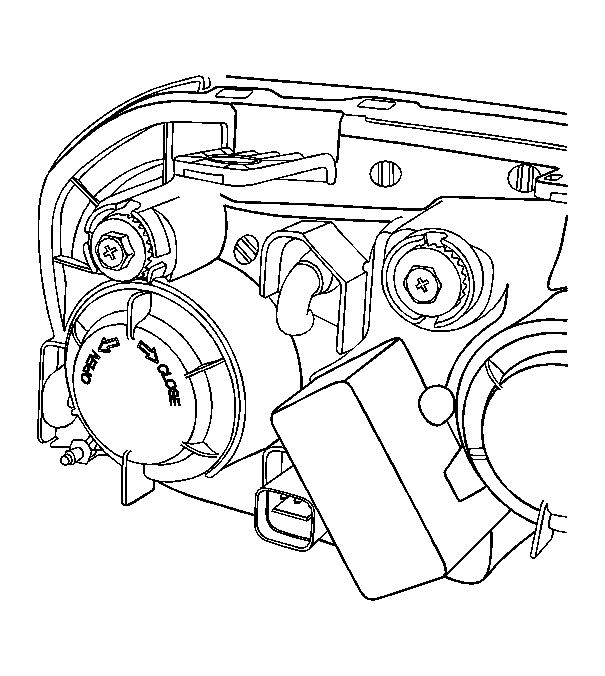

    6. Fig 5: View Of Headlamp Assembly And Bulb Cap
    GM1541302Courtesy of GENERAL MOTORS CORP.
  6. Remove the headlamp assembly.
  7. Turn left and remove the headlamp bulb cap, if necessary.

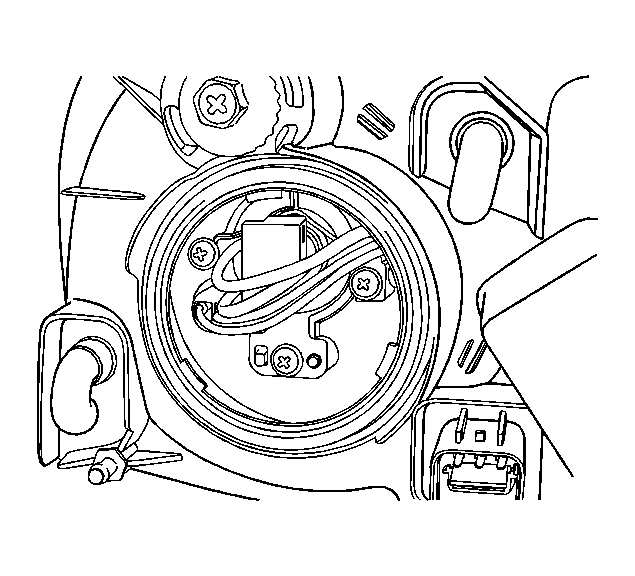

    8. Fig 6: View Of Headlamp Bulb Connector
    GM1541305Courtesy of GENERAL MOTORS CORP.
  8. Dry off the headlamp bulb clip.
  9. Disconnect the headlamp bulb connector.
    10. Fig 7: View Of Headlamp Bulb
    GM1541307Courtesy of GENERAL MOTORS CORP.
  10. Remove the headlamp bulb, if necessary.

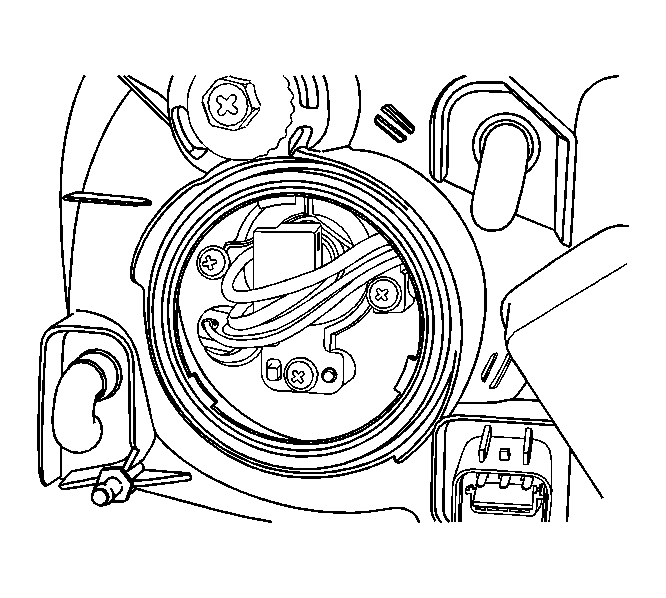

    11. Fig 8: Identifying Park Lamp Connector
    GM1651473Courtesy of GENERAL MOTORS CORP.
  11. Remove the park lamp.

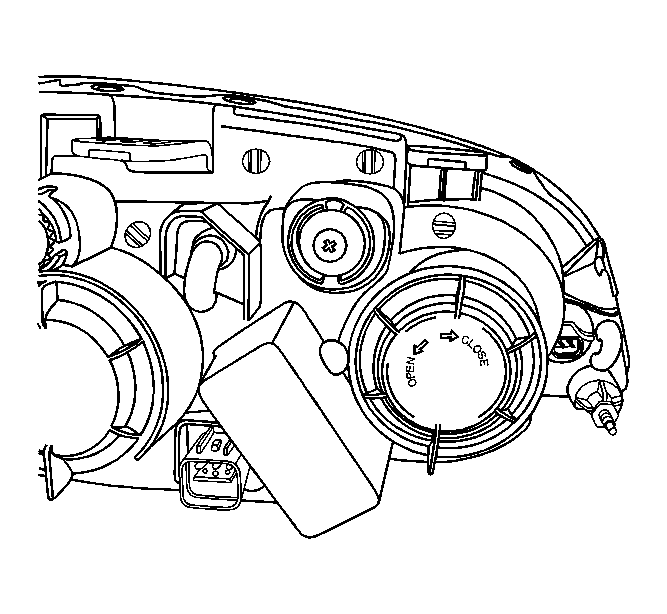

    12. Fig 9: View Of Headlamp High Beam Cap
    GM1651476Courtesy of GENERAL MOTORS CORP.
  12. Remove the headlamp high beam cap.
    13. Fig 10: View Of Headlamp High Beam Bulb Connector
    GM1651477Courtesy of GENERAL MOTORS CORP.
  13. Remove the headlamp high beam bulb clip.
  14. Disconnect the headlamp high beam bulb connector.
  15. Remove the headlamp high beam bulb, if necessary.
    16. Fig 11: View Of Turn Signal Lamp And Connector
    GM1651480Courtesy of GENERAL MOTORS CORP.
  16. Remove the turn signal lamp, if necessary.
