Automatic Transmission Controls Schematics

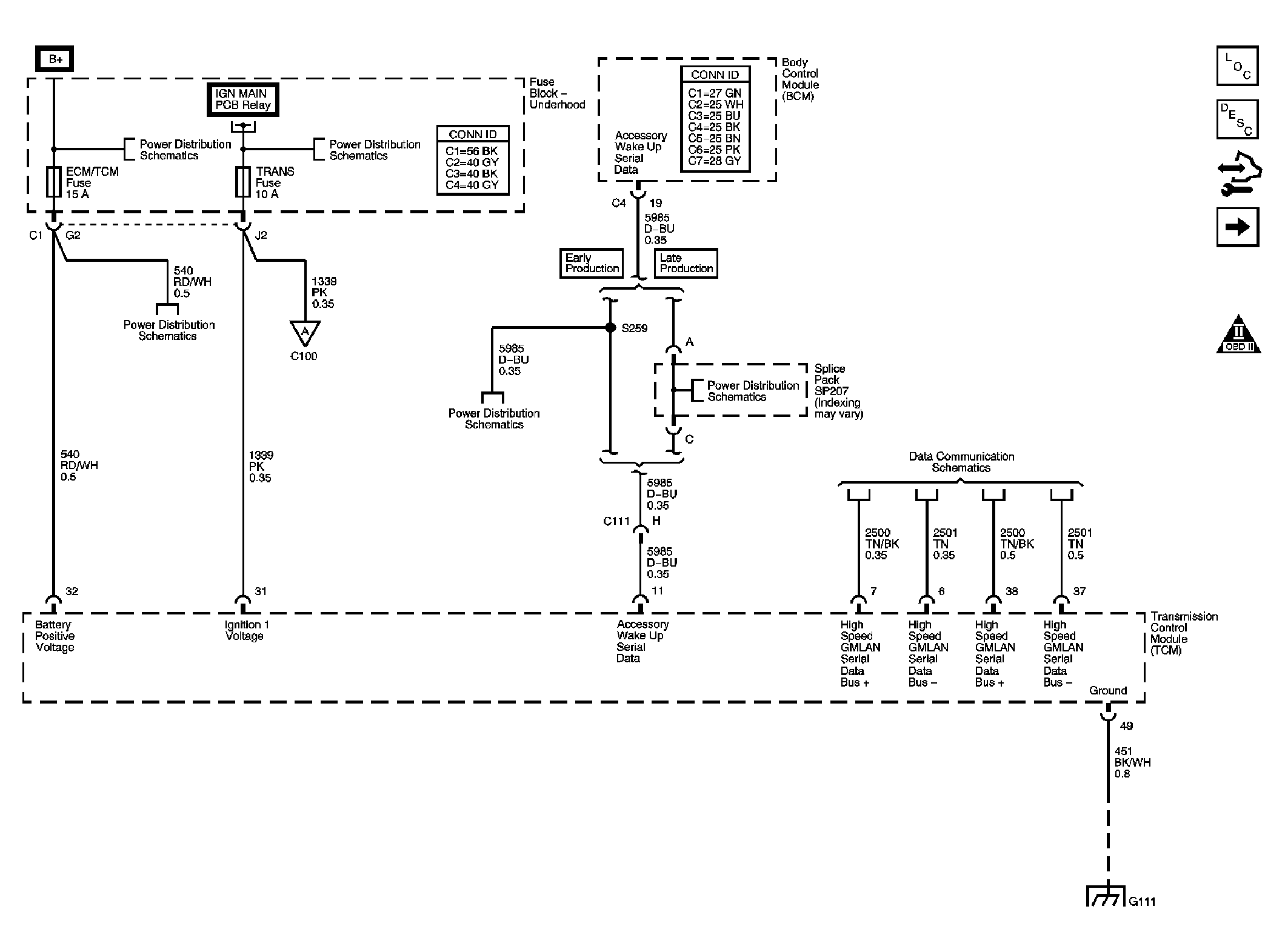

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

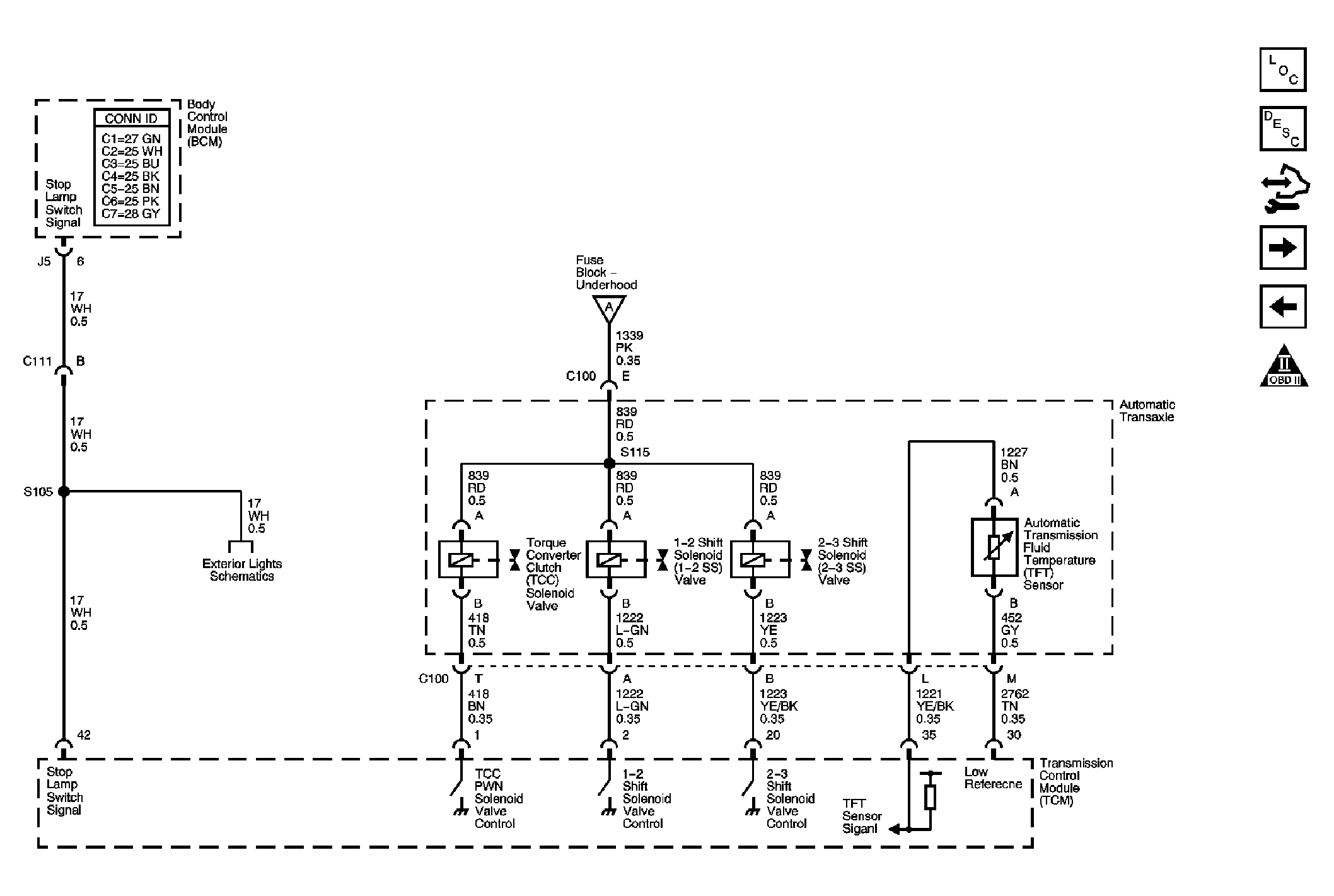

Fig 2: Stop Lamp Switch Signal, TFT Sensor, TCC, and Shift Solenoids

Courtesy of GENERAL MOTORS CORP.

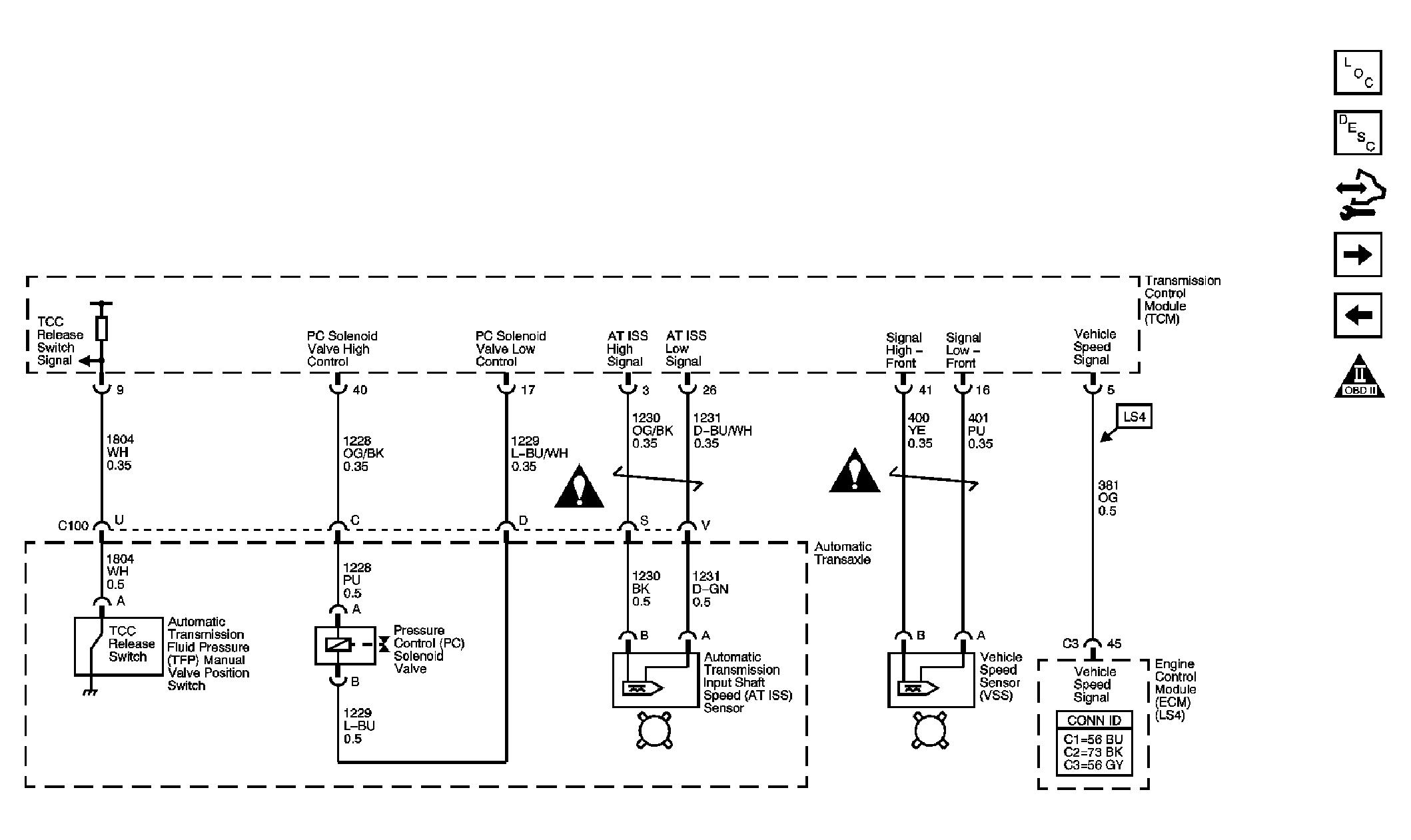

Fig 3: VSS, AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch

Courtesy of GENERAL MOTORS CORP.

Fig 4: PRNDL and IMS Switch

Courtesy of GENERAL MOTORS CORP.
