Steering Wheel Replacement

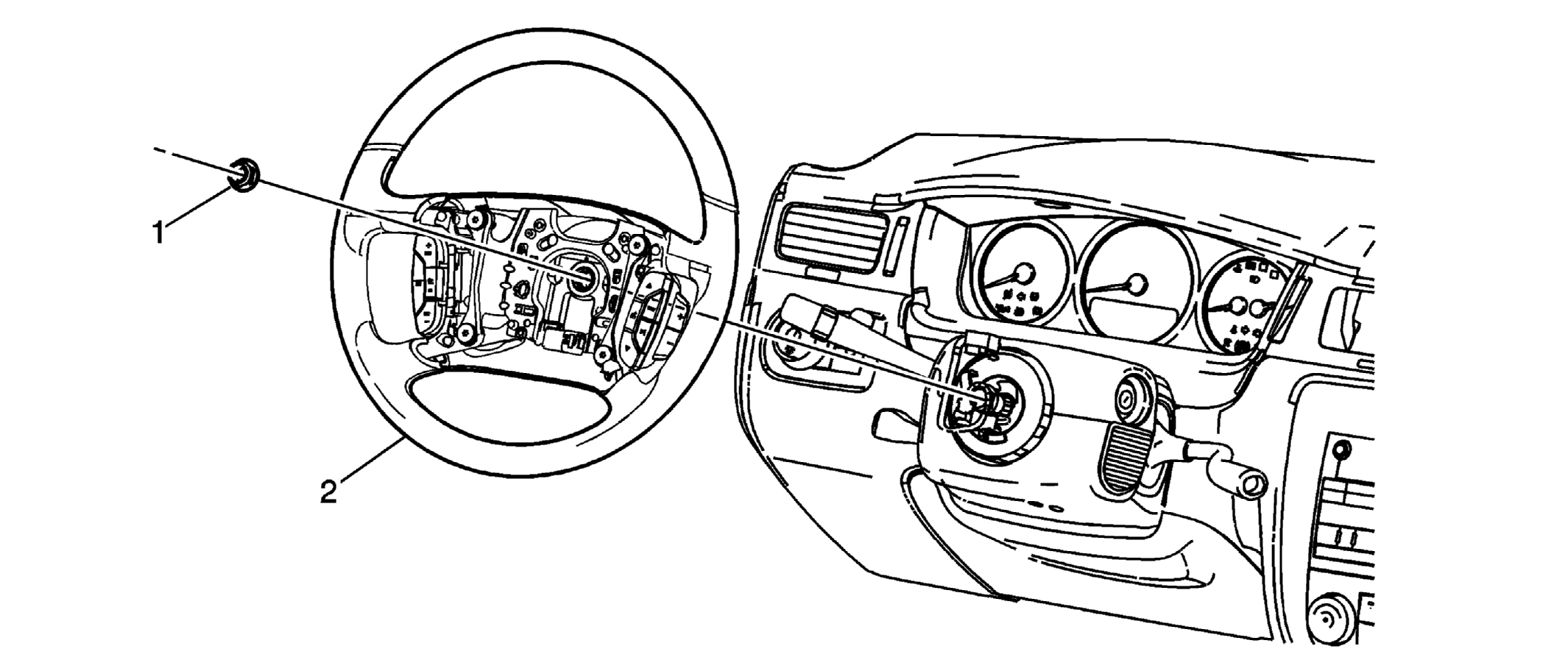

Fig 1: View Of Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Tools Required J 1859-A Countergear and Steering Wheel Puller. See Special Tools . J 42578 Steering Wheel Puller Legs. See Special Tools . Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Nut, Steering Wheel Assembly Tighten: 41 N.m (30 lb ft)
2	Wheel Assembly, Steering

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Tools Required

Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .

Nut, Steering Wheel Assembly

Tighten: 41 N.m (30 lb ft)

Wheel Assembly, Steering
