HVAC Schematics

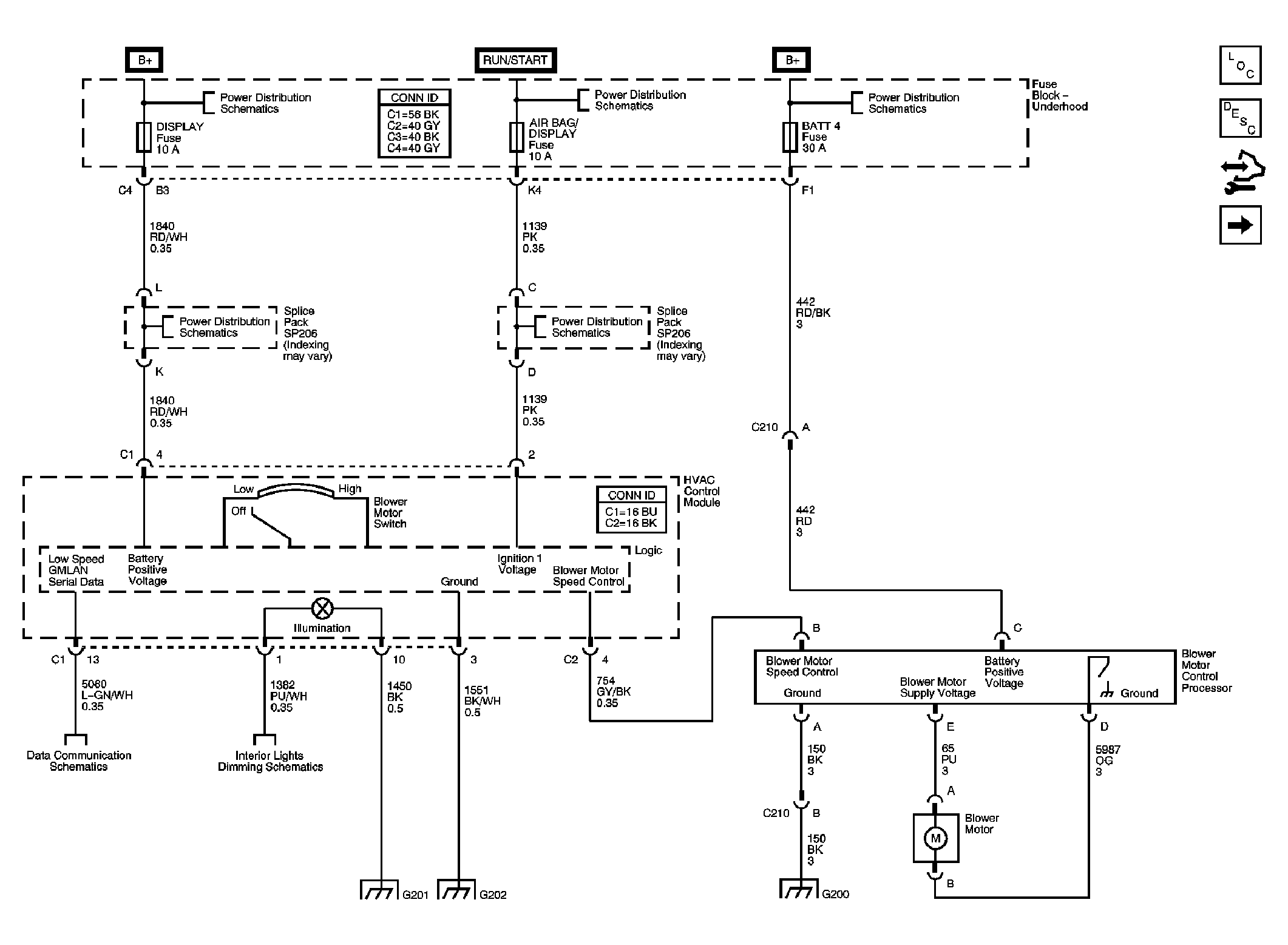

Fig 1: Power, Ground, and Blower Motor Control Schematics
GM1761205Courtesy of GENERAL MOTORS CORP.

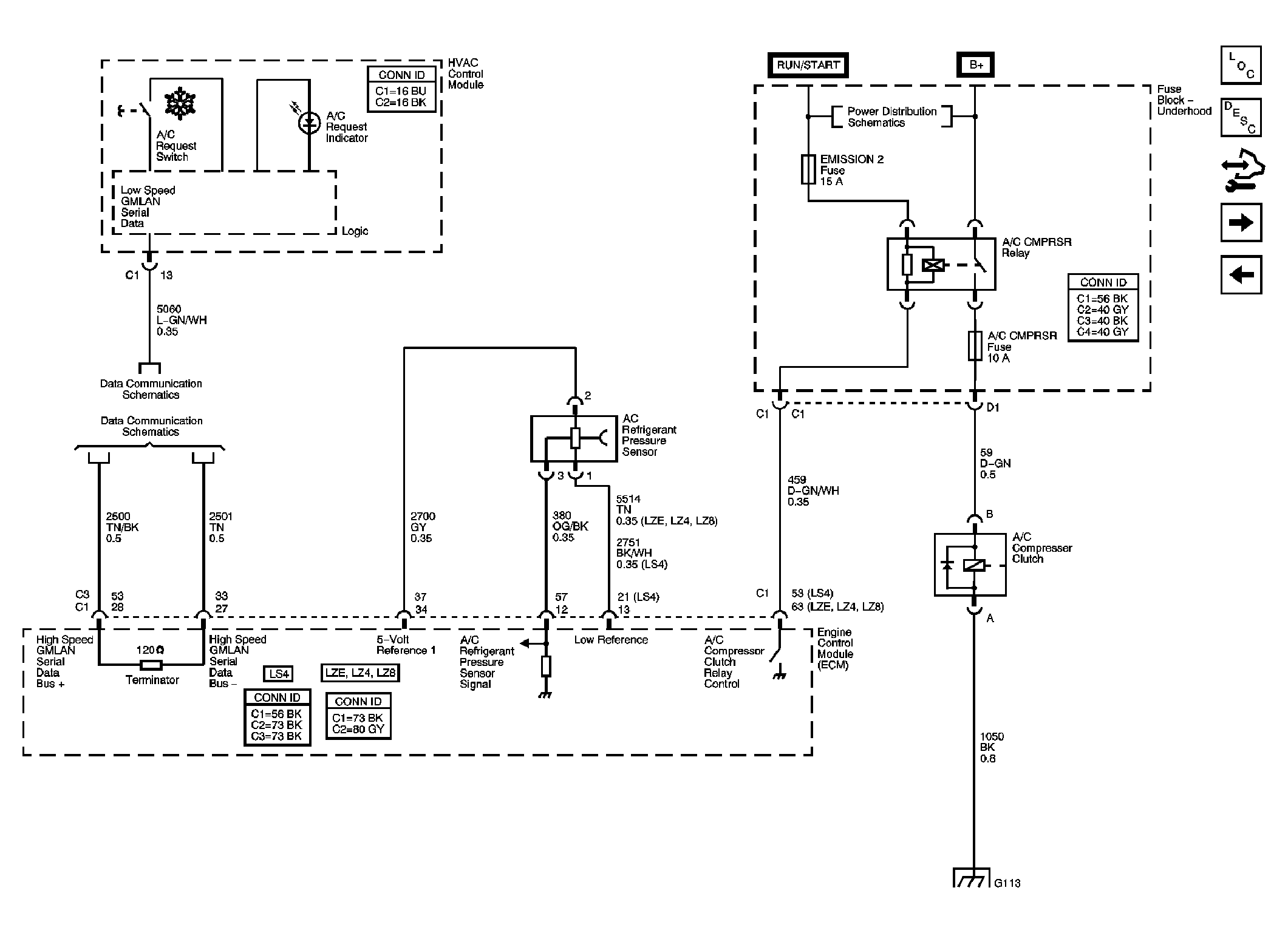

Fig 2: A/C Compressor Controls Schematics
GM1761209Courtesy of GENERAL MOTORS CORP.

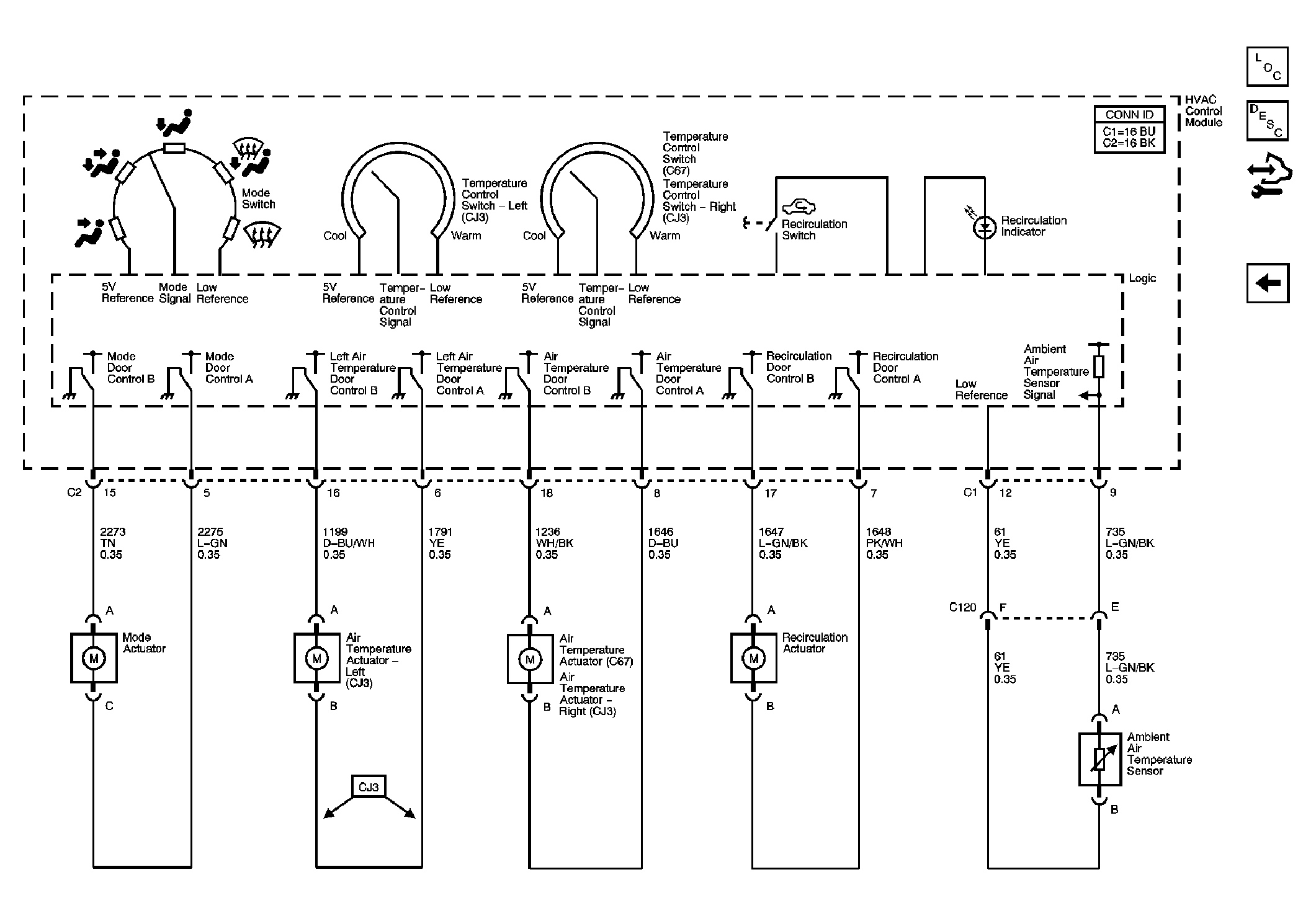

Fig 3: Mode and Air Temperature Controls Schematics
GM1761212Courtesy of GENERAL MOTORS CORP.
