Radiator Air Upper Baffle and Deflector Replacement

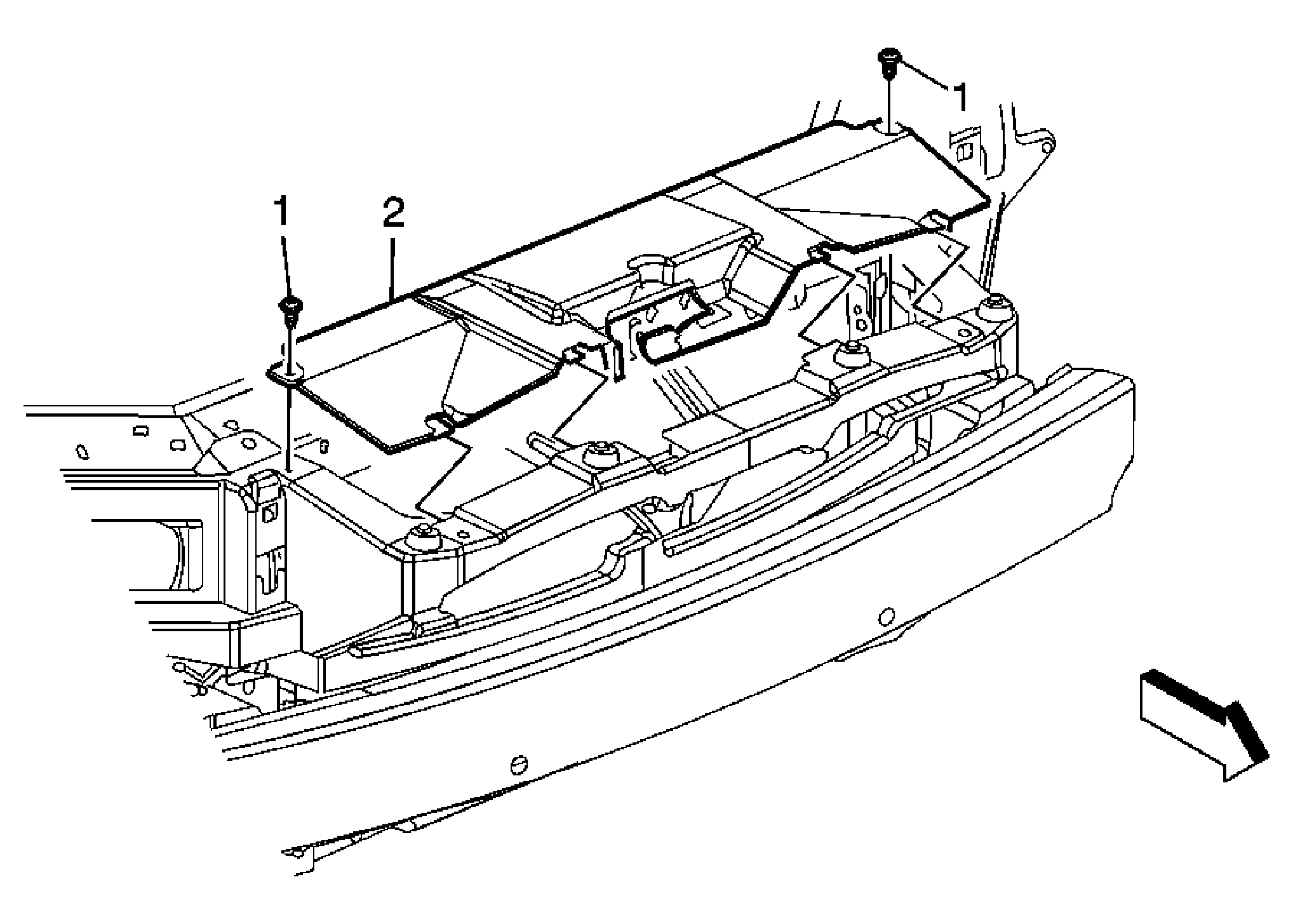

Fig 1: Identifying Upper Radiator Air Baffle & Deflector

Courtesy of GENERAL MOTORS CORP.

Radiator Air Upper Baffle and Deflector Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Screw, Radiator Air Deflector - Upper (Qty: 2) Tighten:  5 N.m (44 lb in)
2	Baffle, Radiator Air - Upper
