Power and Grounding Component Views

Fig 1: LF Of Engine Compartment
GM1653137Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 Brake Booster Vacuum Sensor (LS4)
3 Windshield Wiper Motor
4 Electronic Brake Control Module (EBCM)
5 A/C Refrigerant Pressure Sensor
6 Transmission Control Module (TCM)
7 Engine Control Module (ECM)
8 G101
9 Inflatable Restraint Front End Sensor - Left
Fig 2: Front Of Engine (LS4)
GM1591683Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G111
2 Starter Solenoid
3 C100
4 Starter
5 Cable Pro fuse
6 G113
Fig 3: Lower Front Of Engine (LZE, LZ4, LZ4)
GM1700485Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Manifold
2 Starter
3 Cable Pro Fuse (6J1)
4 A/C Compressor Clutch
Fig 4: G111, G113 & G115 (LZE, LZ4, LZ9)
GM1706125Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 G115
3 G111
4 G113
Fig 5: Front Of Engine (LS4)
GM1568641Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood C1
2 S109
3 C108
4 C101
5 C111
6 Electronic Brake Control Module (EBCM) C1
7 Engine Control Module (ECM) C3
8 Engine Control Module (ECM) C2
9 Engine Control Module (ECM) C1
10 S101
11 G113
12 G111
13 G115

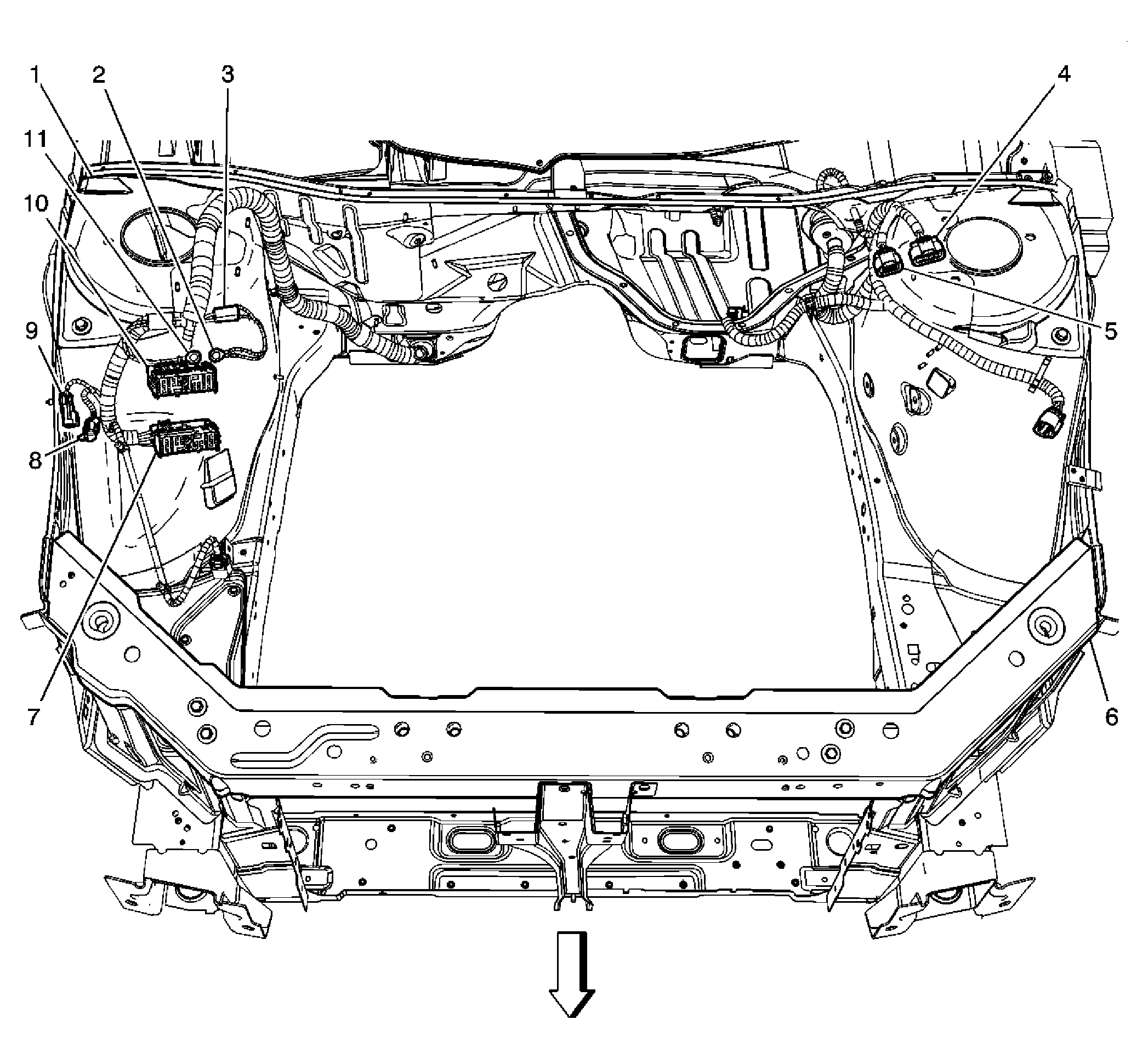

Fig 6: I/P Harness - Engine Compartment
GM1568614Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RF Strut Tower
2 Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)
3 Fusible Links (9C1, 9C3)
4 C111
5 C101
6 Radiator Core Support
7 Fuse Block - Underhood C2
8 C123 (9C1, 9C3)
9 C105
10 Fuse Block - Underhood C1
11 Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)
Fig 7: RF Of Engine Compartment
GM1653146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Generator
3 Brake Fluid Level Switch
4 Battery
5 Inflatable Restraint Front End Sensor - Right
6 G100
7 Horn Assembly
8 Windshield Washer Fluid Container
9 Windshield Washer Fluid Level Switch
10 Windshield Washer Fluid Pump
11 Battery Current Sensor
12 G102
Fig 8: I/P Harness - Front Of I/P Carrier
GM1568592Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Carrier
2 G202
3 G201
4 G200
5 G204 (9C1, 9C3)
6 C210
7 Spot Lamp - Right Connector (9C1, 9C3)
8 Fuse Block - I/P C2
9 C360 (9C1 and 9C3)
10 C362 (9C1 and 9C3)
11 C200
12 C267 (9C1 and 9C3)
13 C266 (9C1 and 9C3)
14 C297 (9C1 and 9C3)
15 HVAC Control Module C2
16 Splice Pack SP205
17 Splice Pack SP 206 and Splice Pack SP207
18 C201
19 Data Link Connector (DLC)
20 C203
21 C250

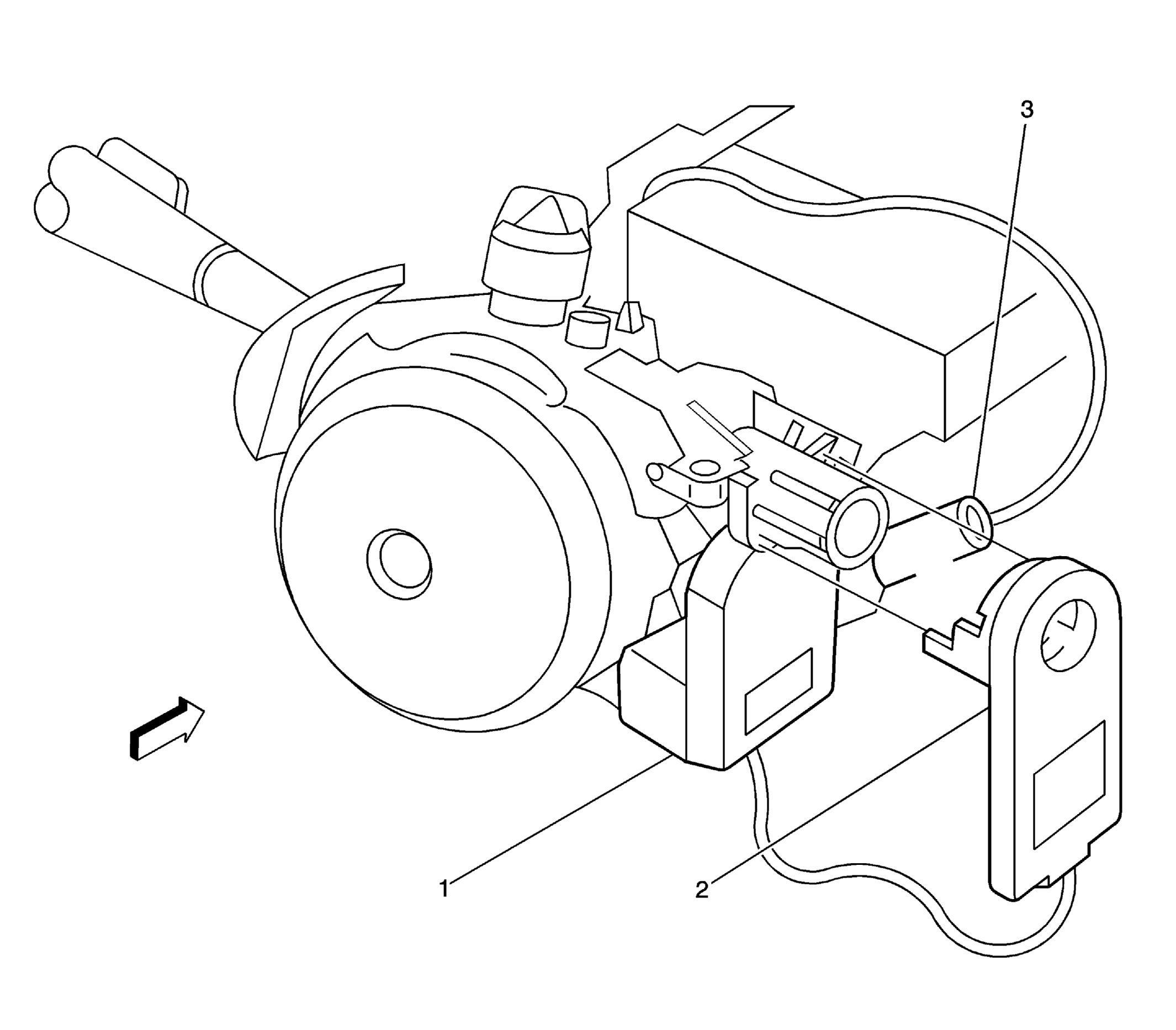

Fig 9: Left Front Of Passenger Compartment, In Steering Column Component View
GM525021Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Theft Deterrent Exciter Module
3 Ignition Lock Cylinder Control Actuator
Fig 10: I/P Harness - Rear Of I/P Carrier
GM1568600Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S282
2 S203
3 S239
4 S250
5 S218
6 I/P Carrier
7 S259
8 S269
9 Fuse Block - SEO
Fig 11: Identifying G301
GM1653131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G301
2 Dash Panel
3 Floor Pan
Fig 12: Right Front Of Passenger Compartment
GM1700252Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dash Panel
2 Fuse Block - I/P
3 C303
4 G302

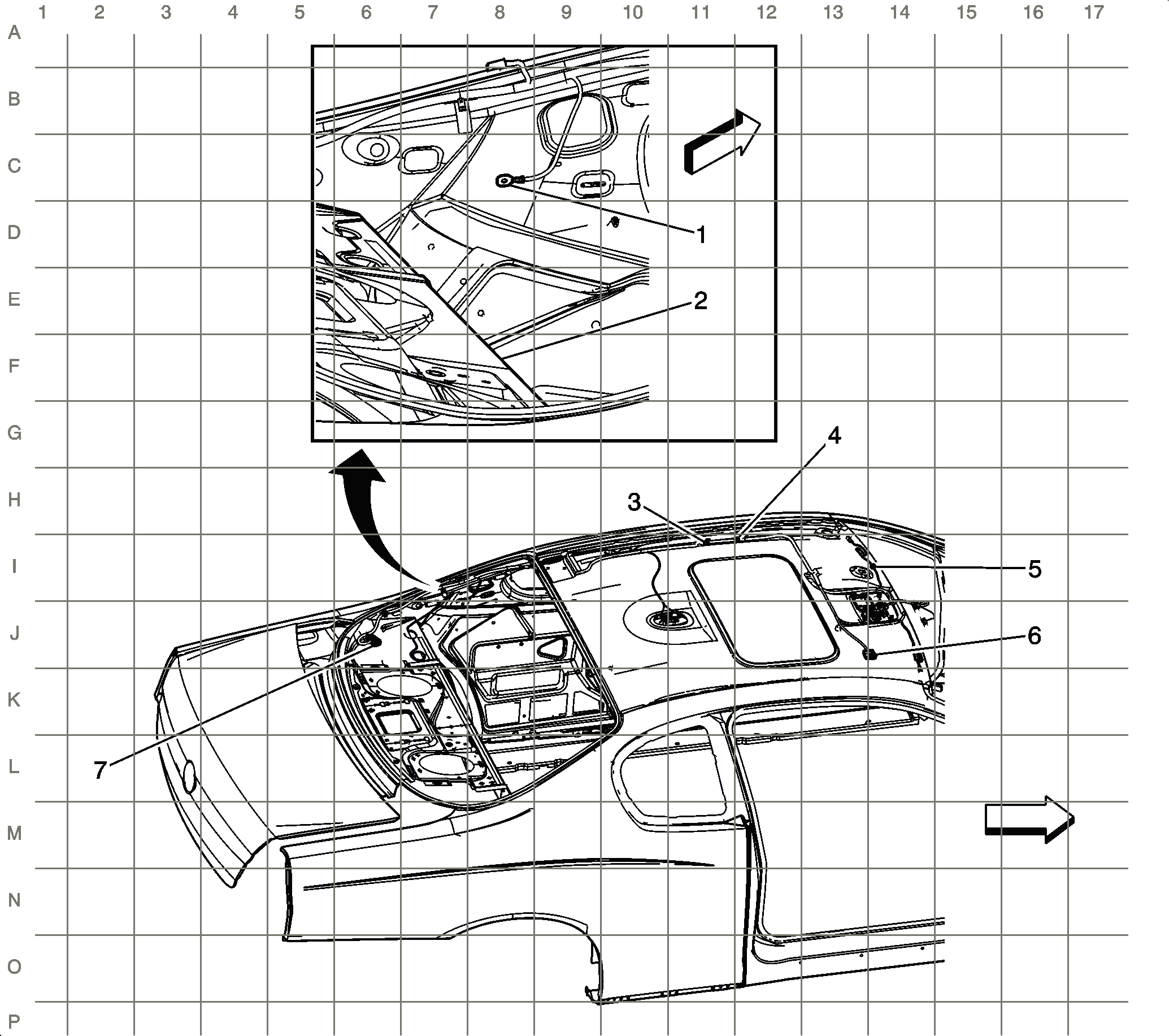

Fig 13: Sunroof & Headliner Harness (CF5)
GM1568647Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G403
2 Rear Shelf
3 S393
4 S390
5 S364
6 C398 (CF5)
7 C490
Fig 14: Identifying G304
GM1653147Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Side C Pillar
2 G404
3 Rear Window Shelf
Fig 15: Right Side Of Luggage Compartment
GM1700233Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 Junction Block - Rear (6J1)
3 Digital Radio Receiver (U2K)
