Harness Routing Views

Fig 1: View Of Forward Lamp harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood C3
2	RF Strut Tower
3	C120
4	C141
5	G101
6	C122 (9C1,9C3 w/o 6J7)
7	S124
8	G100
9	C142

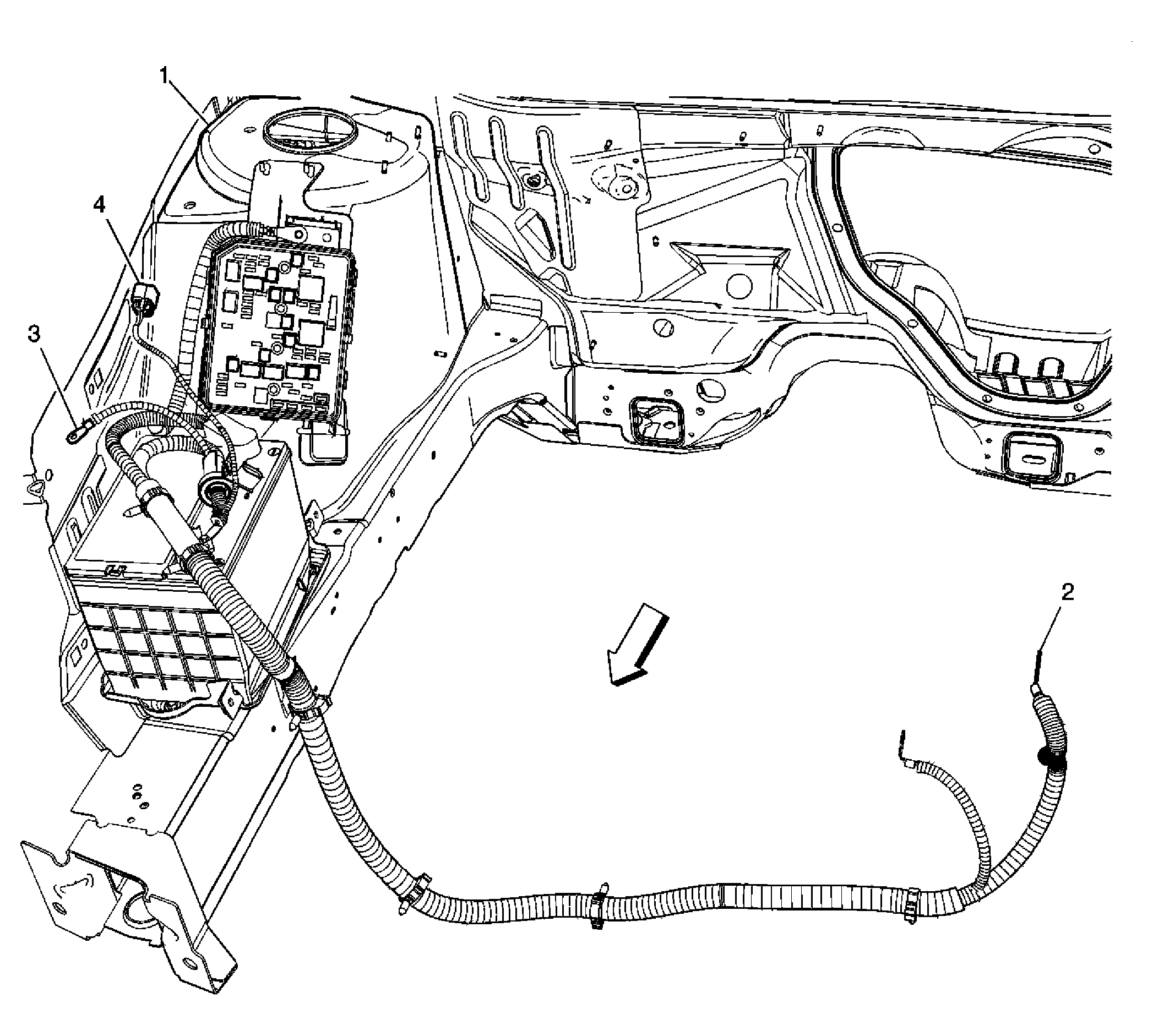

Fig 2: View Of Battery Cable Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Strut Tower
2	G111
3	G102
4	C105

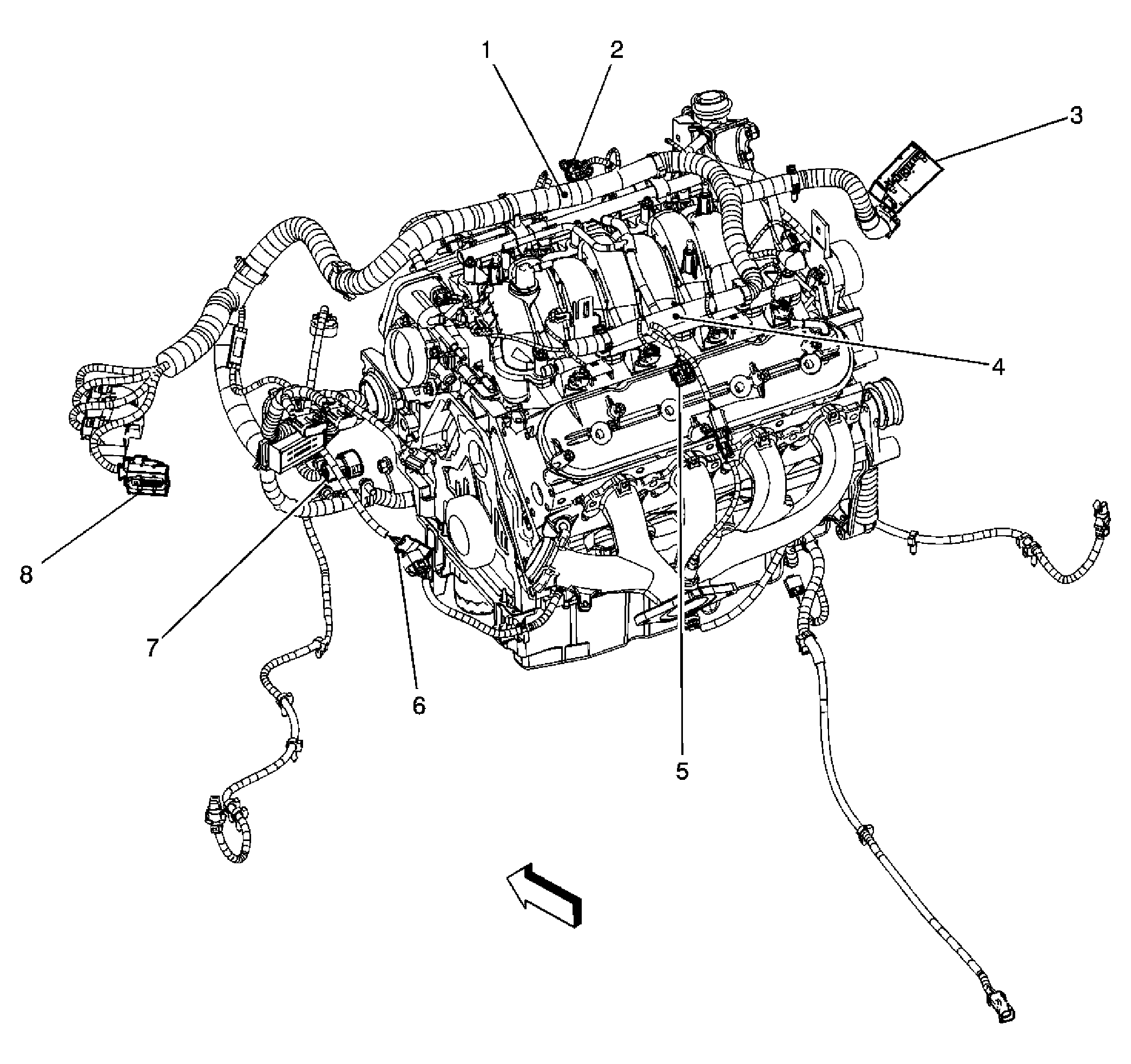

Fig 3: View Of Front of the Engine (LS4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood C1
2	S109
3	C108
4	C101
5	C111
6	Electronic Brake Control Module (EBCM) C1
7	Engine Control Module (ECM) C3
8	Engine Control Module (ECM) C2
9	Engine Control Module (ECM) C1
10	S101
11	G113
12	G111
13	G115

Fig 4: View Of Rear of the Engine (LS4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S108
2	C107
3	Fuse Block - Underhood C1
4	S109
5	C108
6	C116
7	C100
8	Transmission Control Module (TCM) Connector

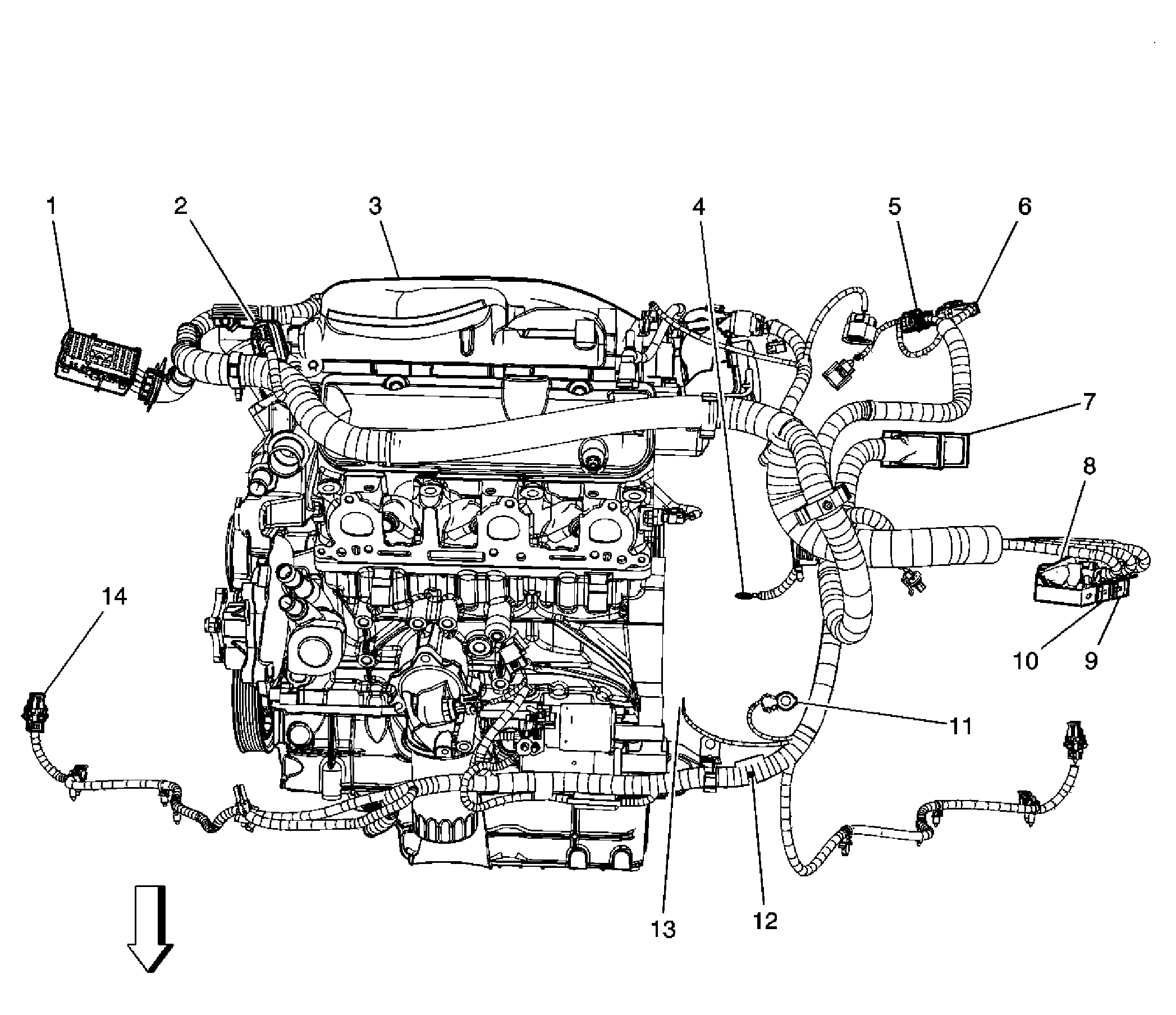

Fig 5: View Of Front of the Engine (LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood C1
2	C102
3	Intake Manifold
4	G115
5	C101
6	C111
7	Electronic Brake Control Module (EBCM)
8	Engine Control Module (ECM) C1
9	Engine Control Module (ECM) C3
10	Engine Control Module (ECM) C2
11	G113
12	S101
13	G111
14	Wheel Speed Sensor (WSS) - RF

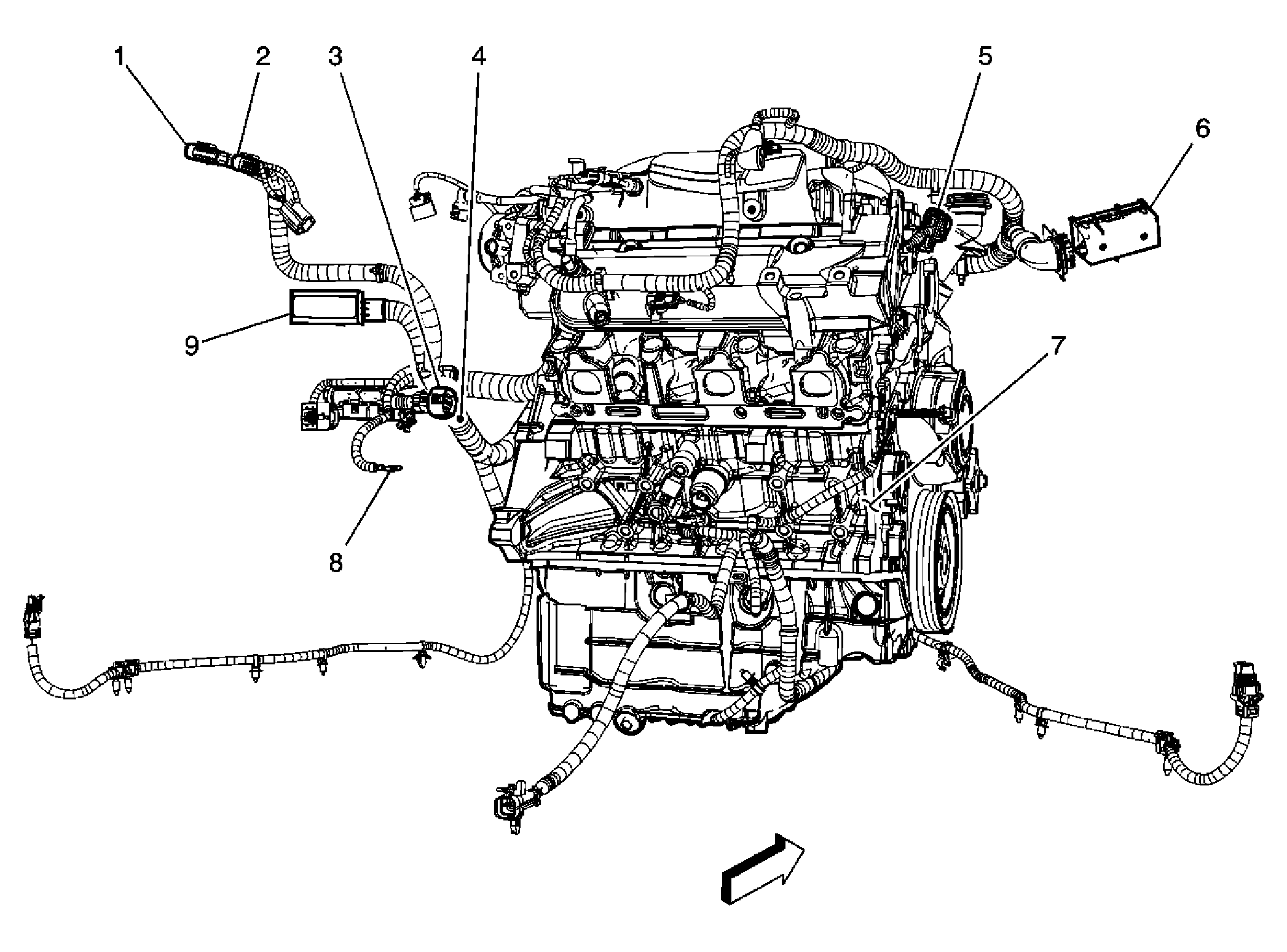

Fig 6: View Of Rear Of Engine (LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C111
2	C101
3	C100
4	S105
5	C102
6	Fuse Block - Underhood C1 Connector
7	Engine Block
8	G115
9	Electronic Brake Control Module (EBCM) Connector

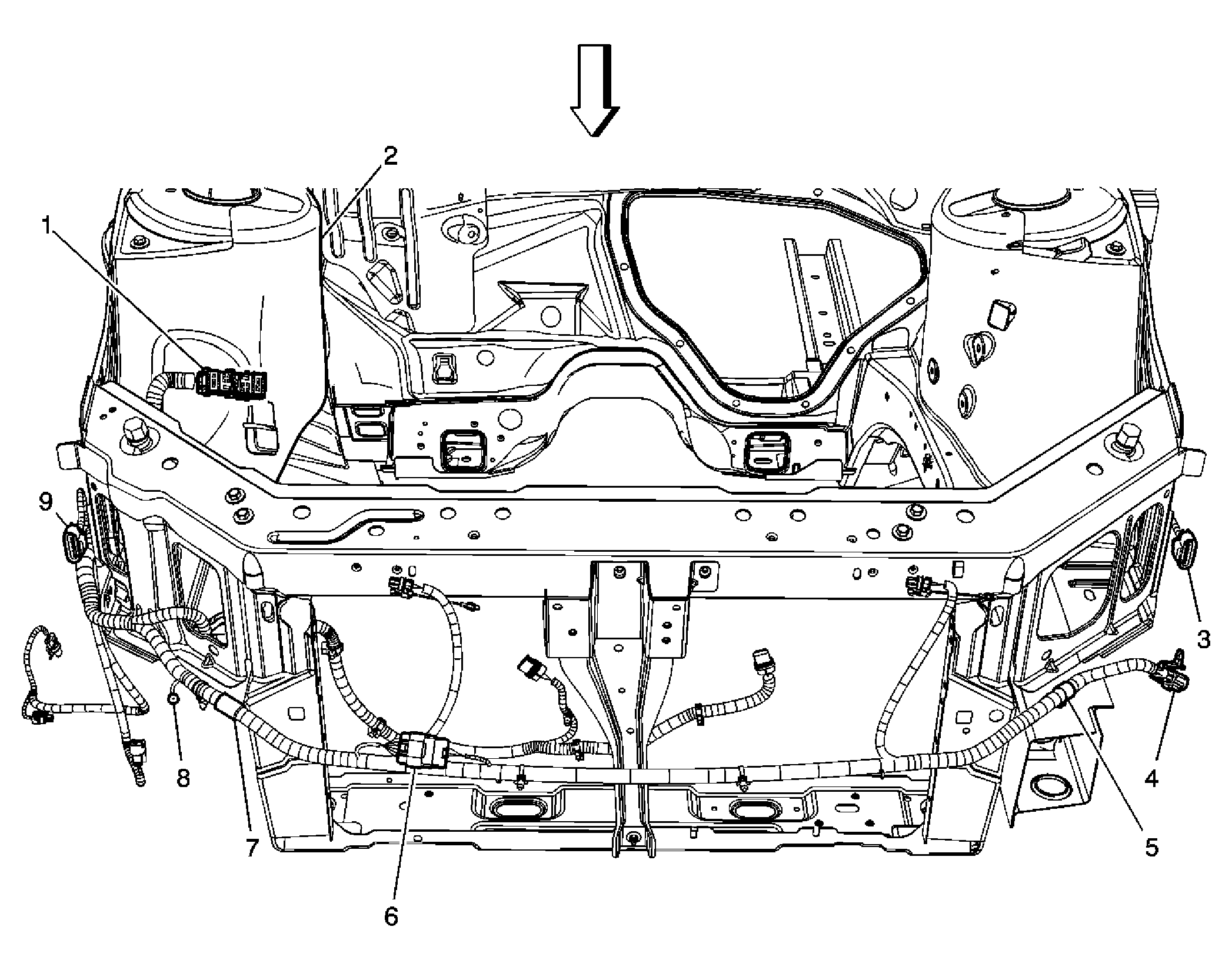

Fig 7: View Of I/P Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Strut Tower
2	Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)
3	Fusible Links (9C1, 9C3)
4	C111
5	C101
6	Radiator Core Support
7	Fuse Block - Underhood C2
8	C123 (9C1, 9C3)
9	C105
10	Fuse Block - Underhood C1
11	Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)

Fig 8: View Of I/P Harness - Front Of I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	G202
3	G201
4	G200
5	G204 (9C1, 9C3)
6	C210
7	Spot Lamp - Right Connector (9C1, 9C3)
8	Fuse Block - I/P C2
9	C360 (9C1 and 9C3)
10	C362 (9C1 and 9C3)
11	C200
12	C267 (9C1 and 9C3)
13	C266 (9C1 and 9C3)
14	C297 (9C1 and 9C3)
15	HVAC Control Module C2
16	Splice Pack SP205
17	Splice Pack SP 206 and Splice Pack SP207
18	C201
19	Data Link Connector (DLC)
20	C203
21	C250

Fig 9: View Of I/P Harness - Rear Of I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S282
2	S203
3	S239
4	S250
5	S218
6	I/P Carrier
7	S259
8	S269
9	Fuse Block - SEO

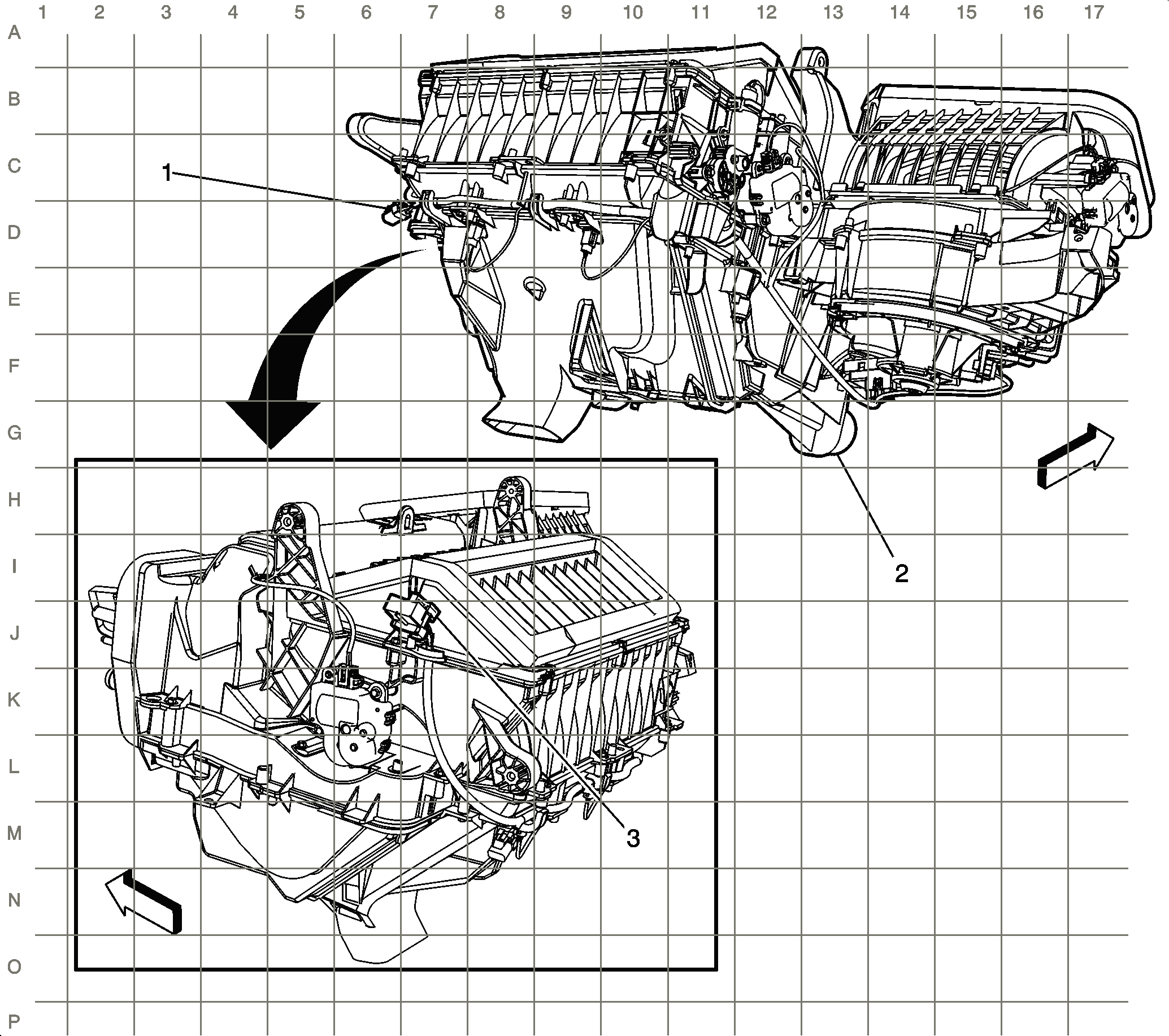

Fig 10: View Of HVAC Module Wiring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C210
2	HVAC Module
3	HVAC Control Module - C2

Fig 11: Exploded View Of Lower Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	C223 - Taped to Harness (9C1,9C3)
3	C250
4	C203
5	Terminator Resistor-Taped to Harness (w/o UE1)

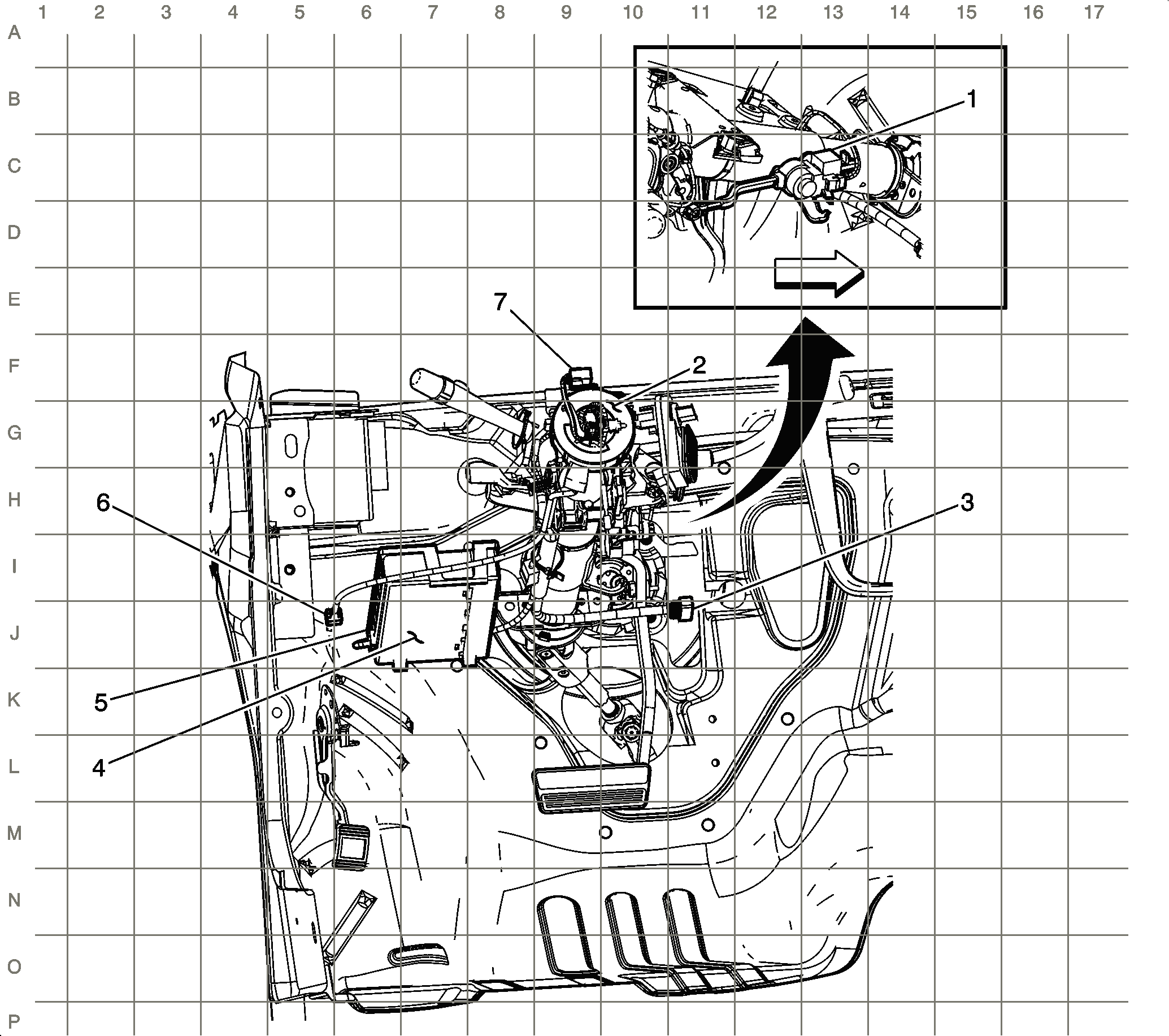

Fig 12: Identifying Lower Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Lock Cylinder Control Actuator
2	Inflatable Restraint Steering Wheel Module Coil
3	C201
4	Body Control Module (BCM)
5	BCM C1
6	C250
7	C277

Fig 13: View Of Sunroof & Headliner Harness (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G403
2	Rear Shelf
3	S393
4	S390
5	S364
6	C398 (CF5)
7	C490

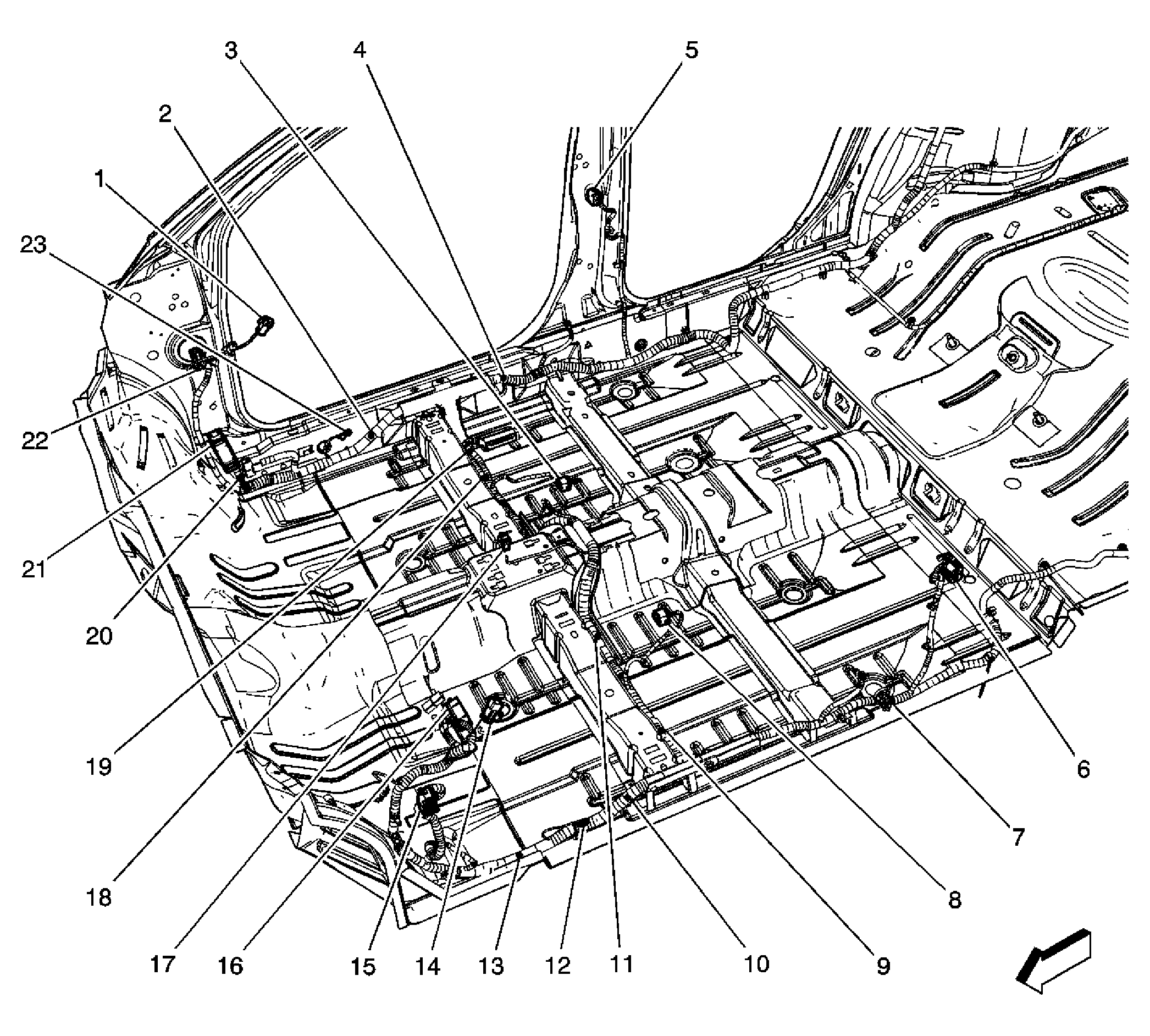

Fig 14: Body Harness - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module Connector
2	S350
3	C313
4	S375
5	C356 (Sedan)
6	C355 (Sedan)
7	S332
8	C311
9	S303
10	S308
11	S359
12	G301
13	S307
14	C250
15	C301
16	C203
17	C340
18	S315
19	S314
20	C360 (9C1, 9C3)
21	C200
22	C302
23	G302

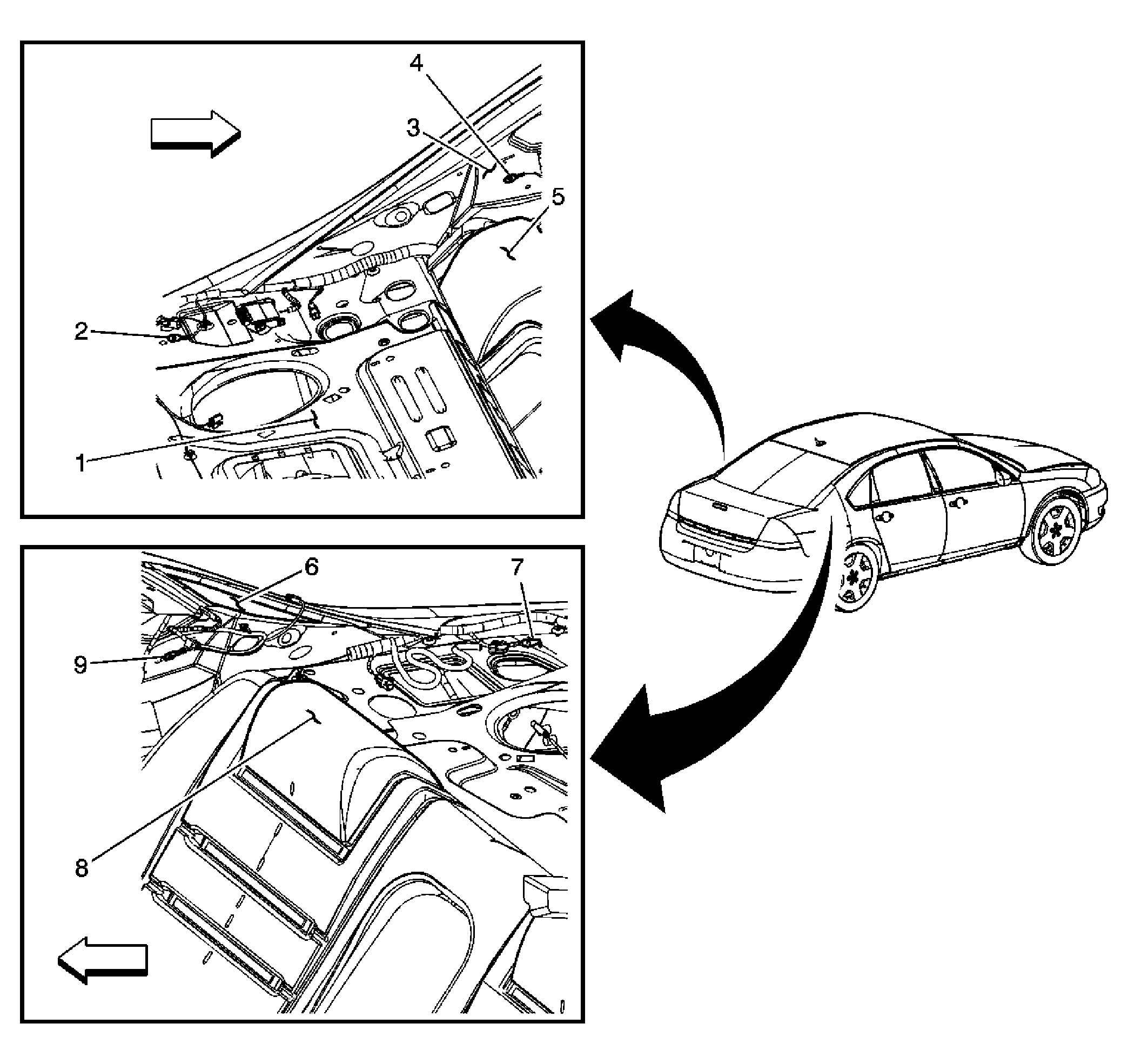

Fig 15: Exploded View Of Rear Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Shelf
2	G403 (Sedan)
3	Quarter Inner Upper Panel (Coupe)
4	G403 (Coupe)
5	Rear Seat Back Cushion
6	Quarter Inner Upper Panel (Coupe)
7	G404 (Sedan)
8	Rear Seat Back Cushion
9	G404 (Coupe)

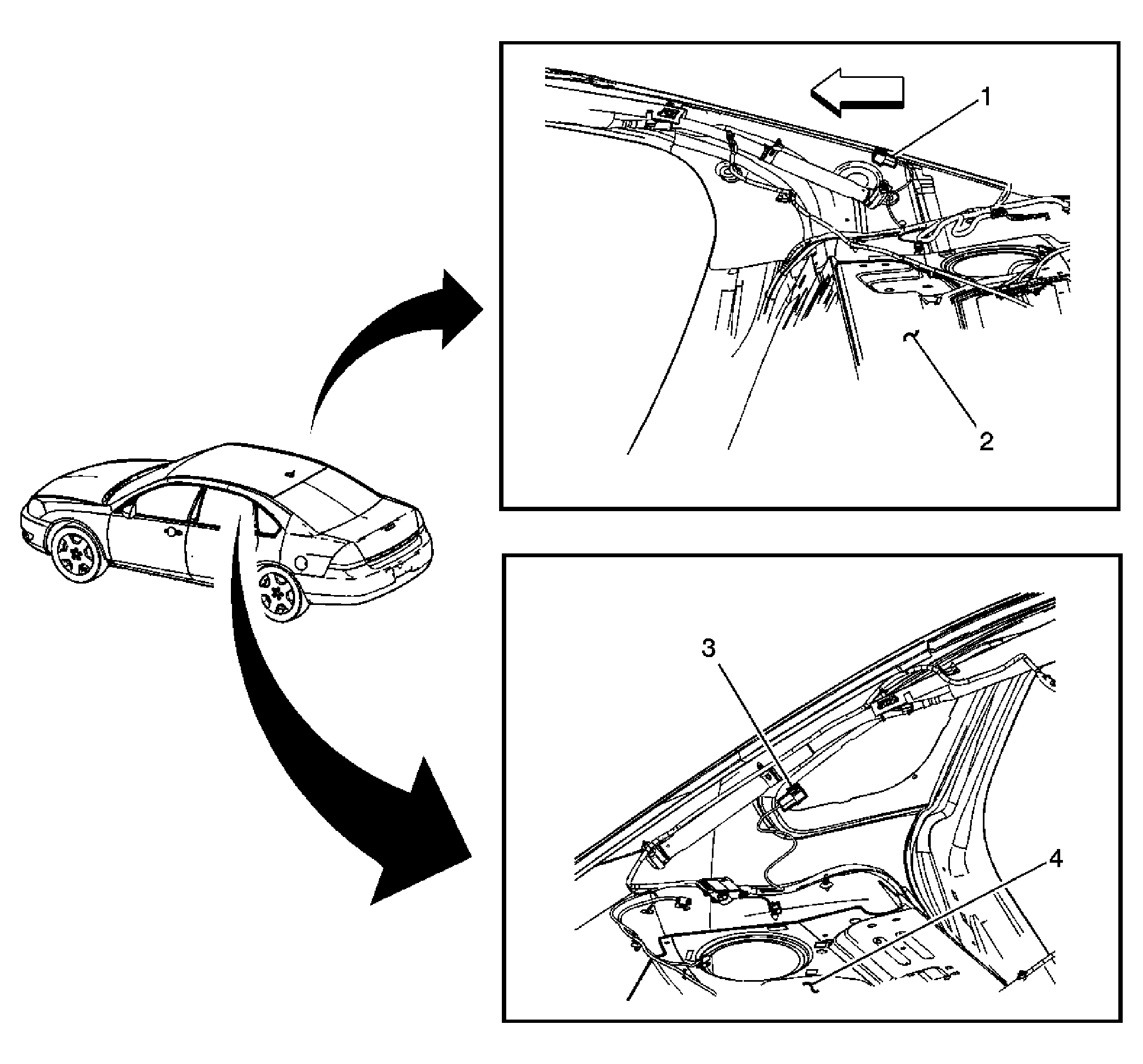

Fig 16: Exploded View Of Passenger Compartment-Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C414
2	Rear Shelf
3	C412
4	Rear Shelf

Fig 17: Exploded View Of Passenger Compartment - Rear Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	C322 (9C1,9C3)

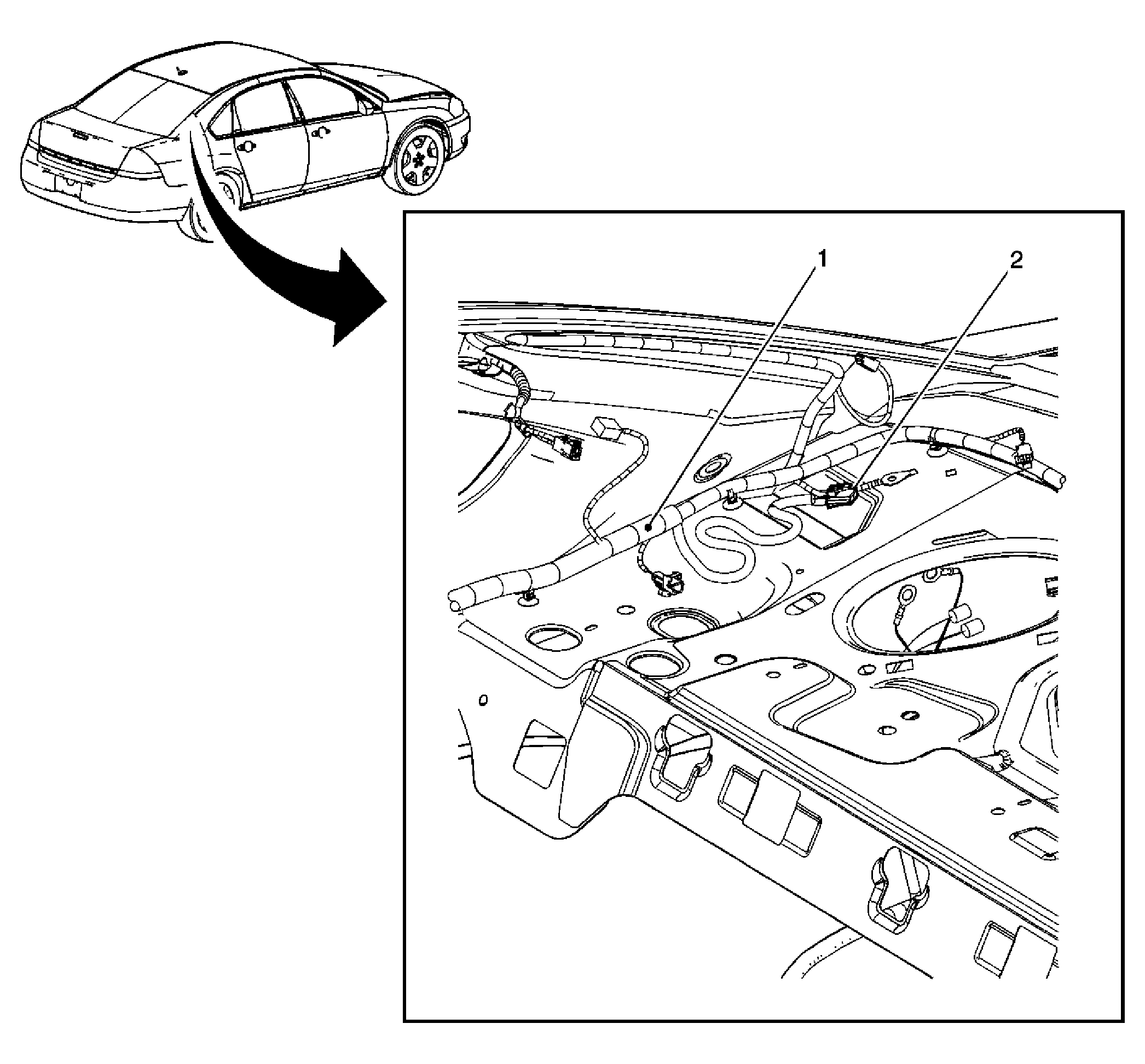

Fig 18: View Of Body Harness - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S324
2	G404
3	C406
4	C405
5	G403
6	C490

Fig 19: View Of Front Seat Airbag Inlines

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch-Passenger
2	Passenger
3	C314
4	Seat Belt Switch-Driver
5	Inflatable Restraint Side Impact Module-Left
6	C312
7	Driver Seat
8	Inflatable Restraint Side Impact Module-Right

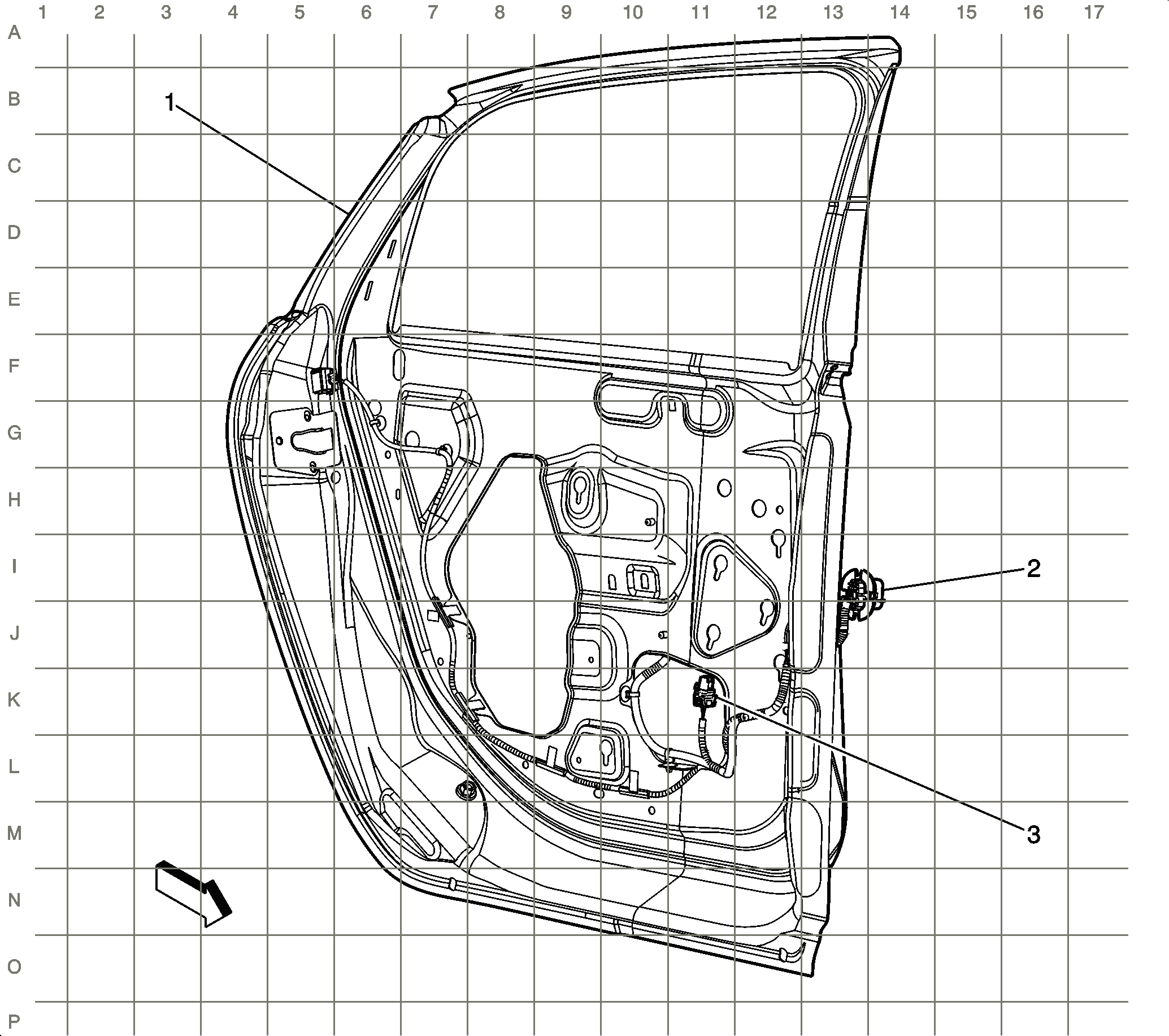

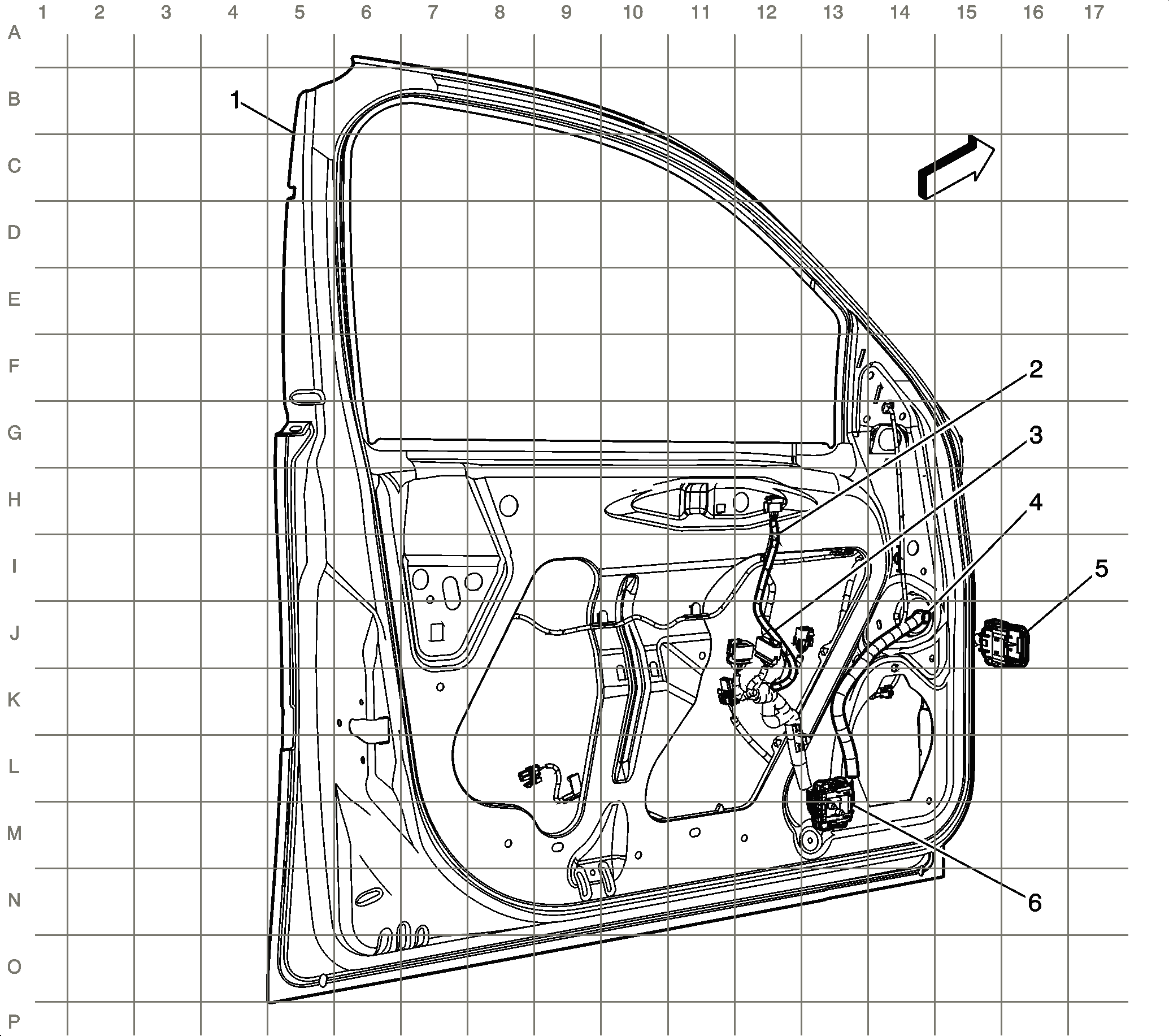

Fig 20: View Of Driver Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	S506
3	S504
4	S505
5	C301
6	C503

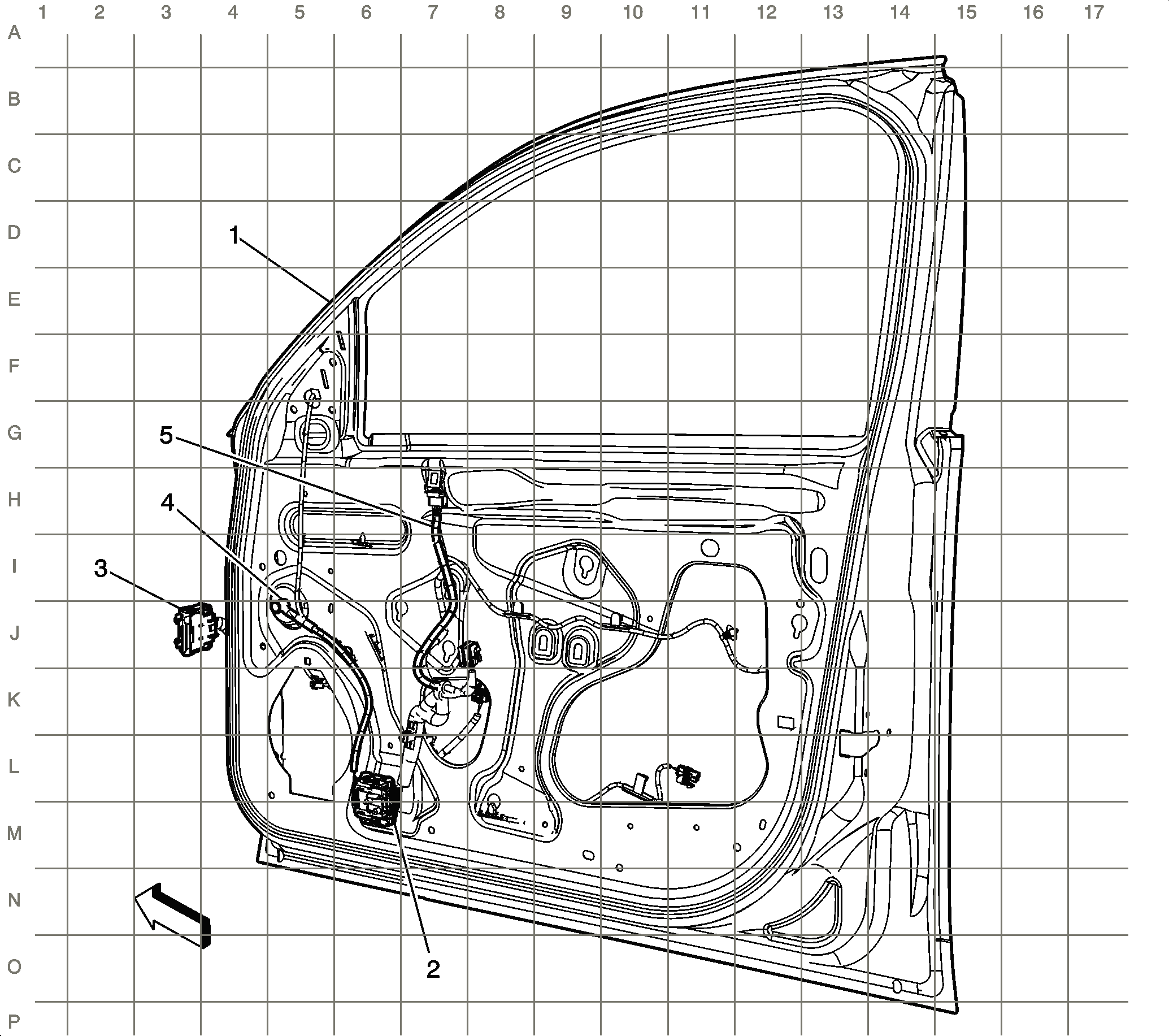

Fig 21: View Of Passenger Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	C604
3	C302
4	S604
5	S608

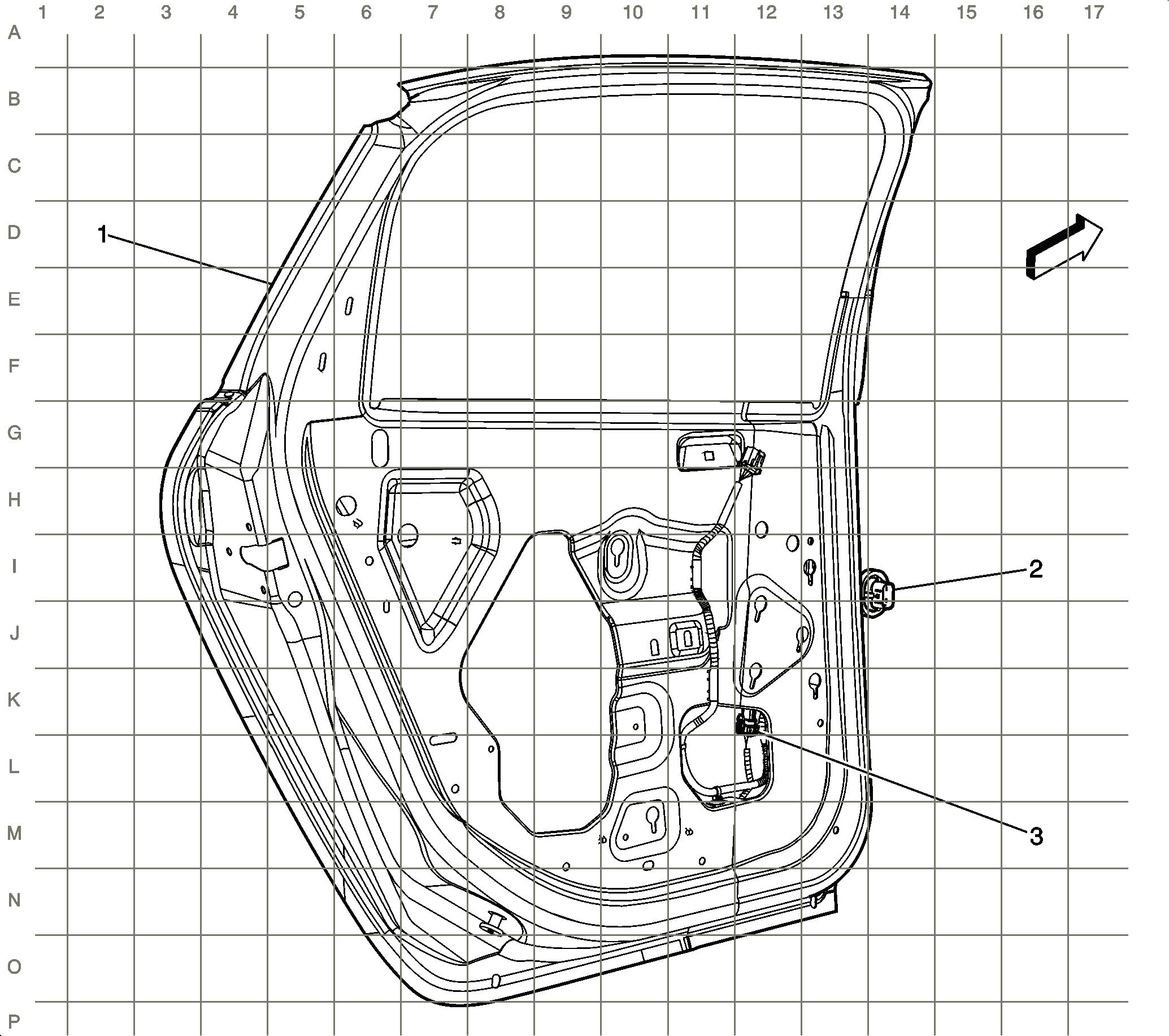

Fig 22: View Of Left Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	C355
3	Window Motor - LR Connector

Fig 23: View Of Right Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	C356
3	Window Motor - RR Connector

Fig 24: View Of Right Front Of Rear Compartment Component View (w/ T53)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C409
2	Emergency Vehicle Rear Compartment Lid Lamps Relay

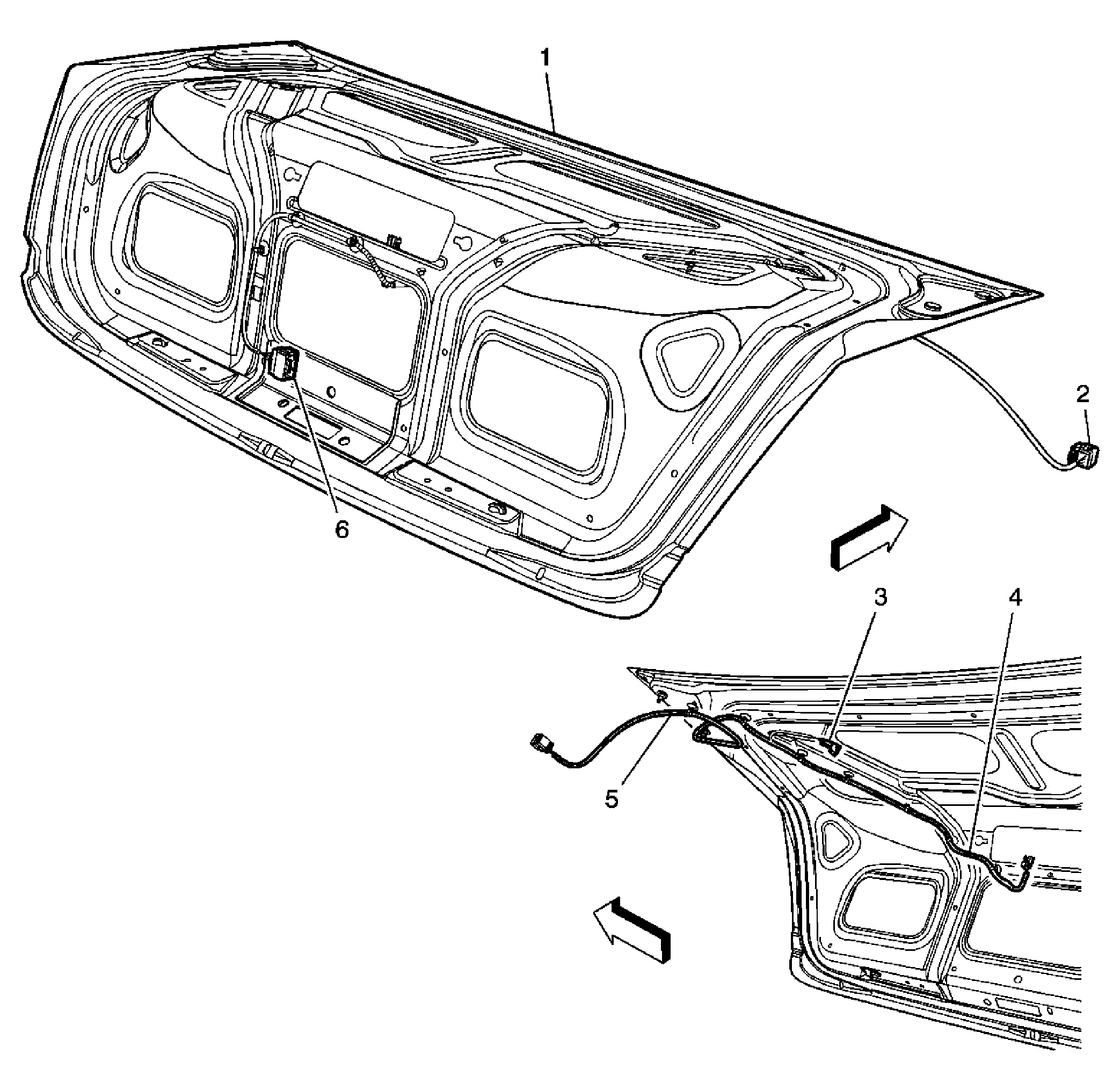

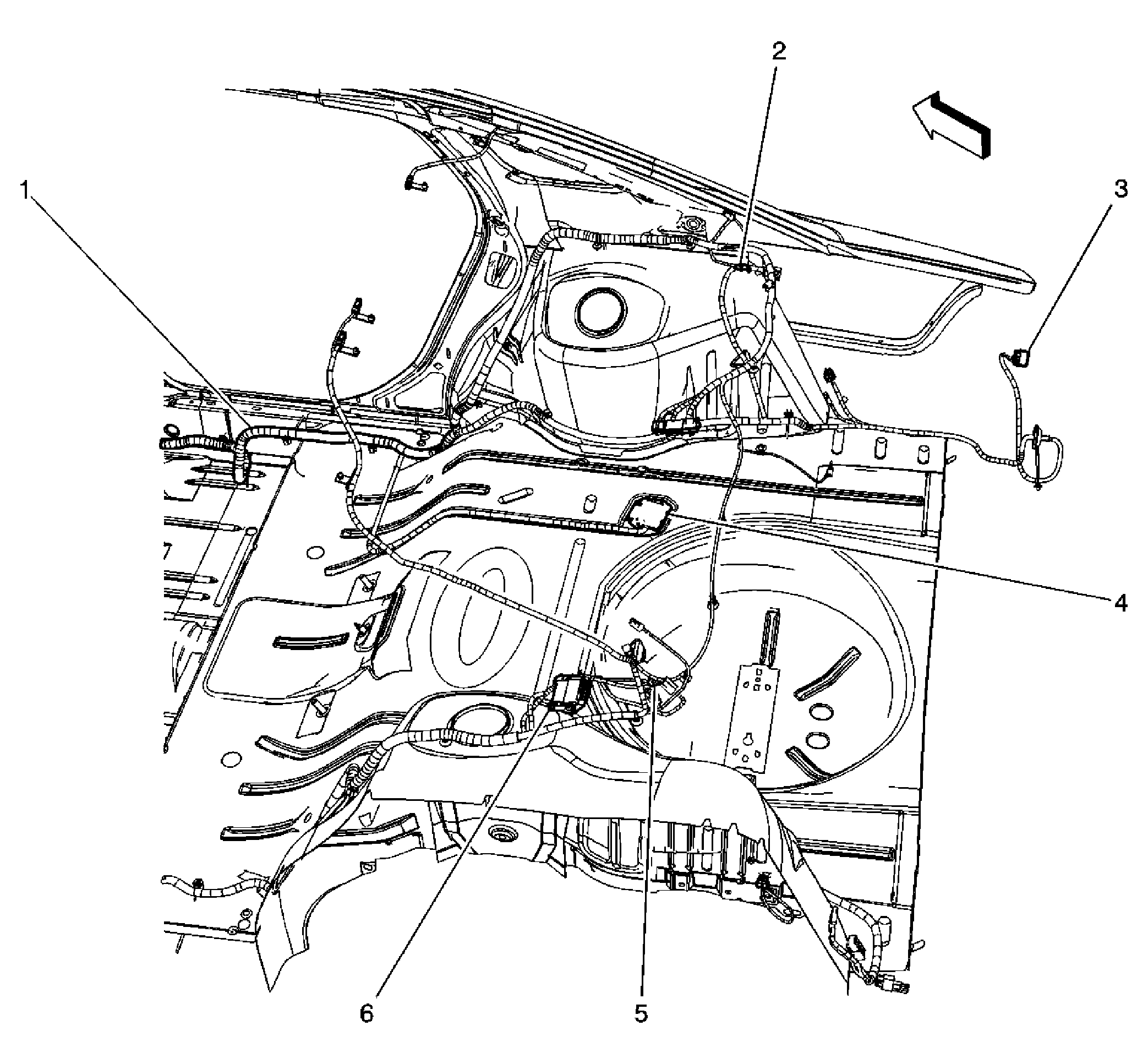

Fig 25: View Of Rear Compartment Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Deck Lid
2	C430 (Coupe)
3	C432 (9C1 and 9C3)
4	S901
5	S902
6	Rear Compartment Lid Release Actuator Connector

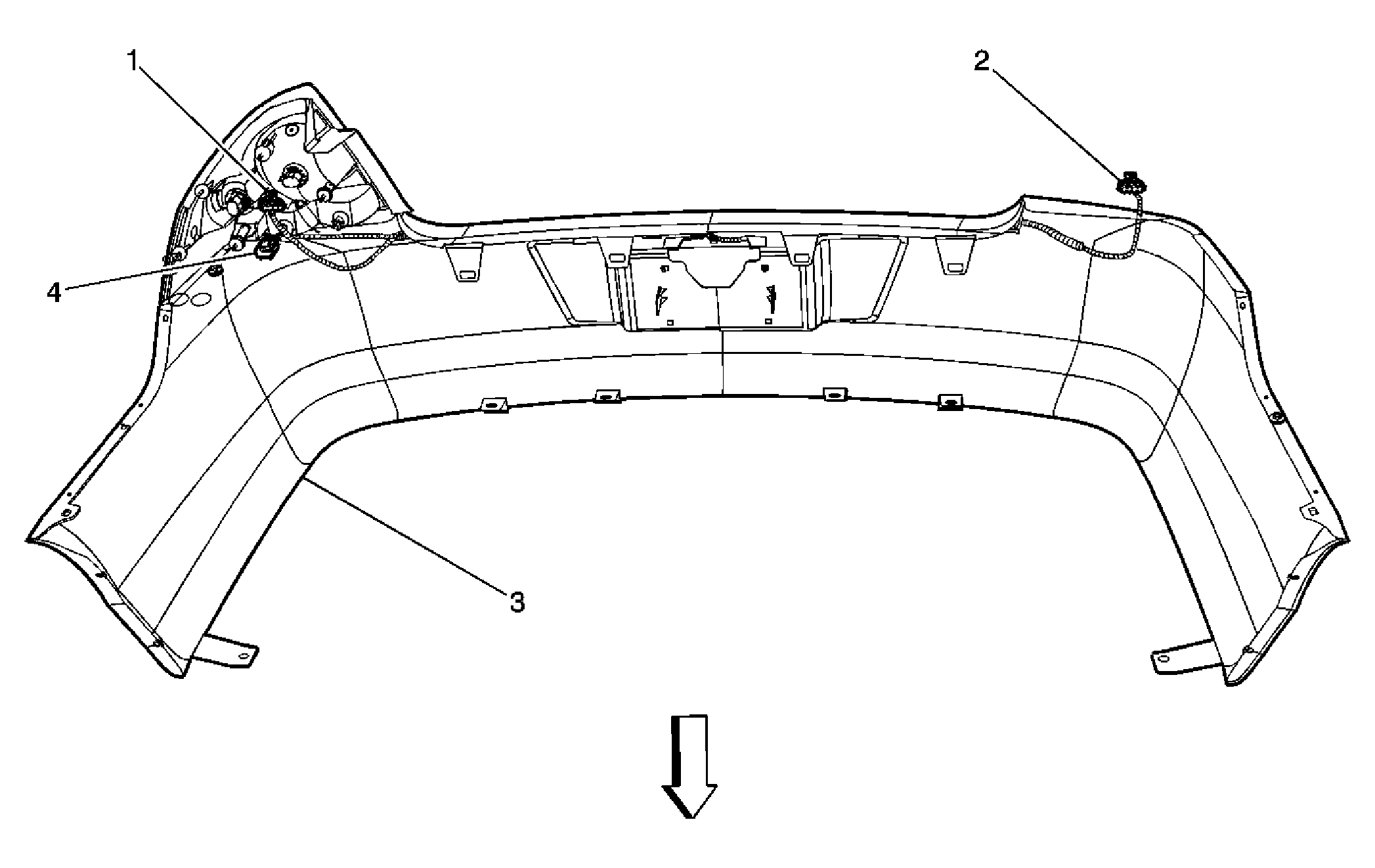

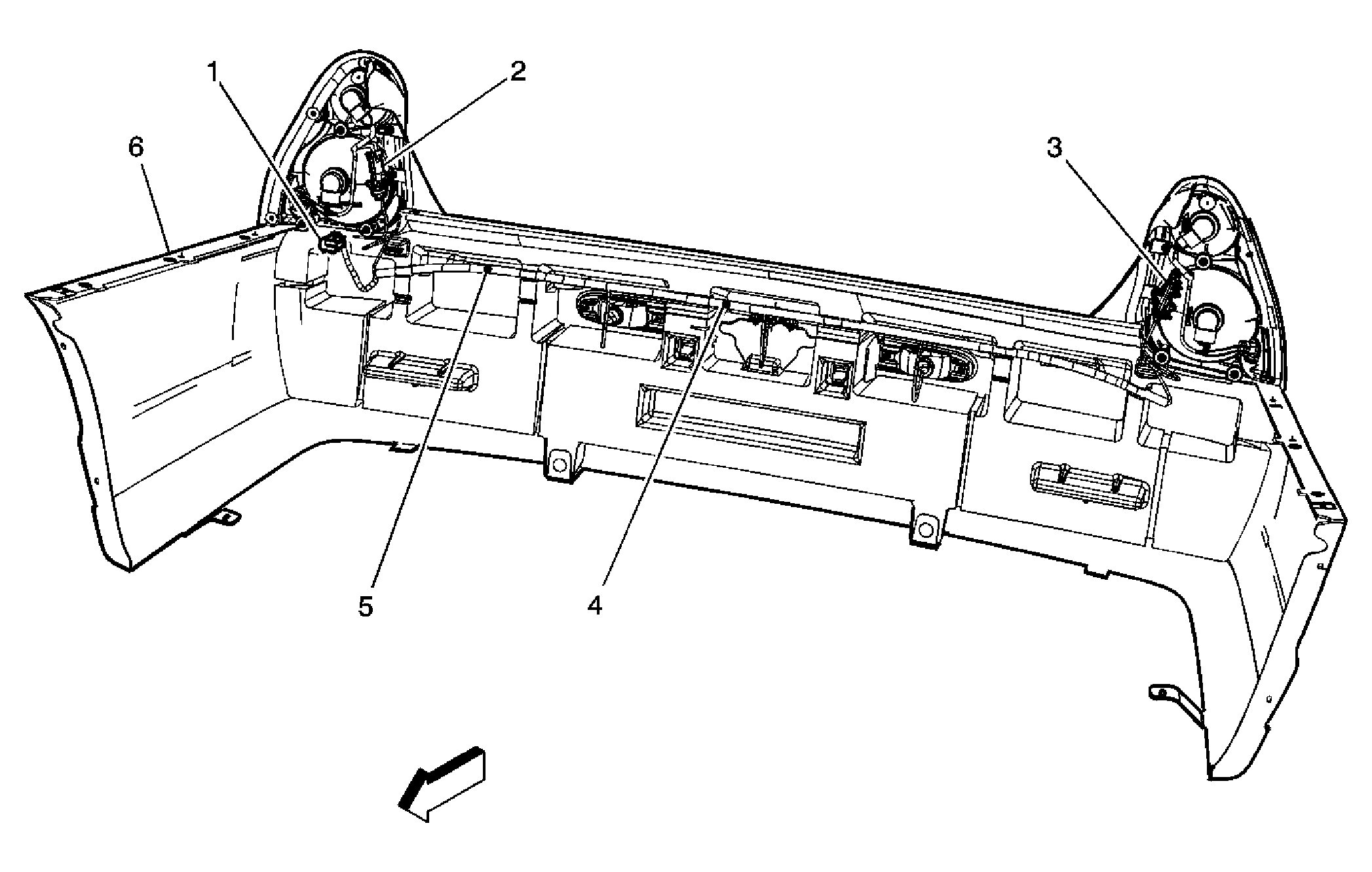

Fig 26: View Of Rear Fascia Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C402
2	C401
3	Rear Fascia
4	C406

Fig 27: Identifying Rear Fascia Harness (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C406
2	C402
3	C401
4	S485
5	S430
6	Rear Fascia
