Heated/Cooled Seat Schematics

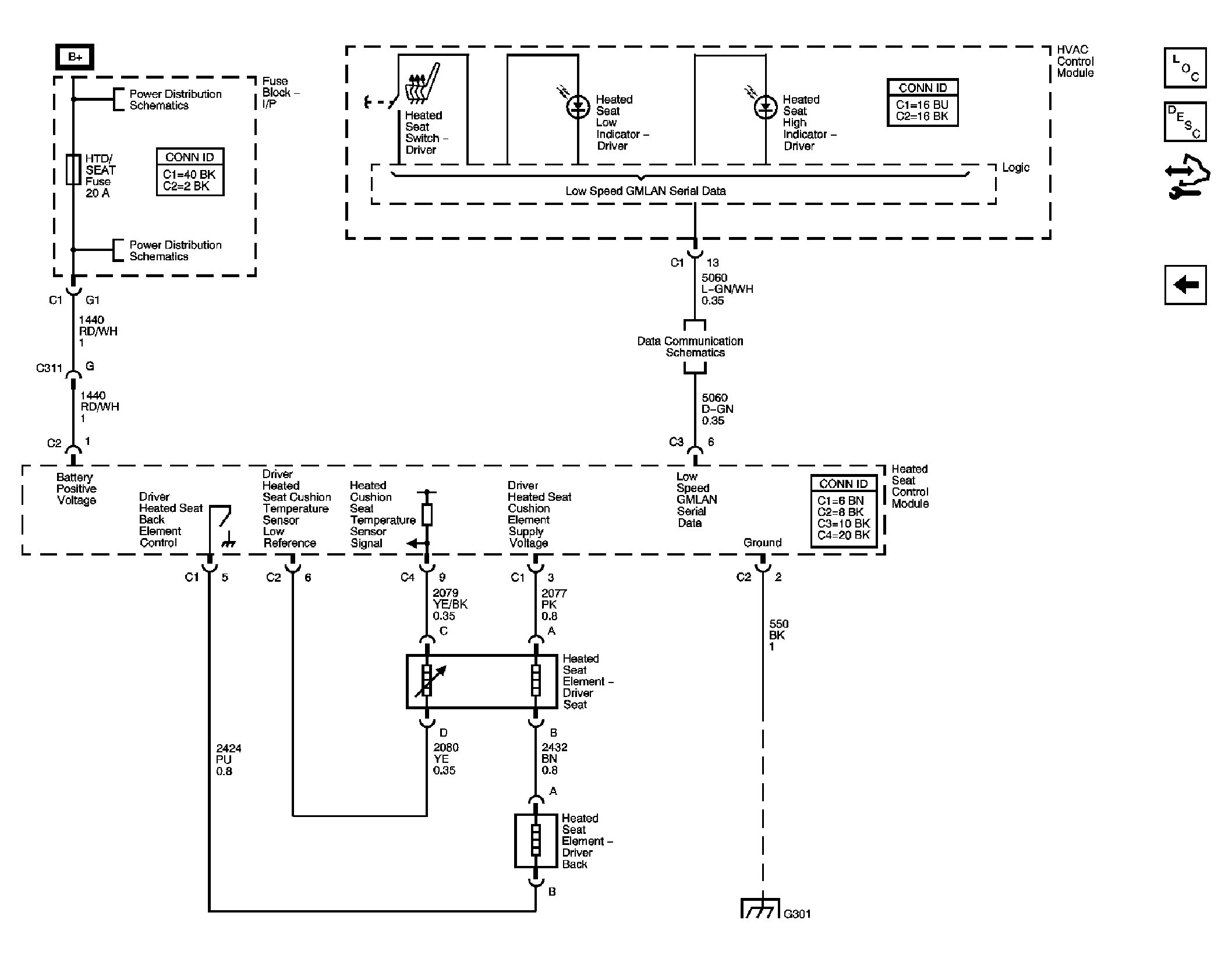

Fig 1: Heated/Cooled Seat (Driver Side) Schematics

GM1762133

Courtesy of GENERAL MOTORS CORP.

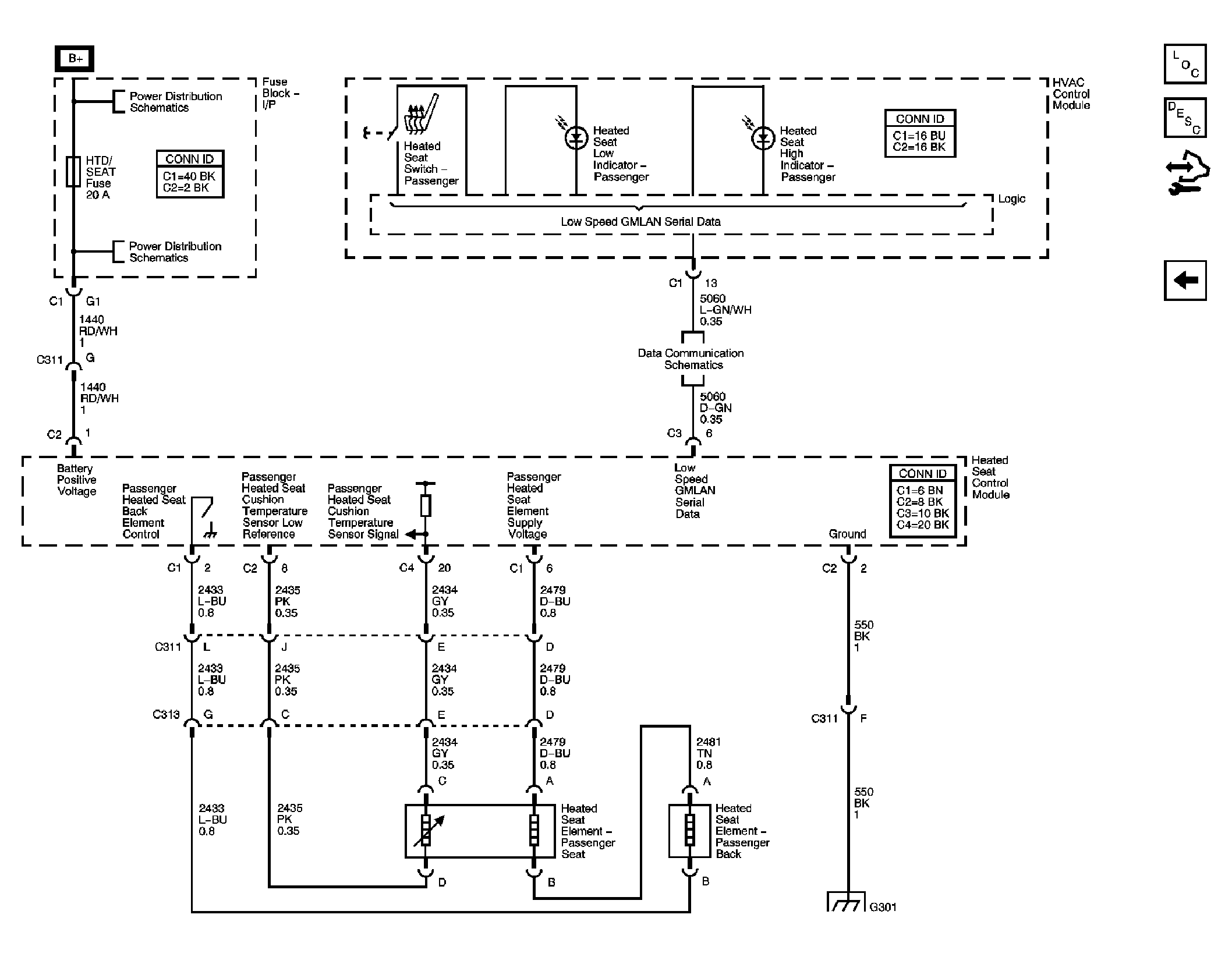

Fig 2: Heated/Cooled Seat (Passenger Side) Schematics

GM1762134

Courtesy of GENERAL MOTORS CORP.
