Seat Back Recliner Handle Replacement - Front (Monte Carlo)

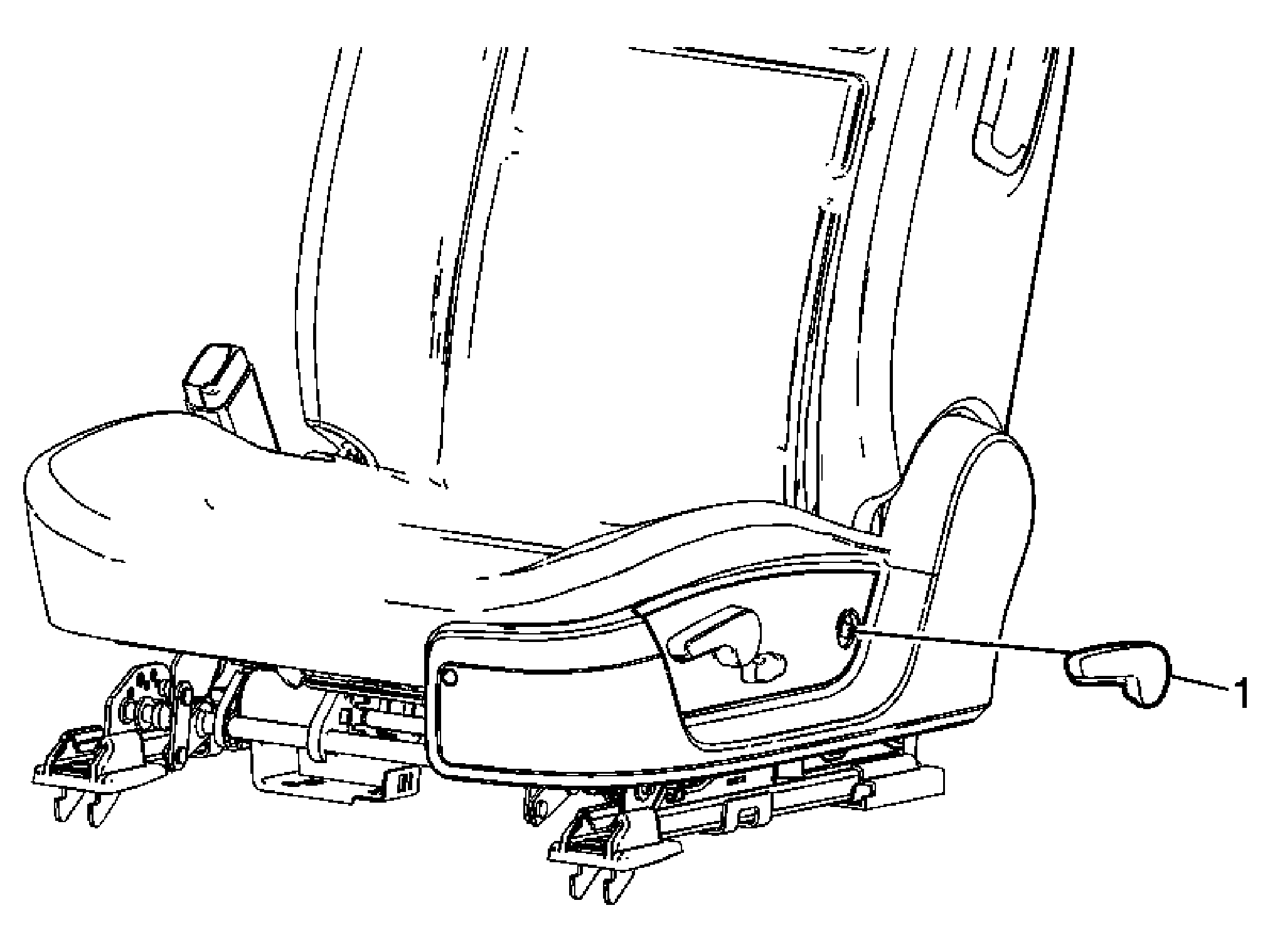

Fig 1: Identifying Front Seat Back Recliner Handle (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Seat Back Recliner Handle Replacement - Front (Monte Carlo)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Handle, Recliner Tip:  Using a flat-bladed tool, push the retainer clip downward and pull outward to release the handle.
