Upper Extension Trim Panel Replacement
Courtesy of GENERAL MOTORS CORP. Upper Extension Trim Panel Replacement

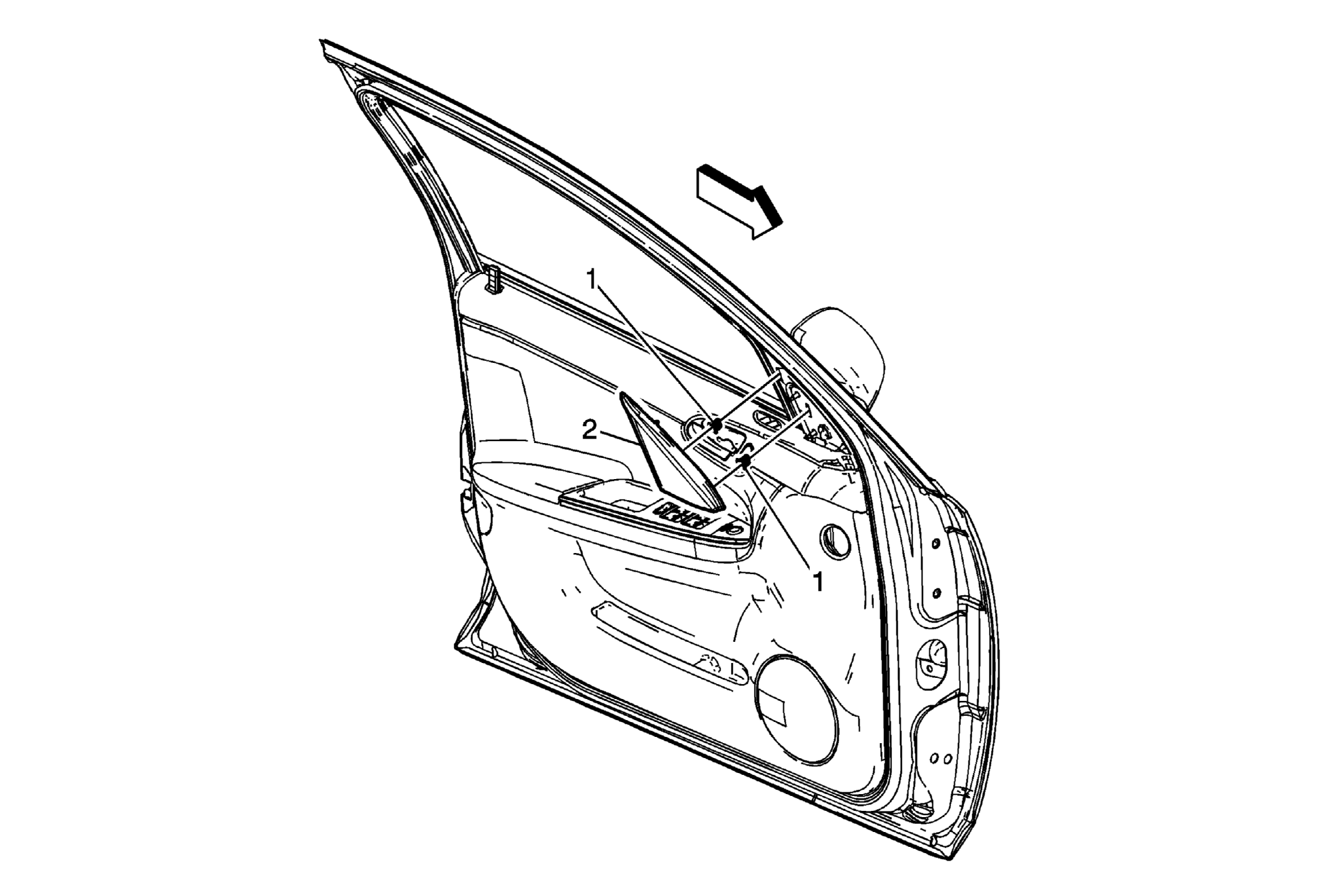

| Callout |
Component Name |
| 1 |
Front Side Door Upper Trim Panel Clip (Qty: 2) |
| 2 |
Front Side Door Upper Trim Panel Assembly
Tip:
- Pull on the top end of extension panel to disengage attaching clips.
- Lift extension panel out from behind the door trim panel.
|
