Front Floor Console Cup Holder Replacement (Monte Carlo)

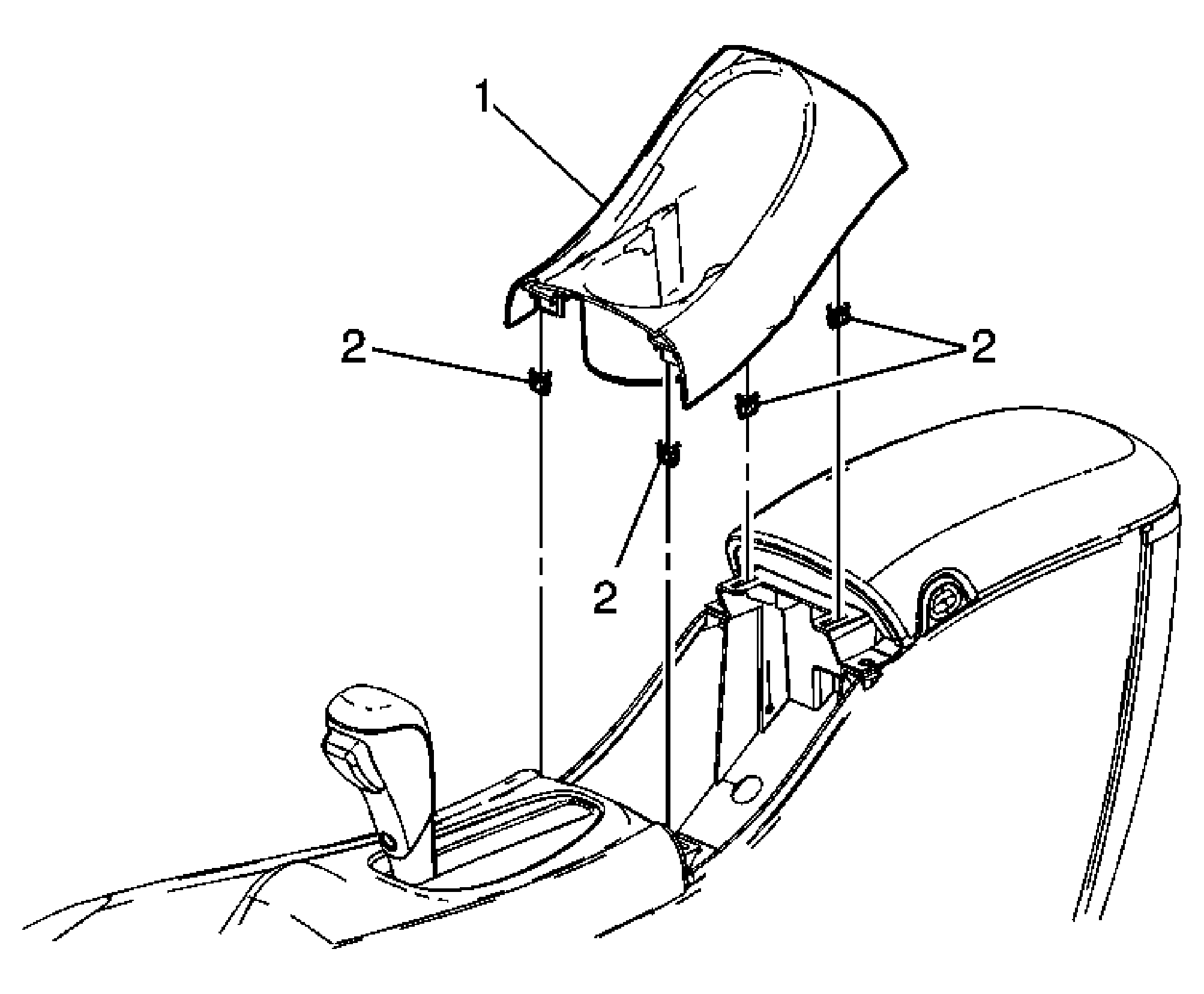

Fig 1: Identifying Front Floor Console Cupholder Components

Courtesy of GENERAL MOTORS CORP.

Front Floor Console Cup Holder Replacement (Monte Carlo)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front Floor Console Cupholder Assembly
2	Retainer Clip (Qty: 4)
