Instrument Panel Insulator Panel Replacement - Right Side

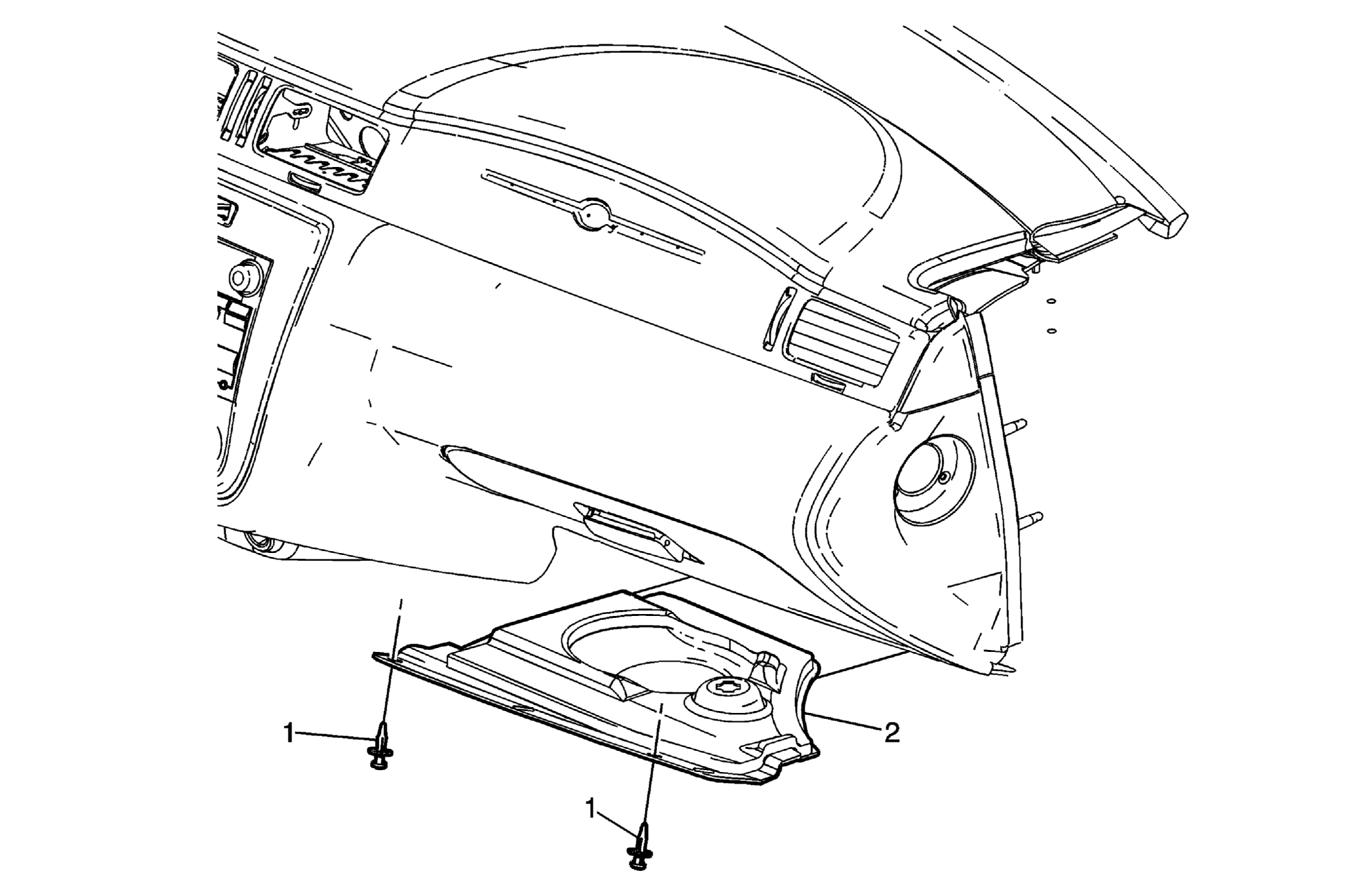

Fig 1: Identifying Right Closeout/Insulator Panel Components
GM1594253Courtesy of GENERAL MOTORS CORP.
Instrument Panel Insulator Panel Replacement - Right Side

Callout Component Name
1 Push Pin Retainers (Qty: 2)
2 Instrument Panel Closeout/Insulator Panel
Tip:
  1. Impala shown Monte Carlo similar.
  2. Remove the courtesy lamp, if equipped.
