Instrument Panel Insulator Panel Replacement - Left Side

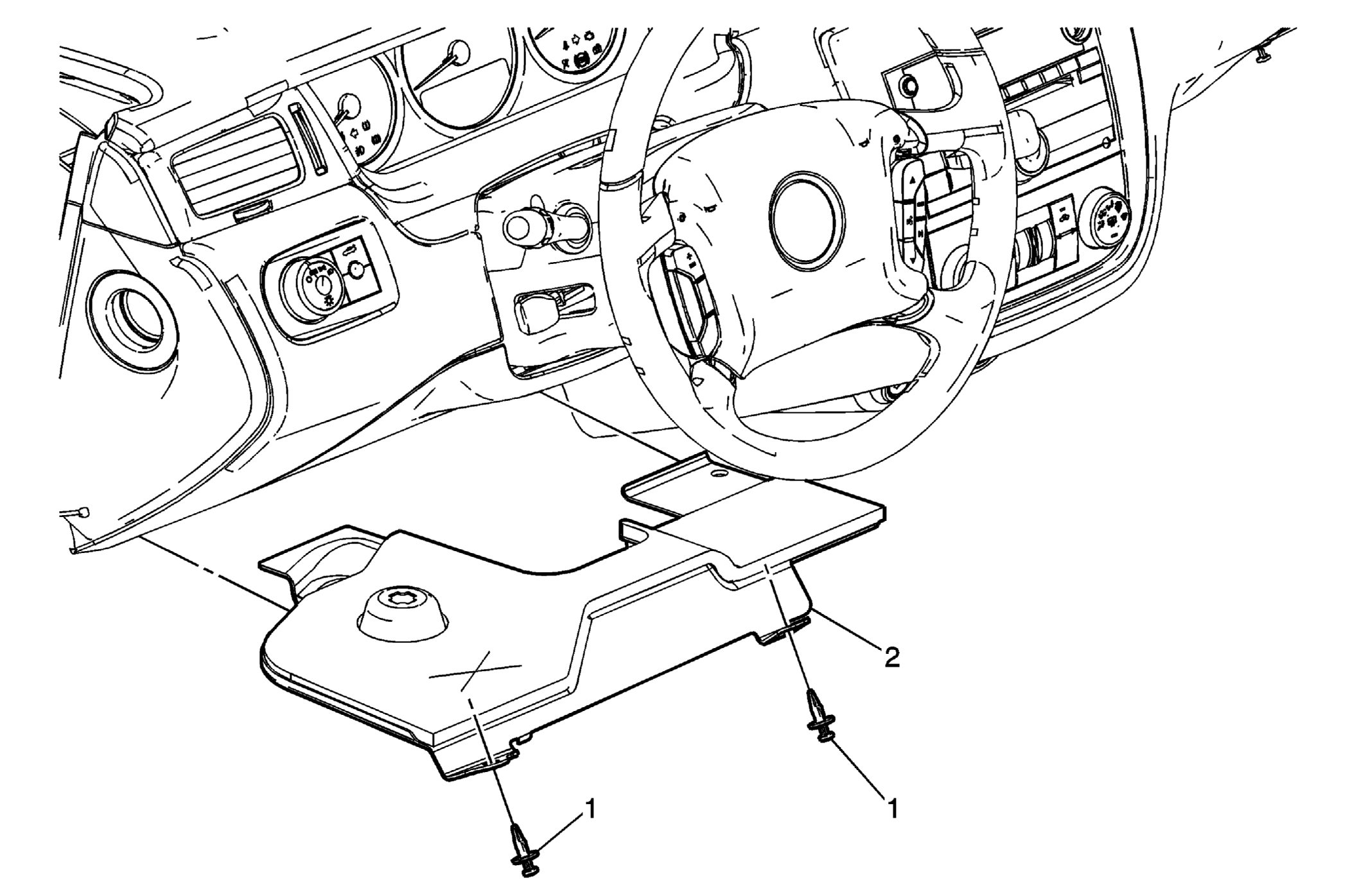

Fig 1: Identifying Left Closeout/Insulator Panel Components

Courtesy of GENERAL MOTORS CORP.

Instrument Panel Insulator Panel Replacement - Left Side

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Push Pin Retainers (Qty: 2)
2	Instrument Panel Closeout/Insulator Panel Tip:  Impala shown Monte Carlo similar. Remove the courtesy lamp, if equipped.
