Instrument Panel Accessory Trim Plate Replacement (Impala)

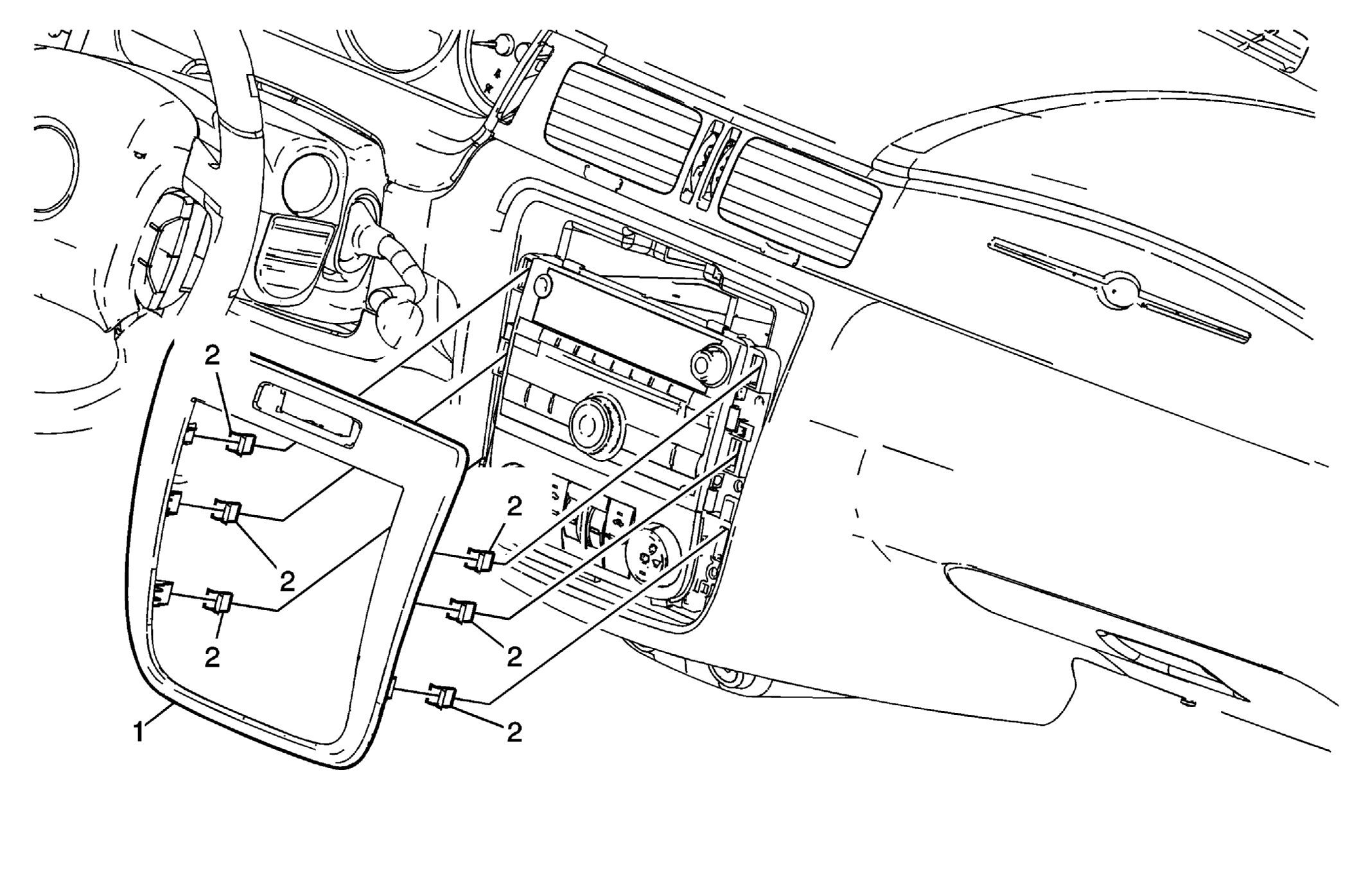

Fig 1: Identifying Instrument Panel (I/P) Accessory Trim Plate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Accessory Plate Assembly Tip: Disconnect electrical connectors. Remove the Inflatable Restraint Indicator. Refer to Instrument Panel Inflatable Restraint Module Indicator Replacement .
2	Retainer Clip (Qty 6)
