Door Lock/Indicator Schematics

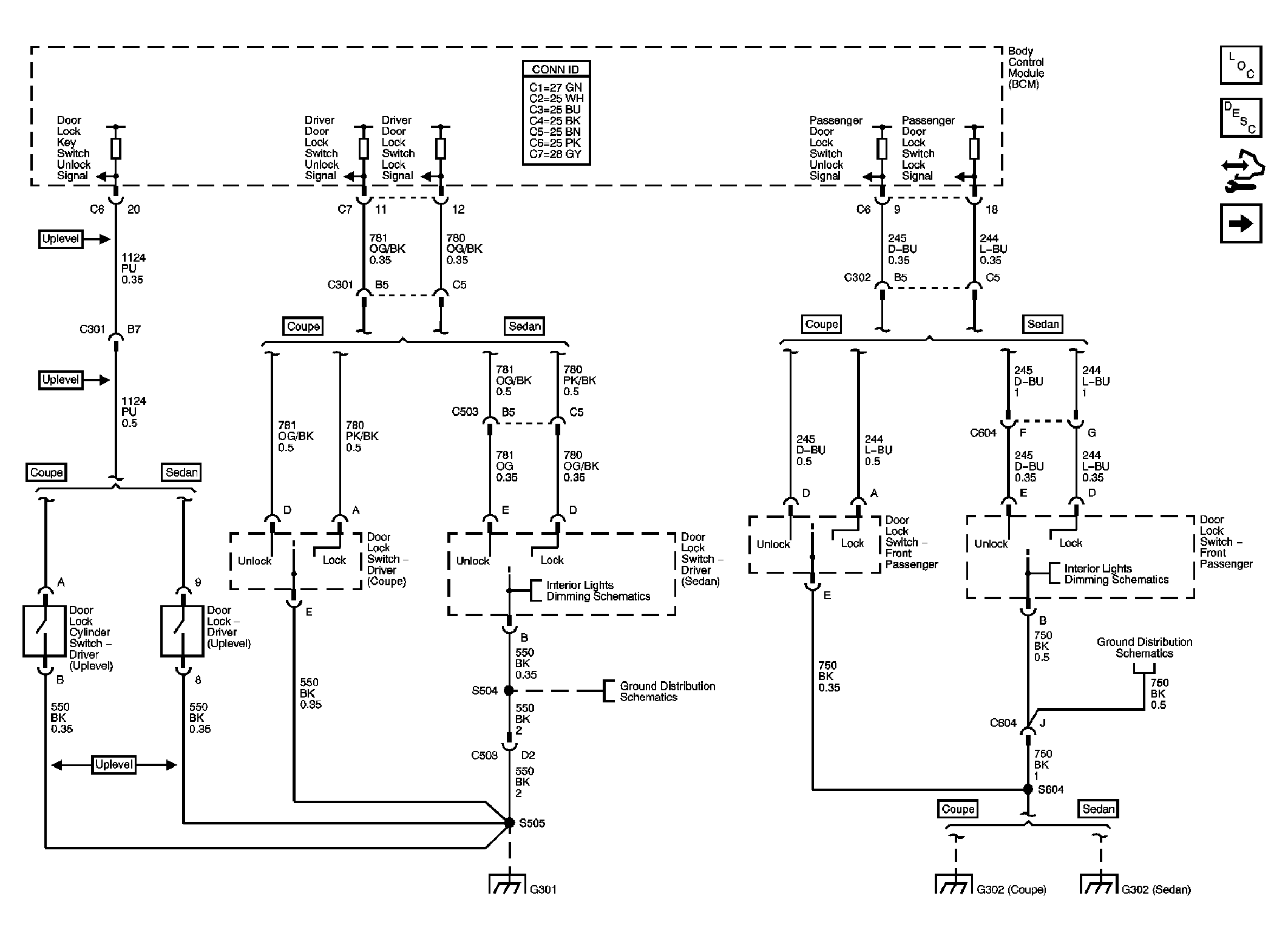

Fig 1: Door Lock Switches Schematics
GM1761959Courtesy of GENERAL MOTORS CORP.

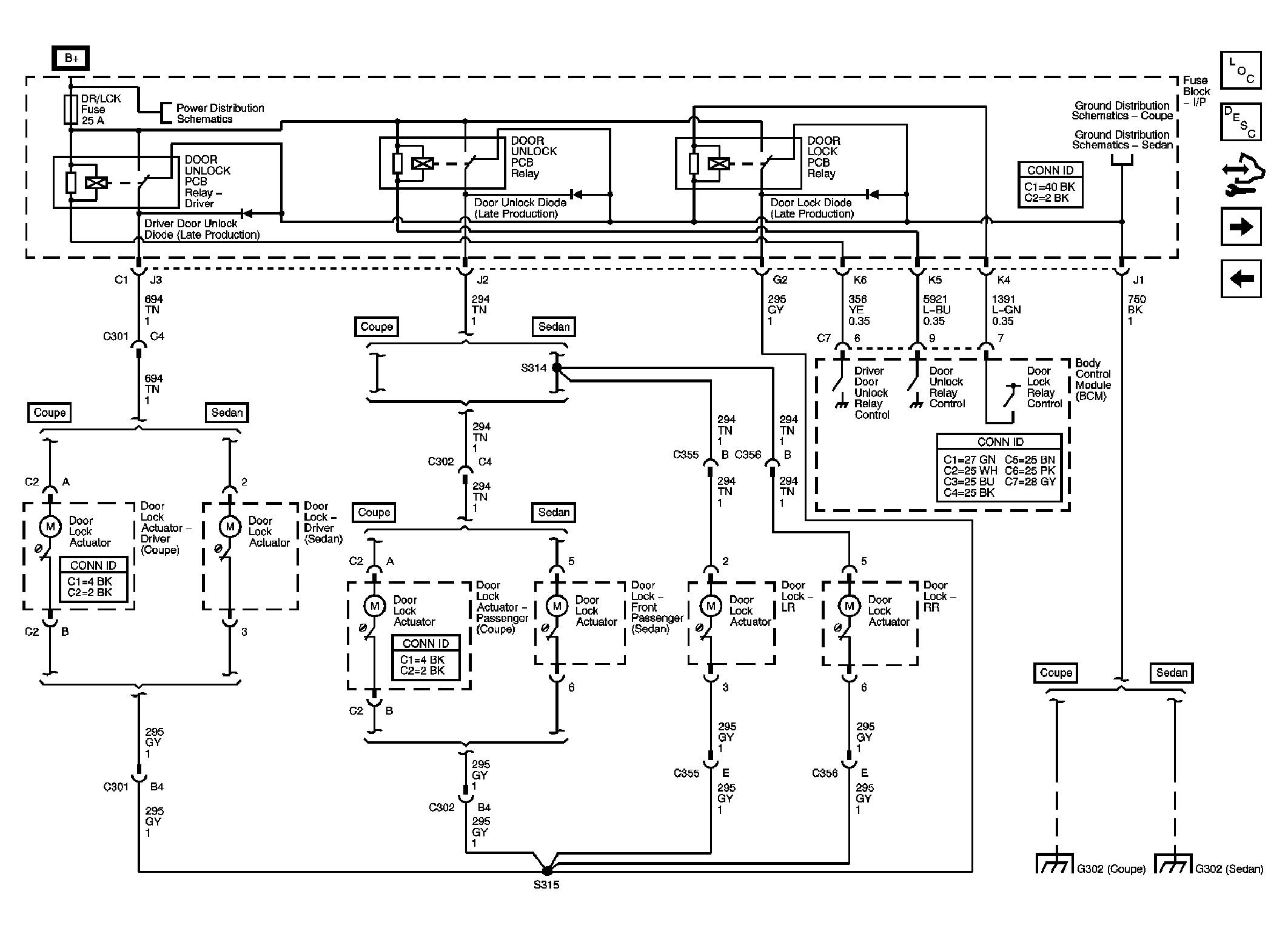

Fig 2: Door Lock Actuators Schematics
GM1761960Courtesy of GENERAL MOTORS CORP.

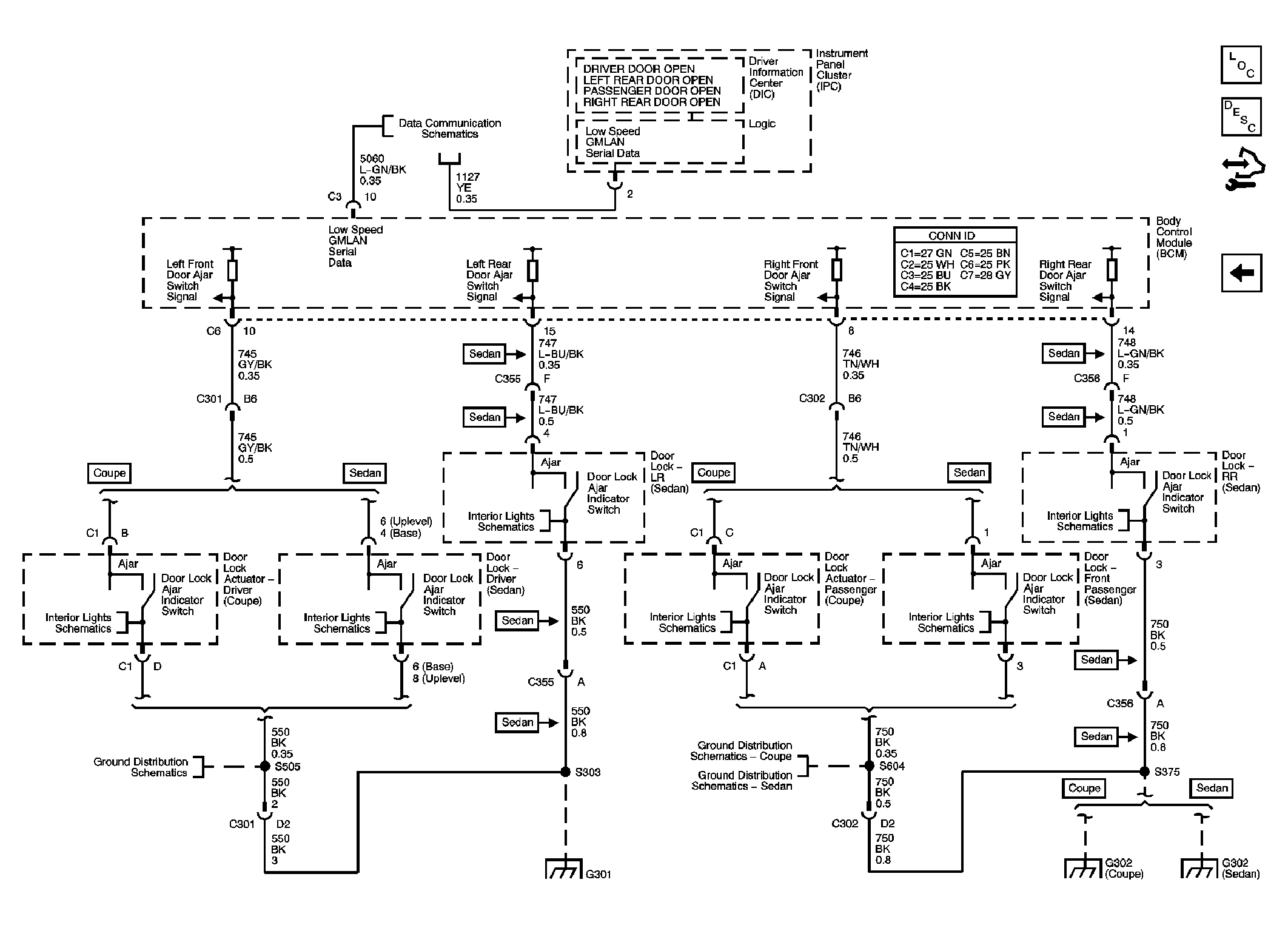

Fig 3: Door Ajar Indicators Schematics
GM1761961Courtesy of GENERAL MOTORS CORP.
