Rear Compartment Lid Latch Replacement

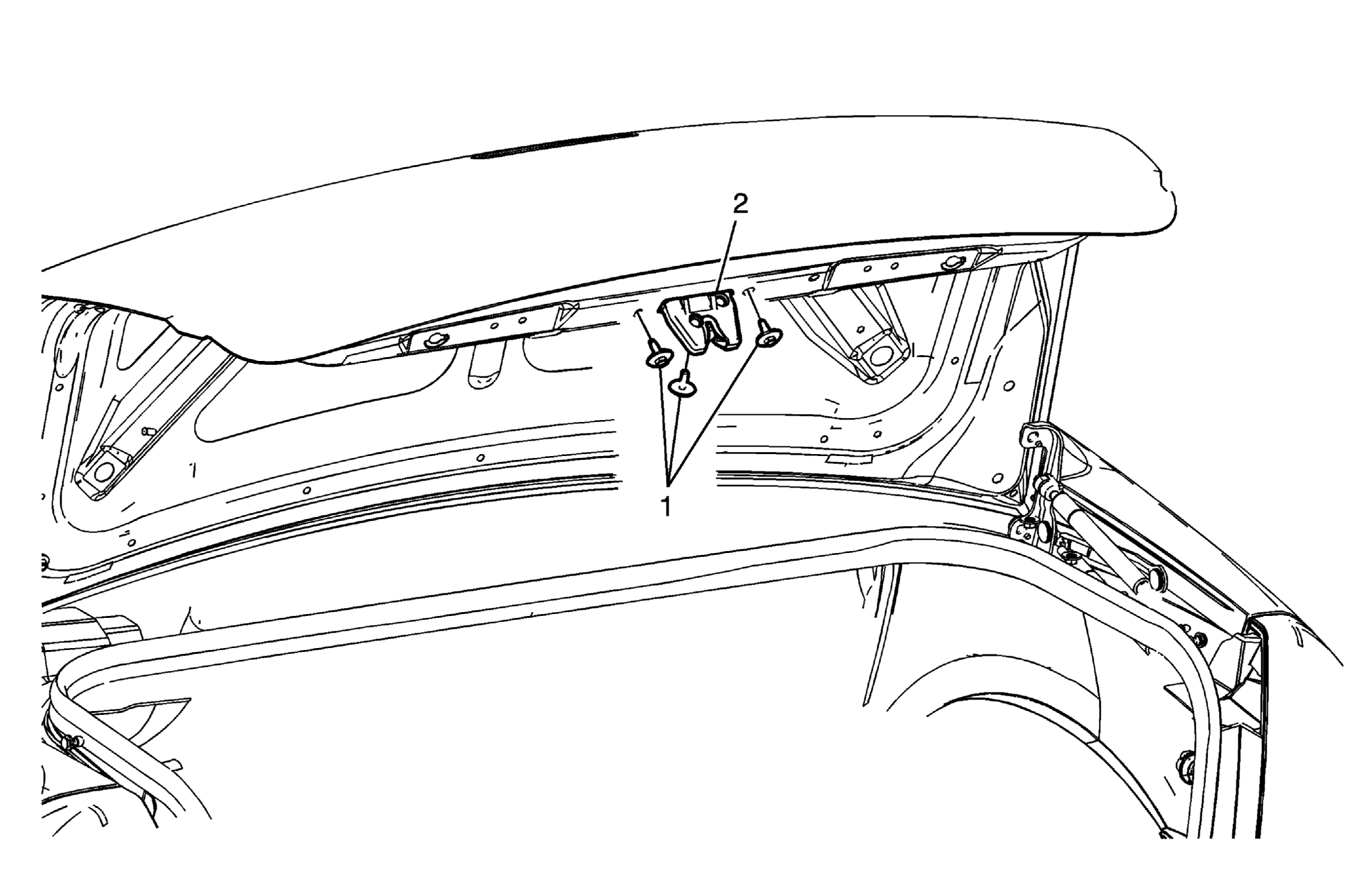

Fig 1: Identifying Rear Compartment Lid Latch

Courtesy of GENERAL MOTORS CORP.

Rear Compartment Lid Latch Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice .
1	Bolts, Rear Compartment Latch (Qty: 3) Tighten:  10 N.m (89 lb in)
2	Latch, Rear Compartment Tip:  Disconnect the electrical connection.
