Interior Lights Schematics

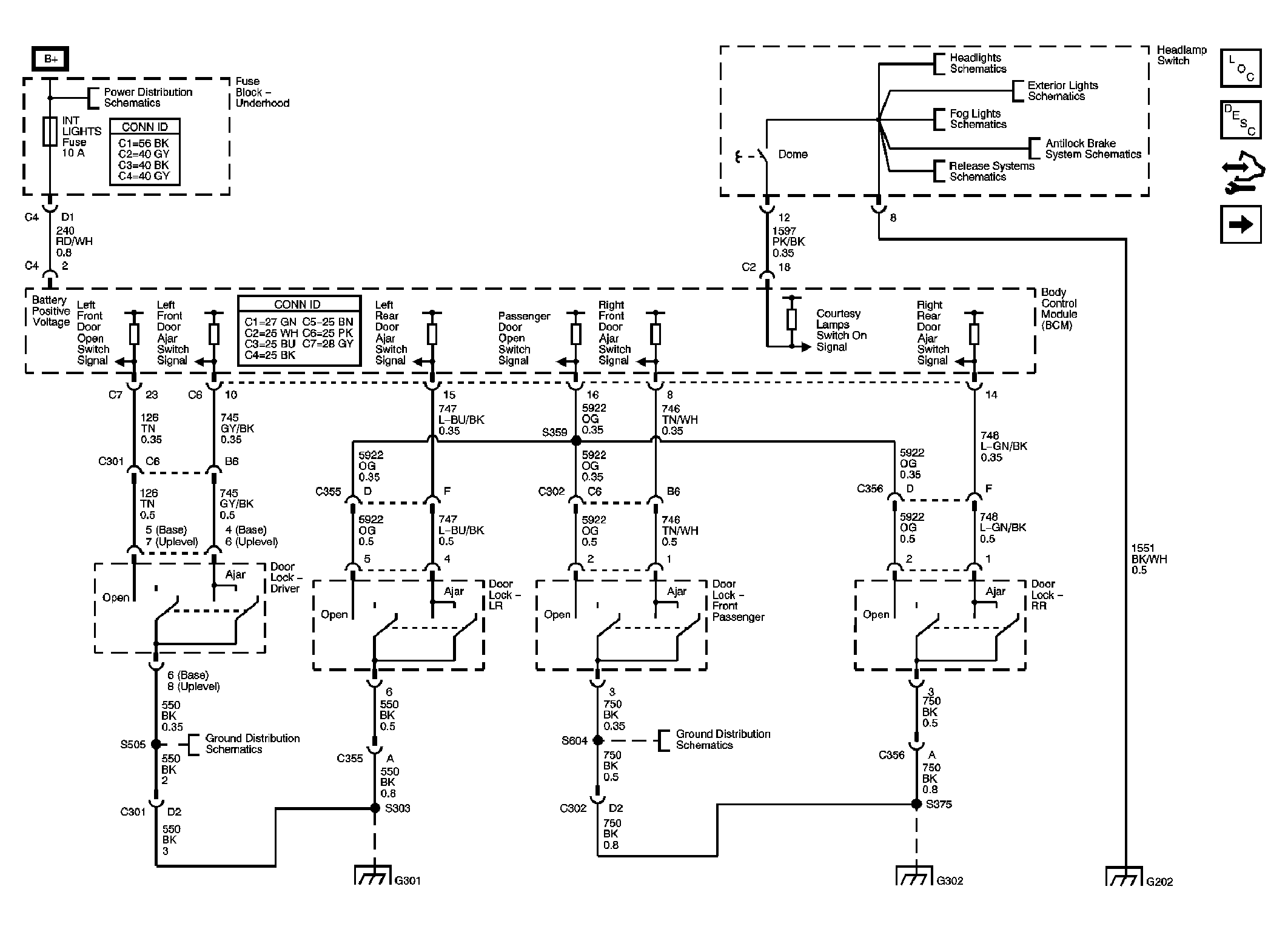

Fig 1: Switches (Sedan)
GM1761756Courtesy of GENERAL MOTORS CORP.

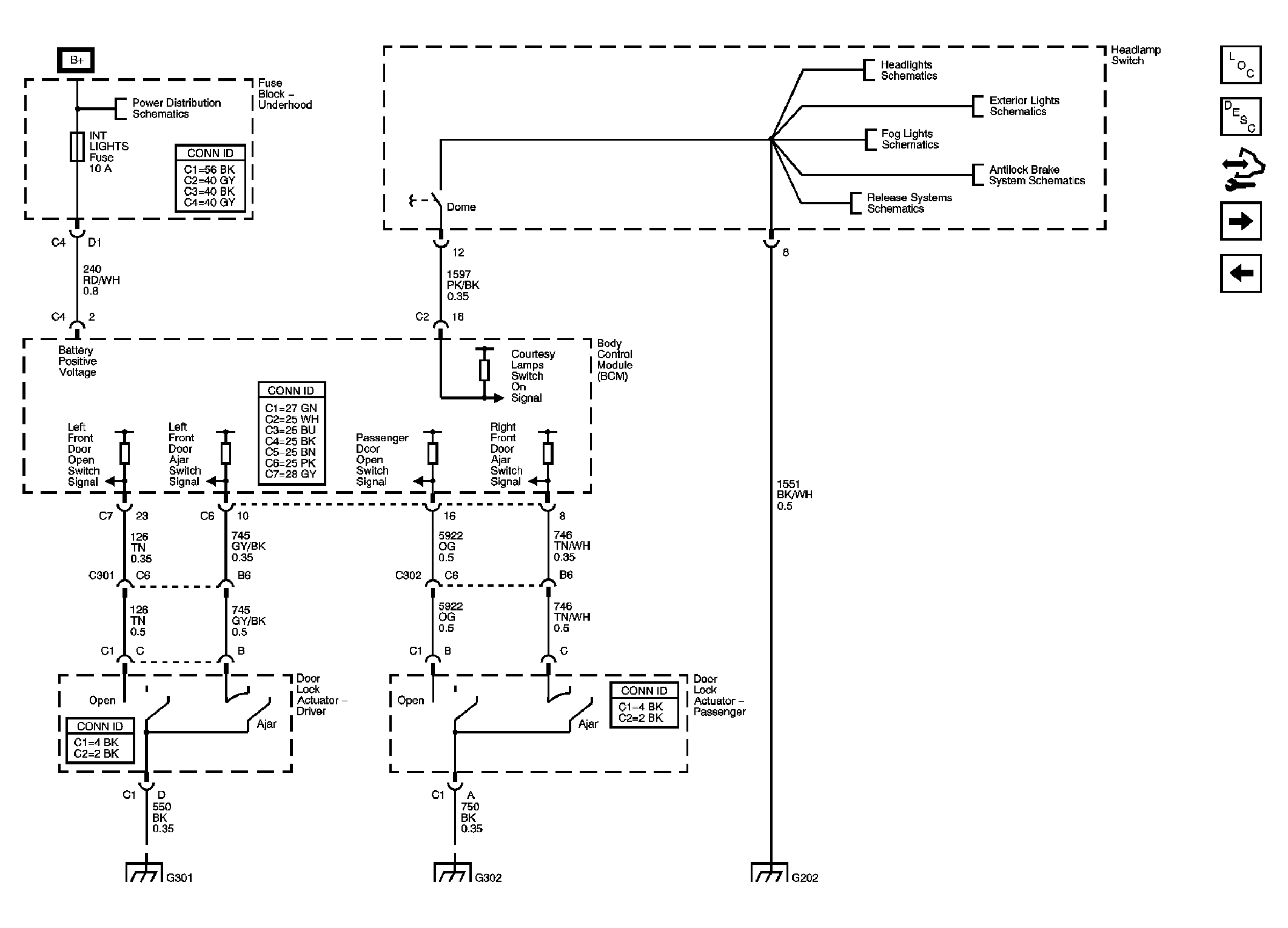

Fig 2: Switches (Coupe)
GM1761762Courtesy of GENERAL MOTORS CORP.

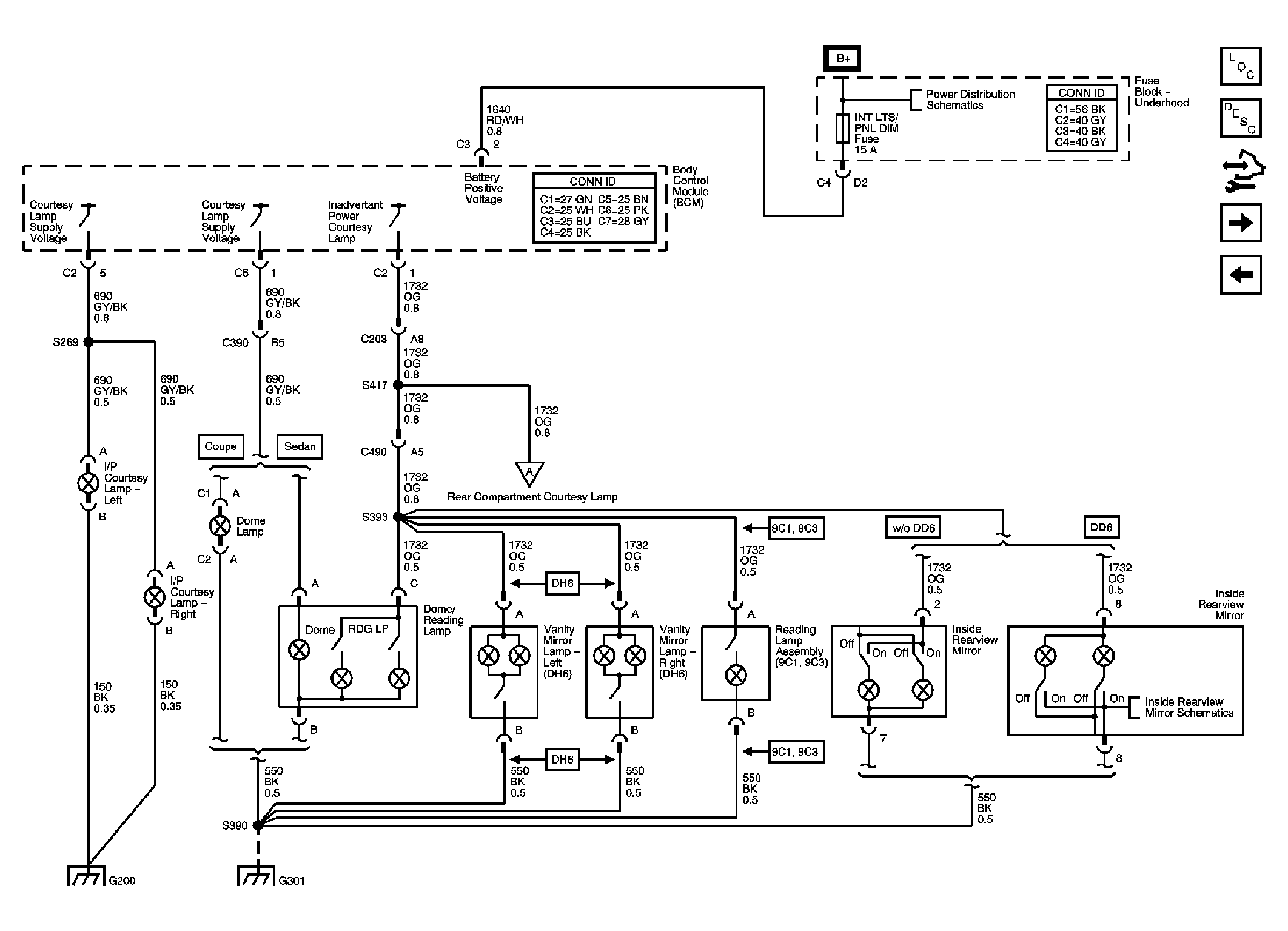

Fig 3: Passenger Compartment Lights
GM1761765Courtesy of GENERAL MOTORS CORP.
Fig 4: Rear Compartment Lights
GM1761771Courtesy of GENERAL MOTORS CORP.
