Exterior Lights Schematics

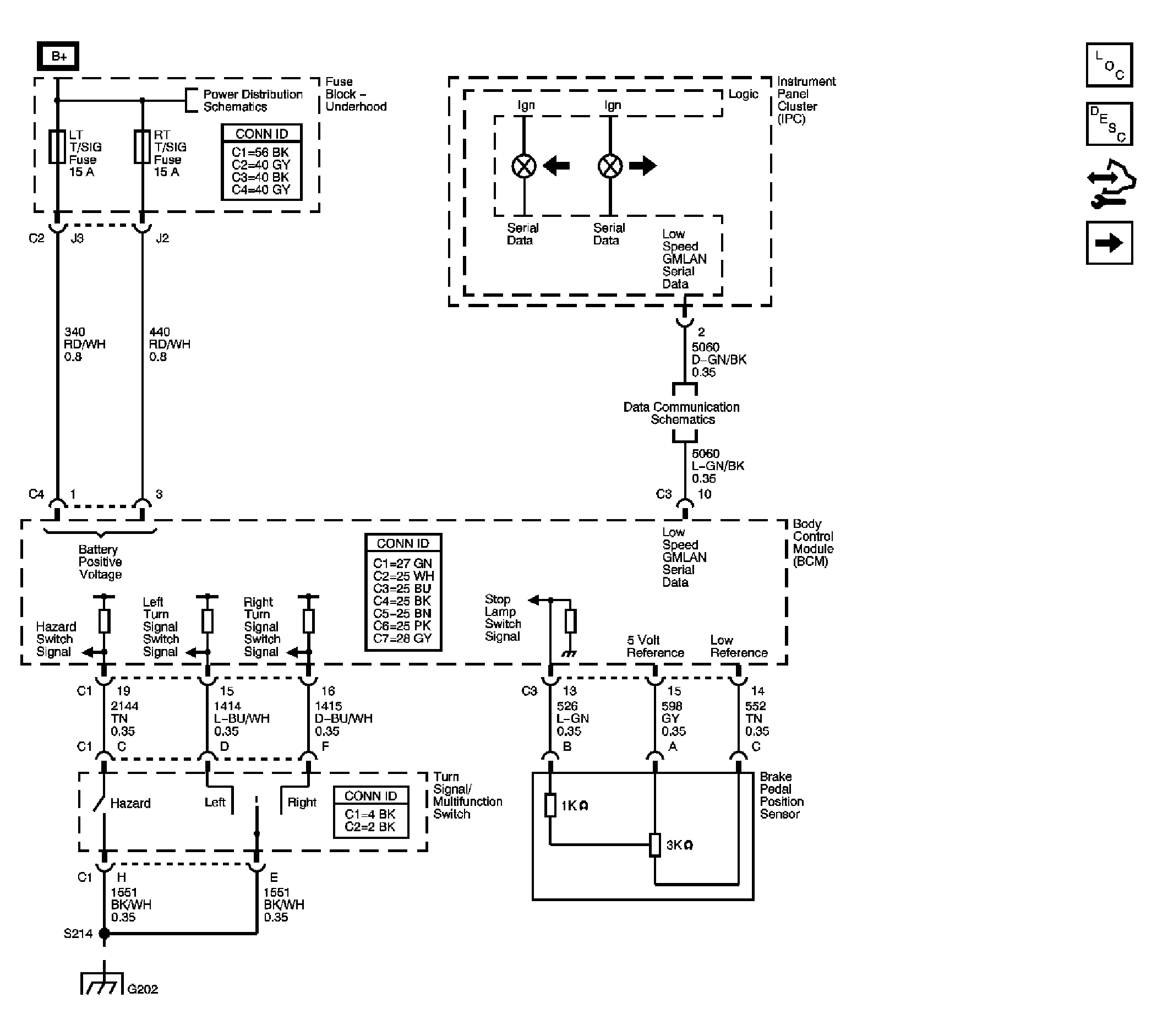

Fig 1: Turn Signal, Hazard, and Stop Lamps Inputs

Courtesy of GENERAL MOTORS CORP.

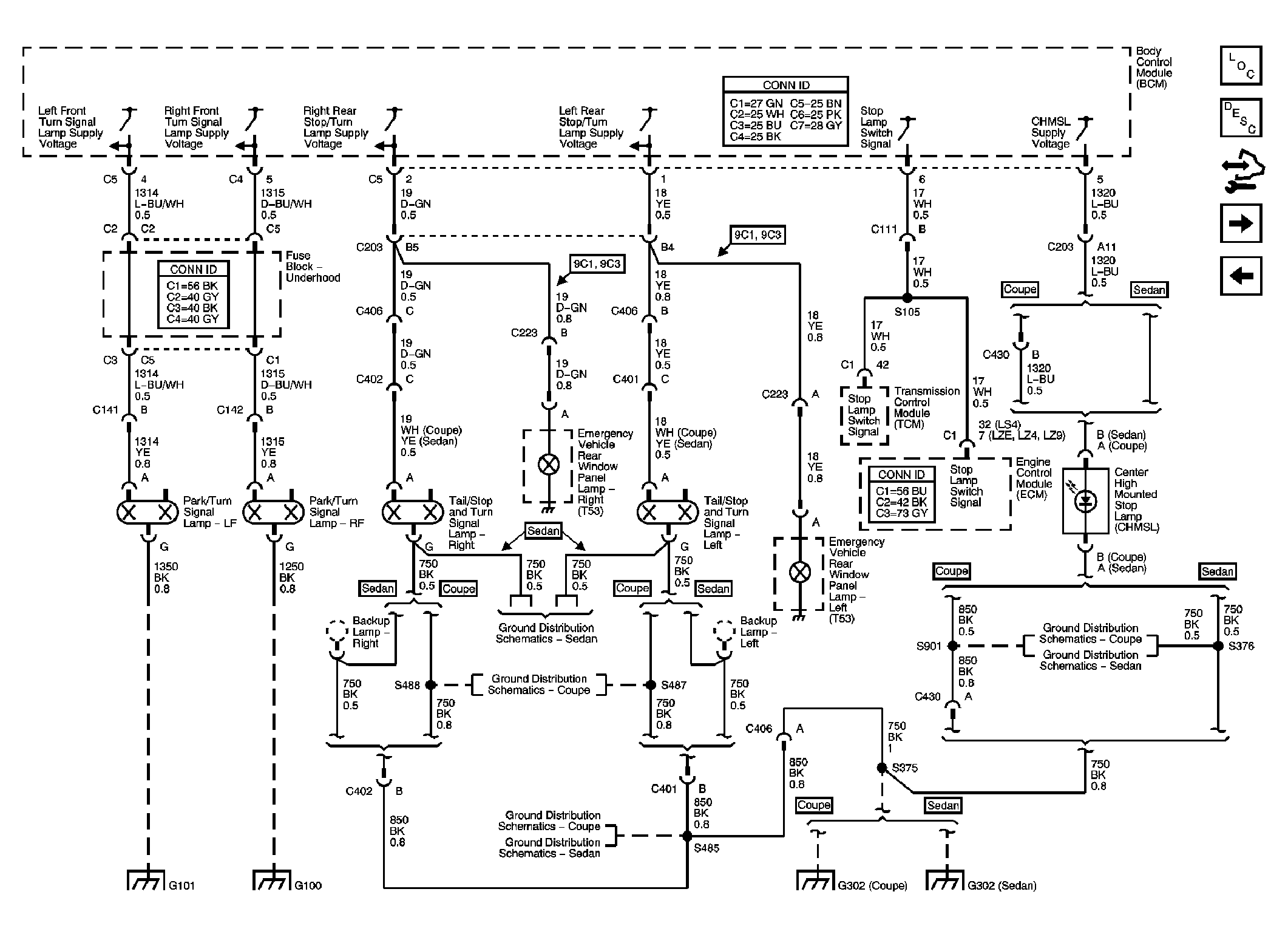

Fig 2: Turn Signal, Hazard, and Stop Lamps Outputs

Courtesy of GENERAL MOTORS CORP.

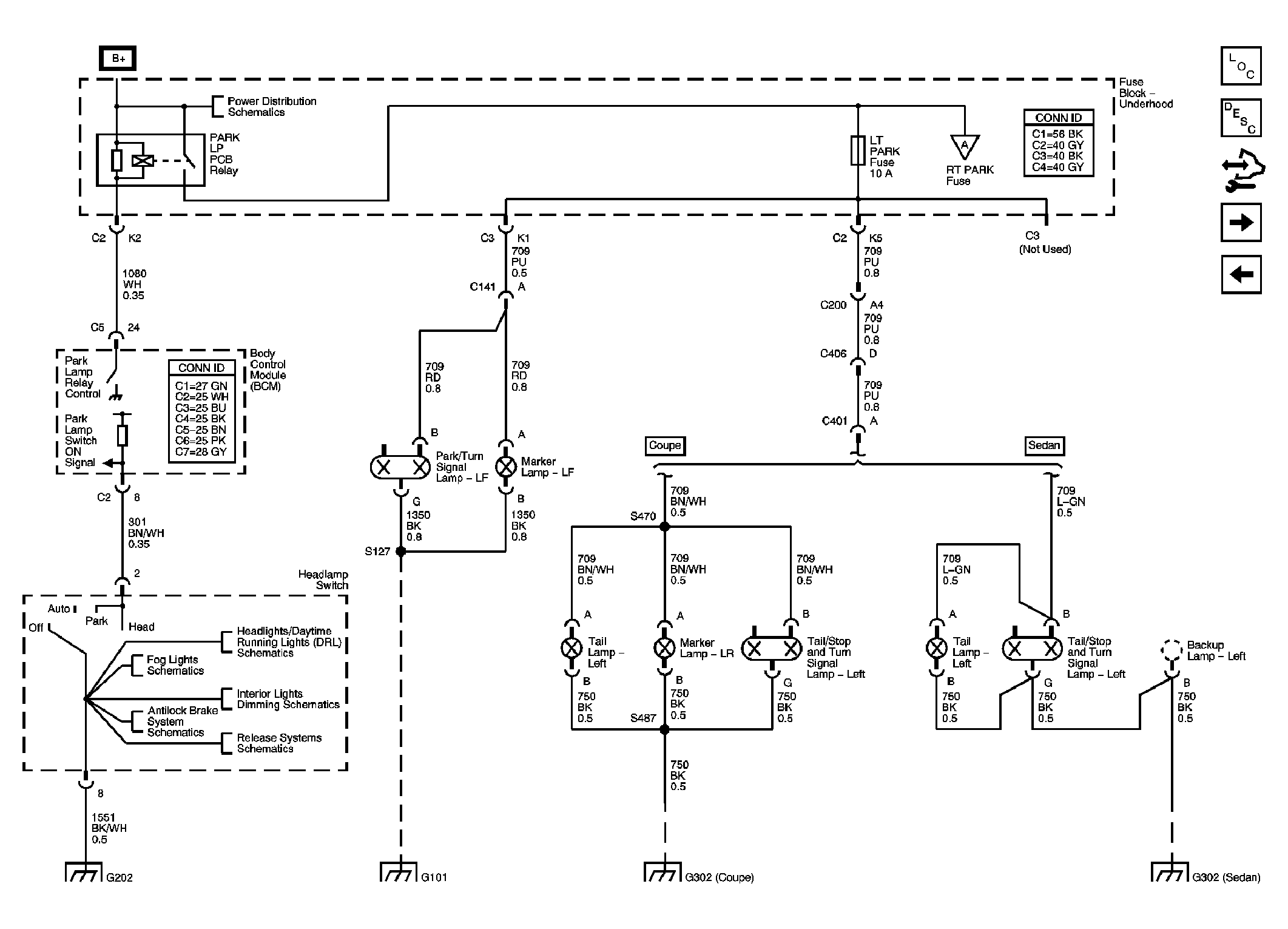

Fig 3: Park Lamps (1 of 2)

Courtesy of GENERAL MOTORS CORP.

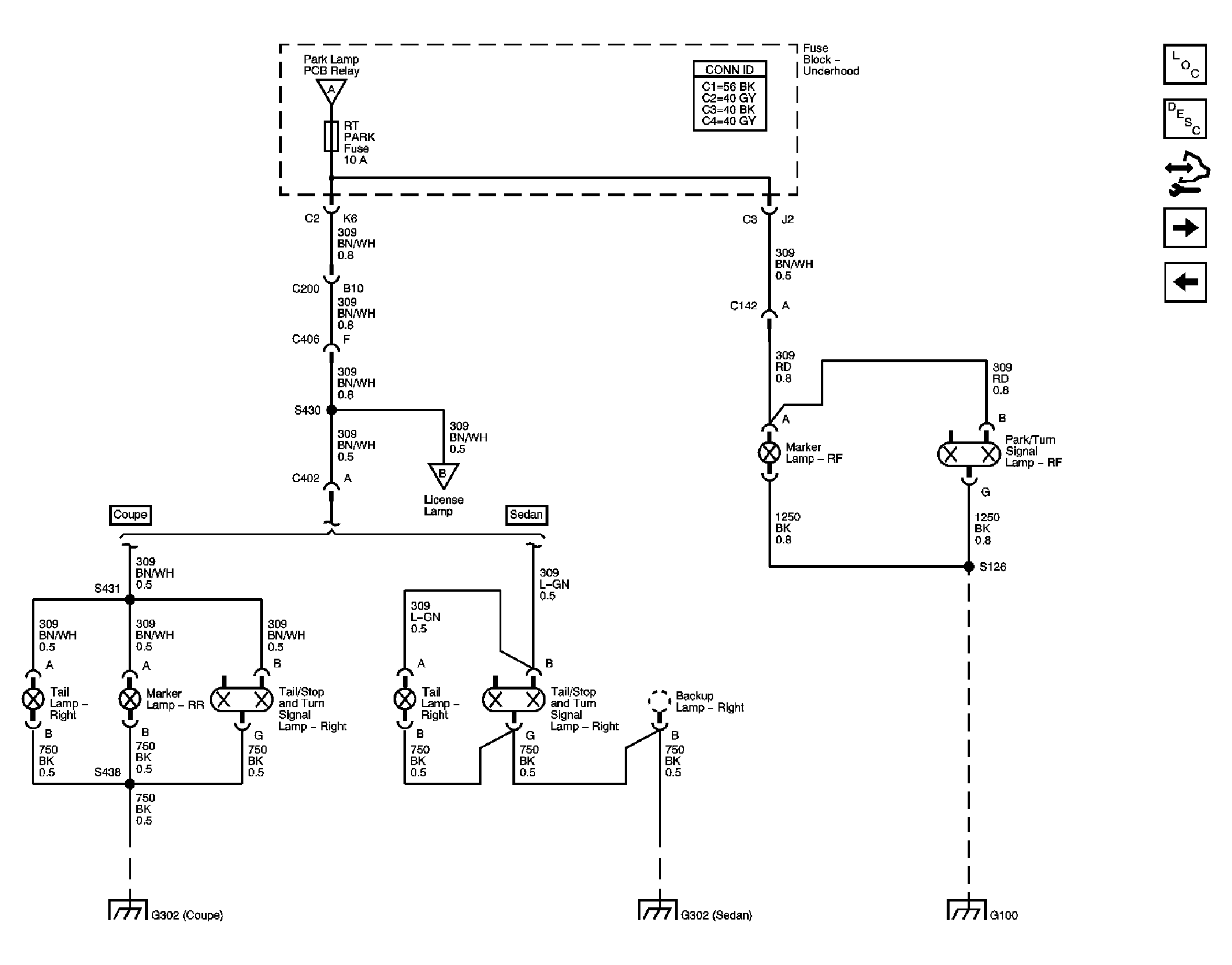

Fig 4: Park Lamps (2 of 2)

Courtesy of GENERAL MOTORS CORP.

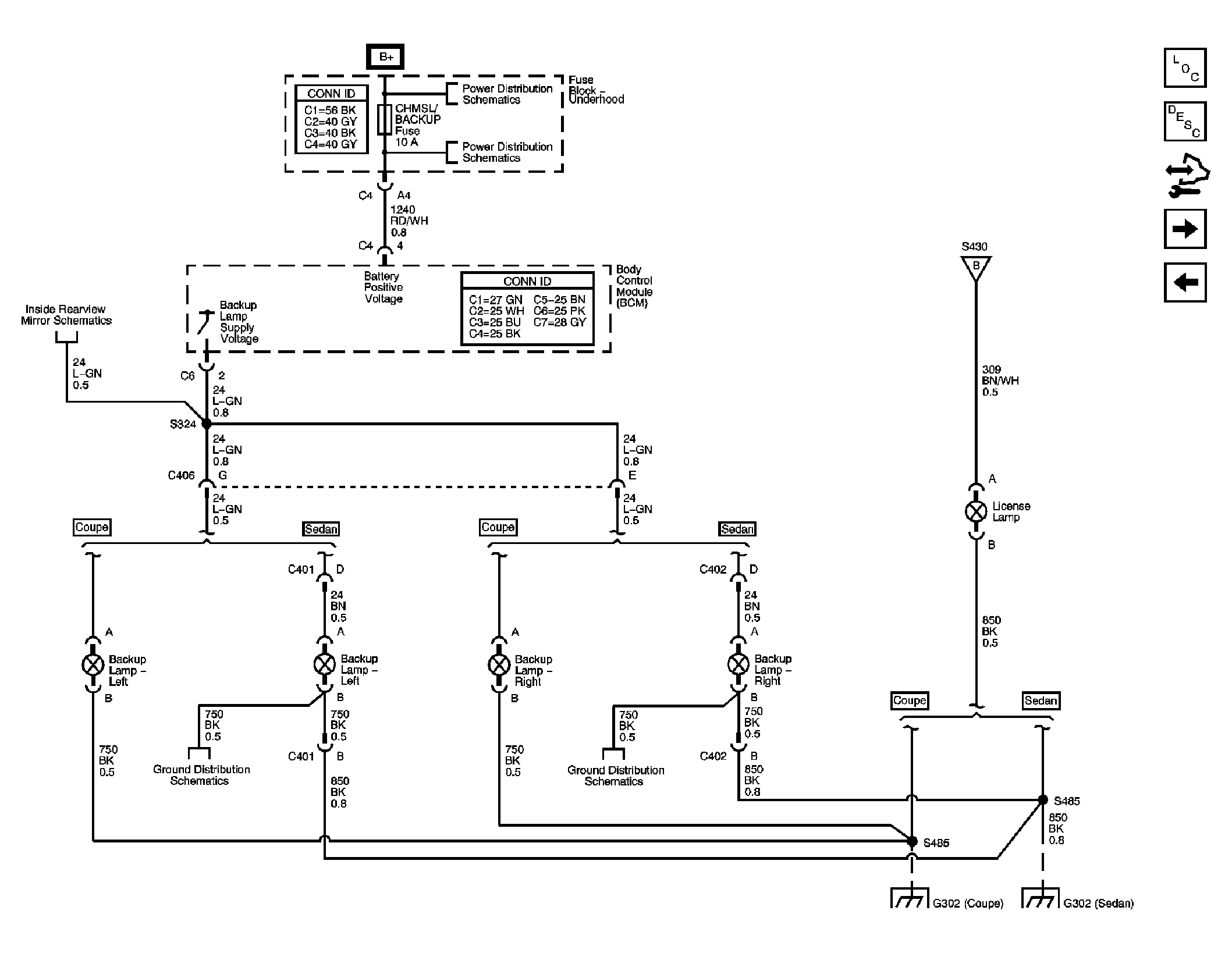

Fig 5: Backup and License Lamps

Courtesy of GENERAL MOTORS CORP.

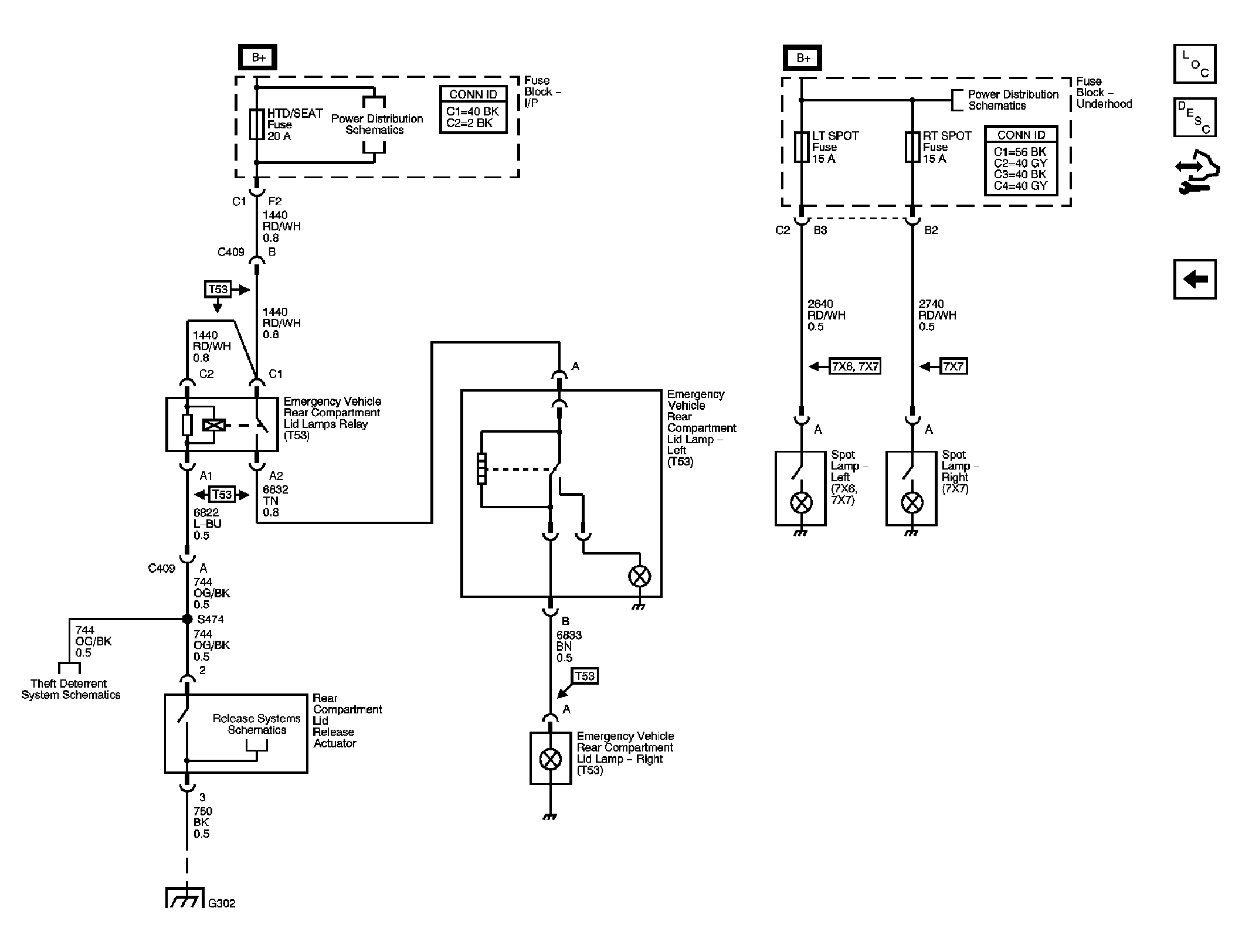

Fig 6: Emergency Vehicle Rear Compartment Lid Lamps, and Spot Lamps - T53, 7X6, 7X7

Courtesy of GENERAL MOTORS CORP.
