Garage Door Opener Replacement (Monte Carlo)

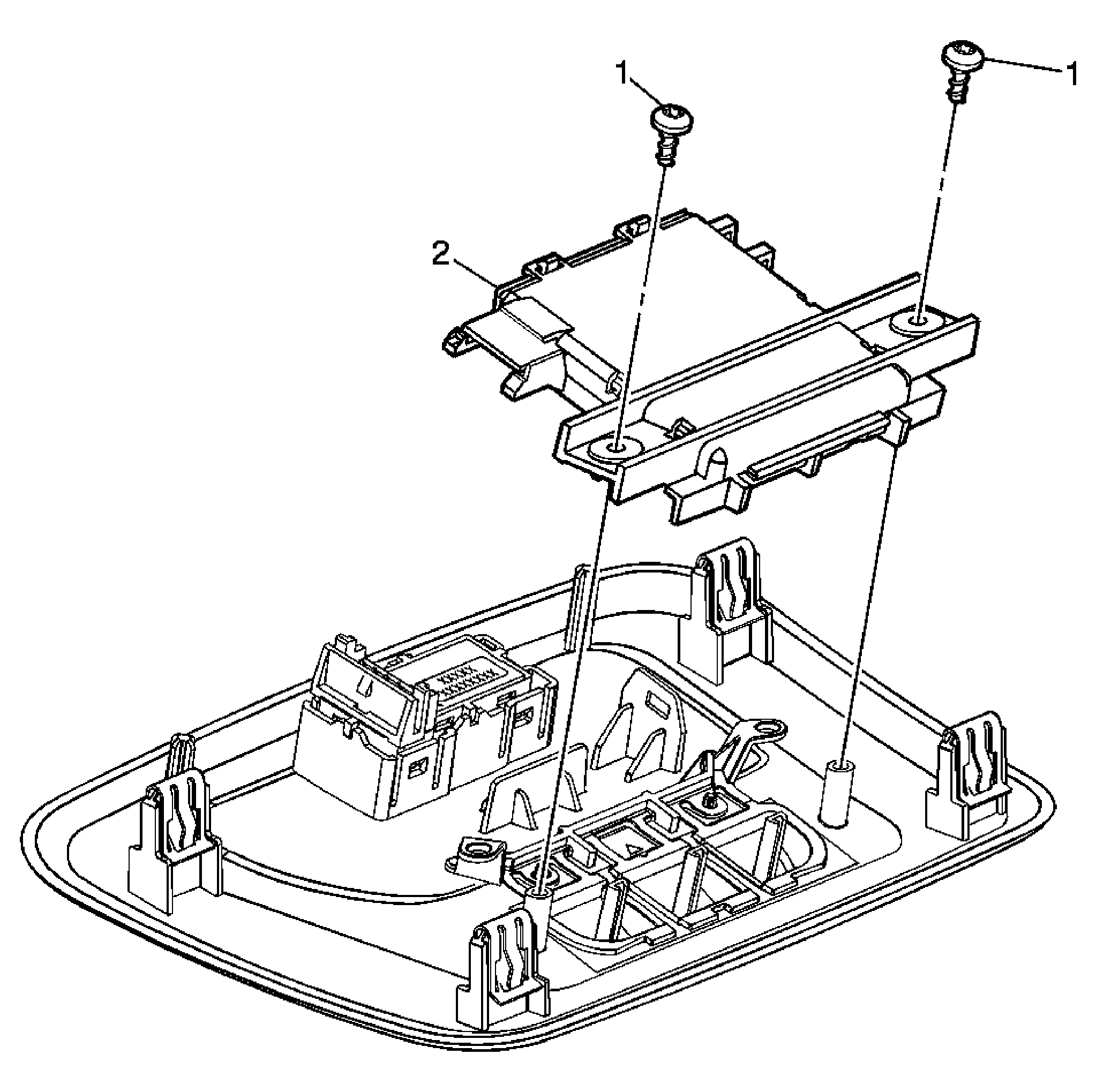

Fig 1: Identifying Garage Door Opener (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the overhead console. Refer to Roof Console Replacement . Program the garage door opener after replacement. Refer to Control Module References .
1	Garage Door Opener Pushbutton Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Garage Door Opener Pushbutton Assembly

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the overhead console. Refer to Roof Console Replacement .
Program the garage door opener after replacement. Refer to Control Module References .

Garage Door Opener Pushbutton Screw (Qty: 2)

Tighten: 2 N.m (18 lb in)

Garage Door Opener Pushbutton Assembly
