SIR Schematics

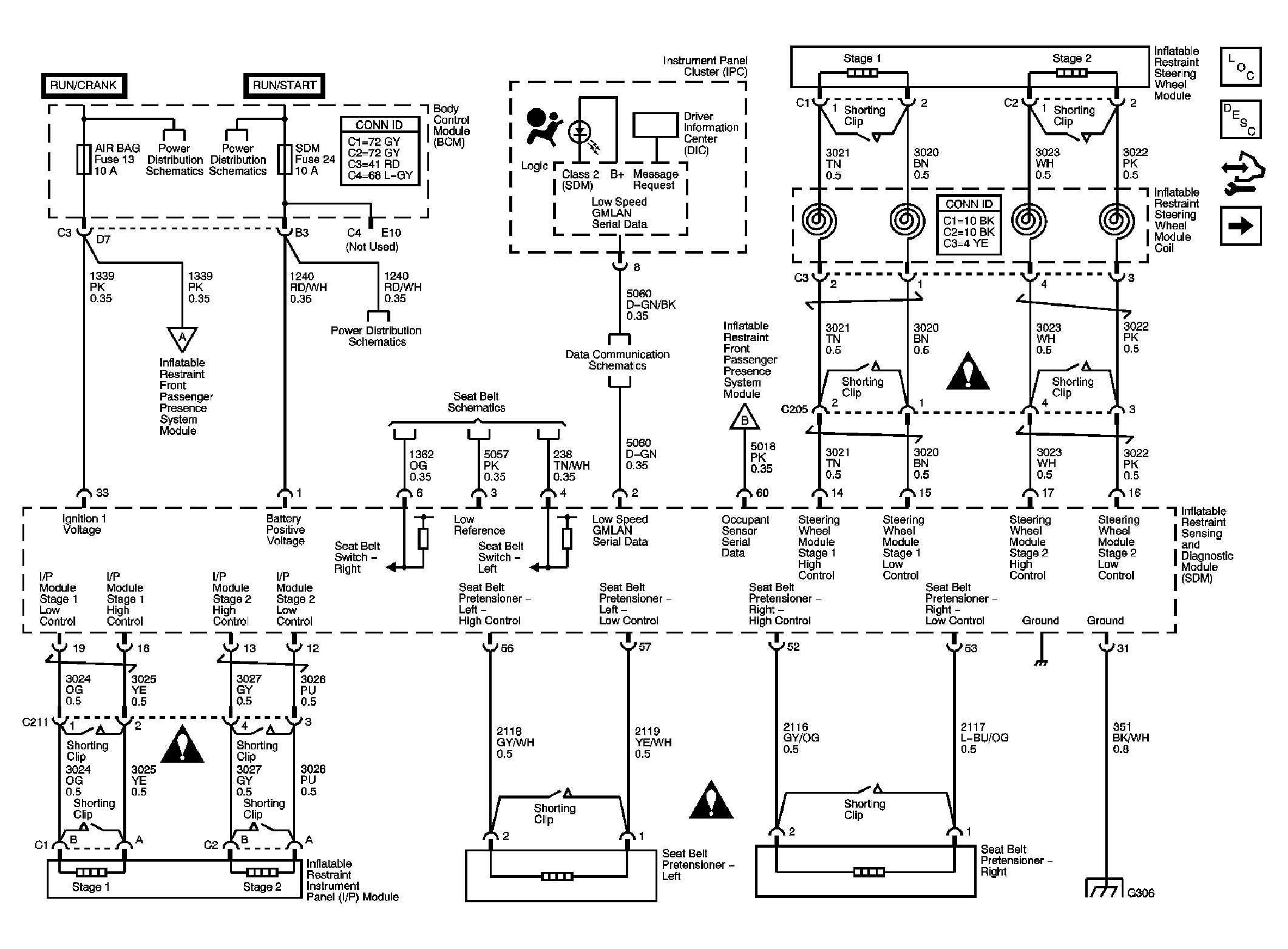

Fig 1: SIR Indicators, Power, Ground, Pretensioners, and Front Air Bag Modules
GM1769463Courtesy of GENERAL MOTORS CORP.

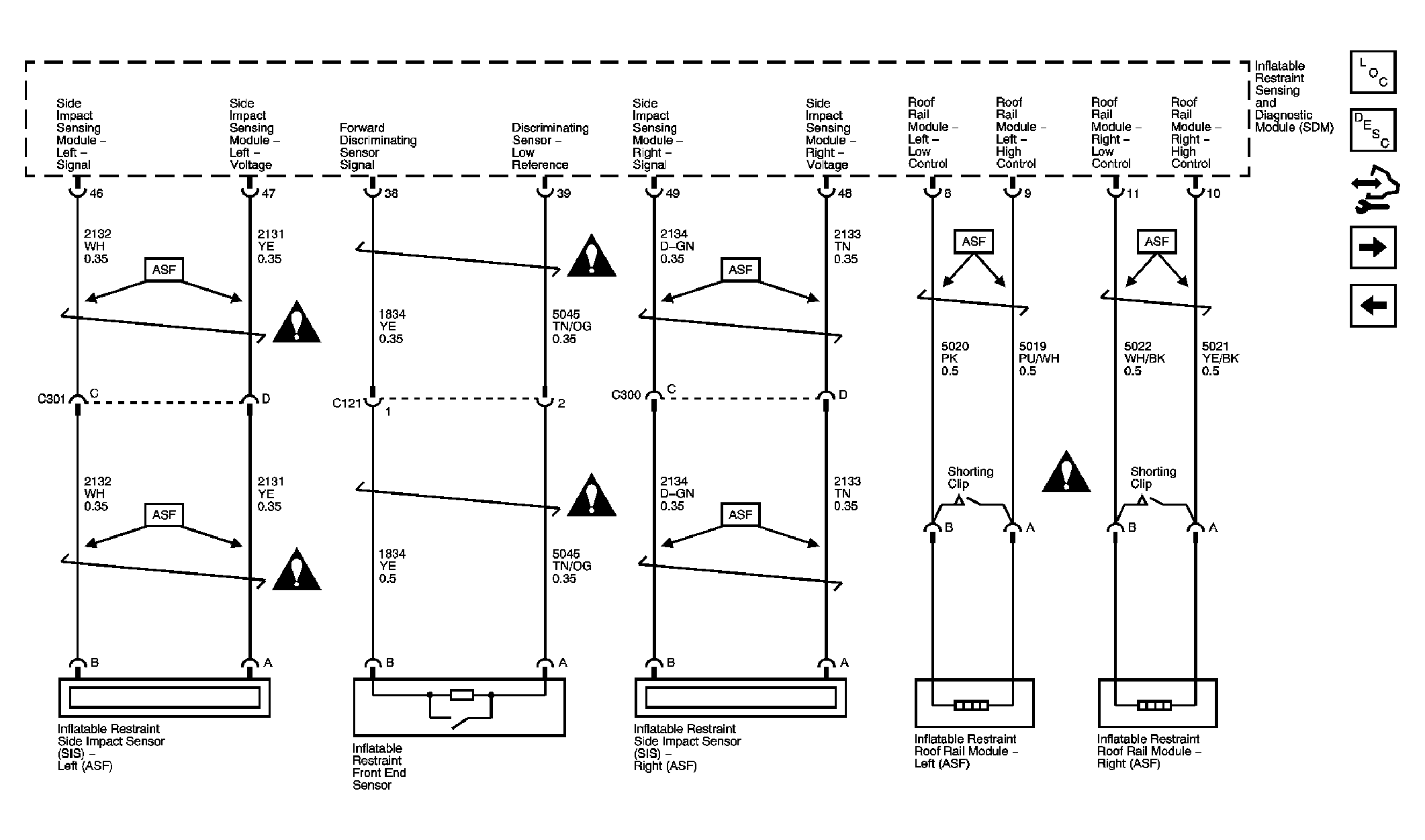

Fig 2: Side Impact (ASF), Roof Rail Module, and Front End Sensor
GM1769467Courtesy of GENERAL MOTORS CORP.

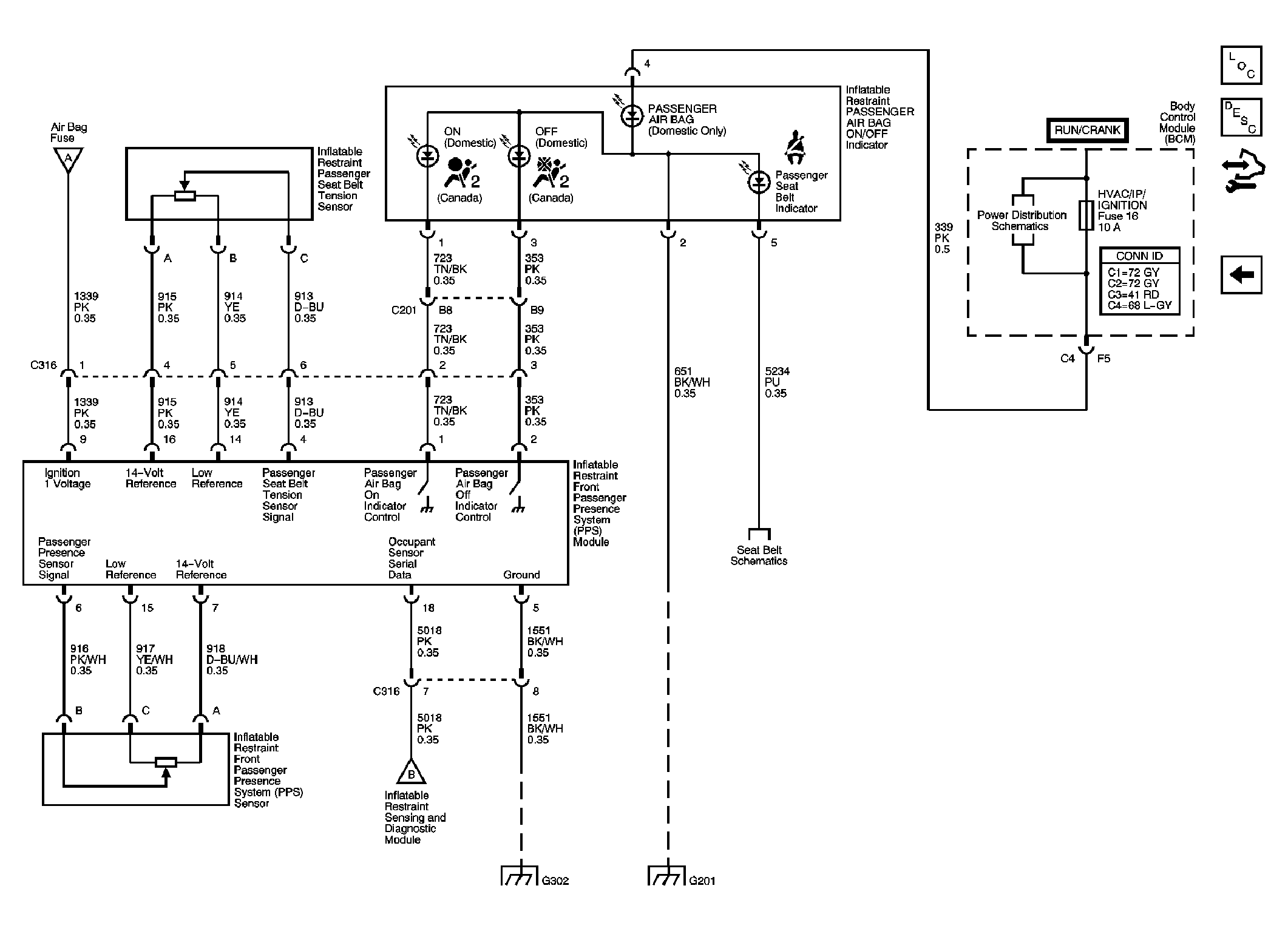

Fig 3: Passenger Presence System
GM1769473Courtesy of GENERAL MOTORS CORP.
