Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

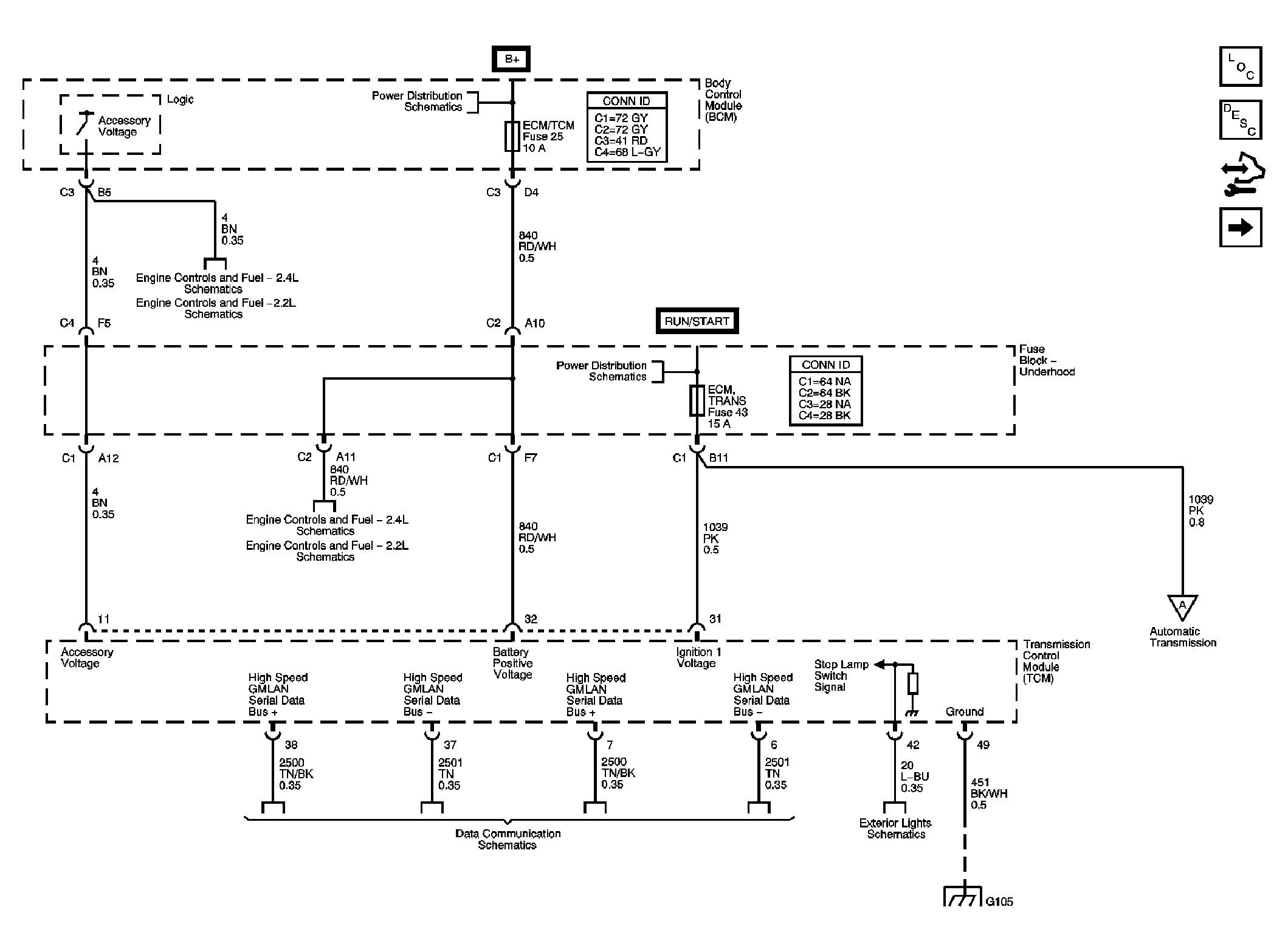

Fig 1: TCM, Power, and Ground
GM1769332Courtesy of GENERAL MOTORS CORP.

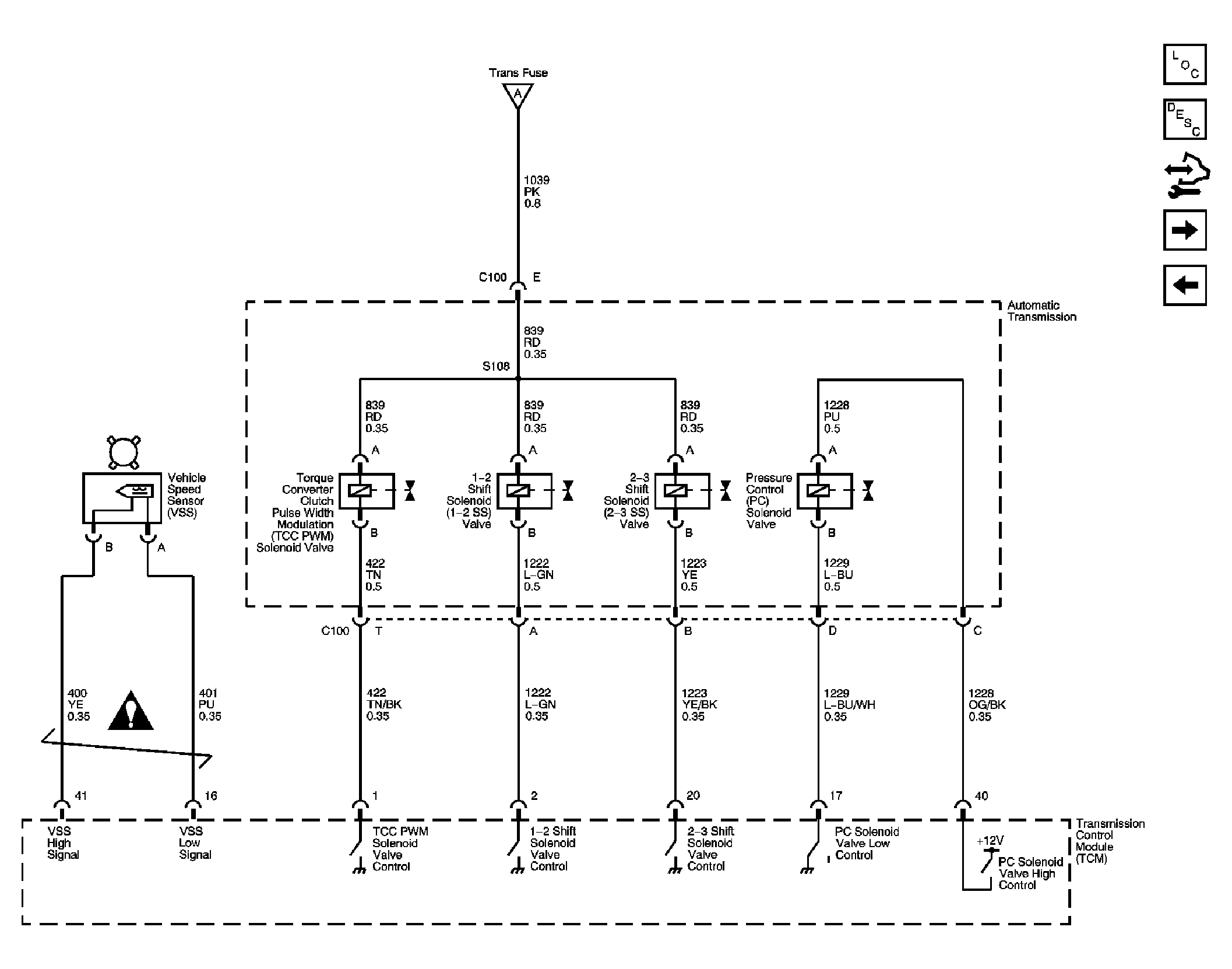

Fig 2: Transmission Solenoids and VSS
GM1769348Courtesy of GENERAL MOTORS CORP.

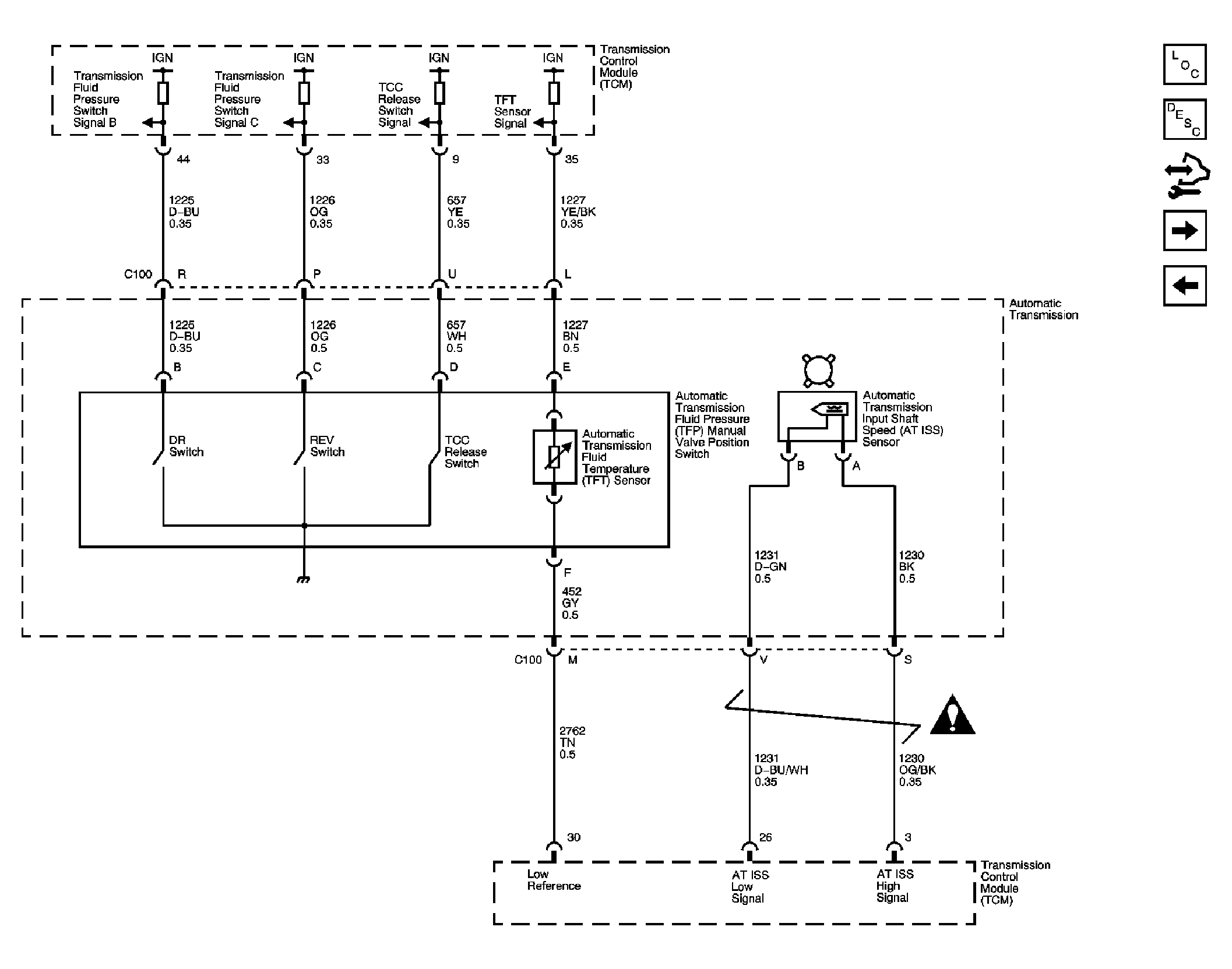

Fig 3: Transmission Switches, TFT, and A/T ISS Sensors
GM1769350Courtesy of GENERAL MOTORS CORP.
Fig 4: PNP Switch
GM1769352Courtesy of GENERAL MOTORS CORP.
