Automatic Transmission Electronic Component Views

WARNING: This page is about a different variant/trim than selected.
Fig 1: Electronic Components Component View
GM849832Courtesy of GENERAL MOTORS CORP.
Callout Component Name
13 TFP Manual Valve Position Switch Assembly
46 Input Speed Sensor
62 Output Speed Sensor
305 1-2 and 2-3 Shift Solenoid Valves
305 1-2 and 2-3 Shift Solenoid Valves
312 Pressure Control Solenoid
335 TCC Control PWM Solenoid

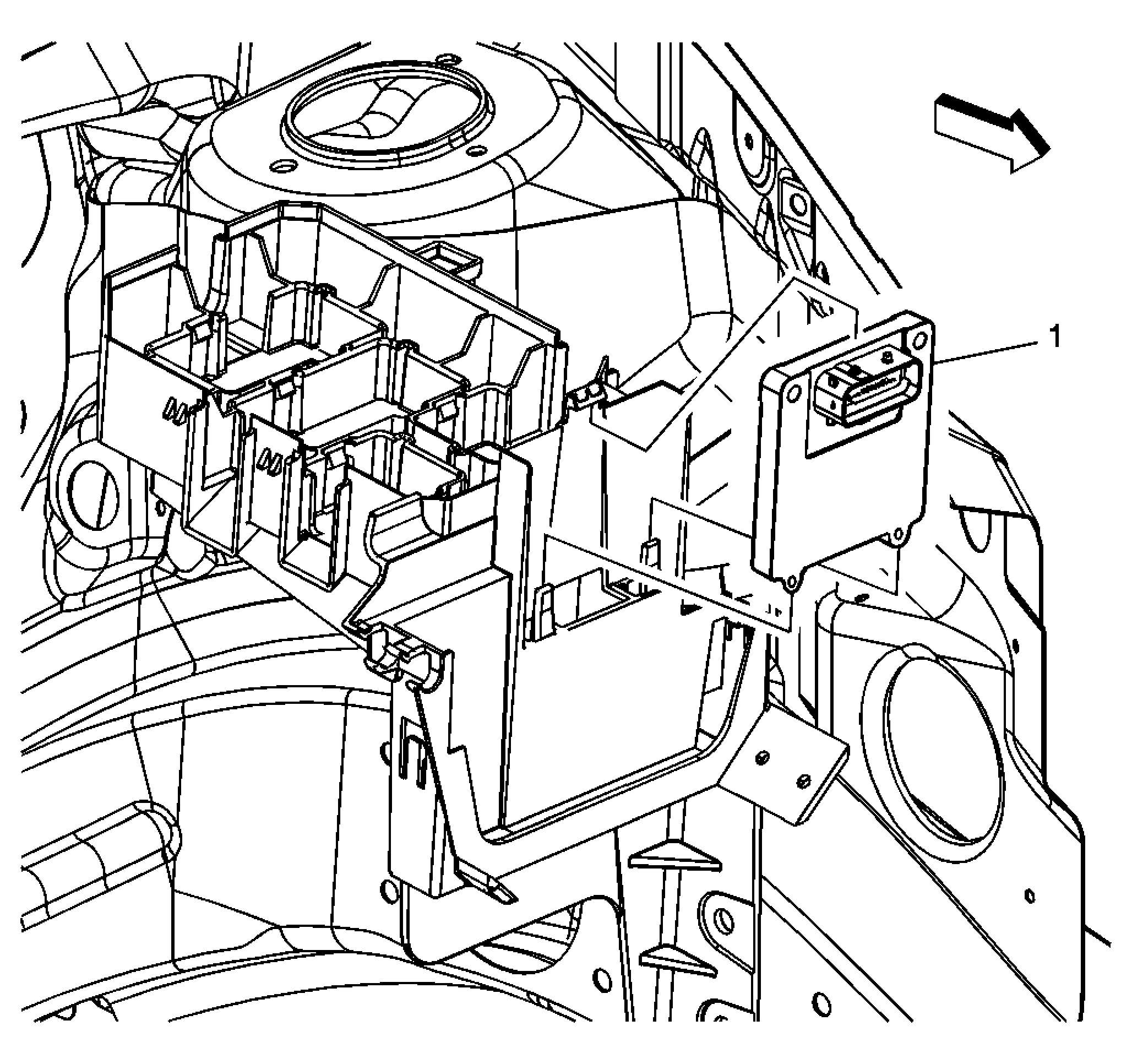

Fig 2: Transmission Control Module (TCM)
GM1748304Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Control Module (TCM)
