Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

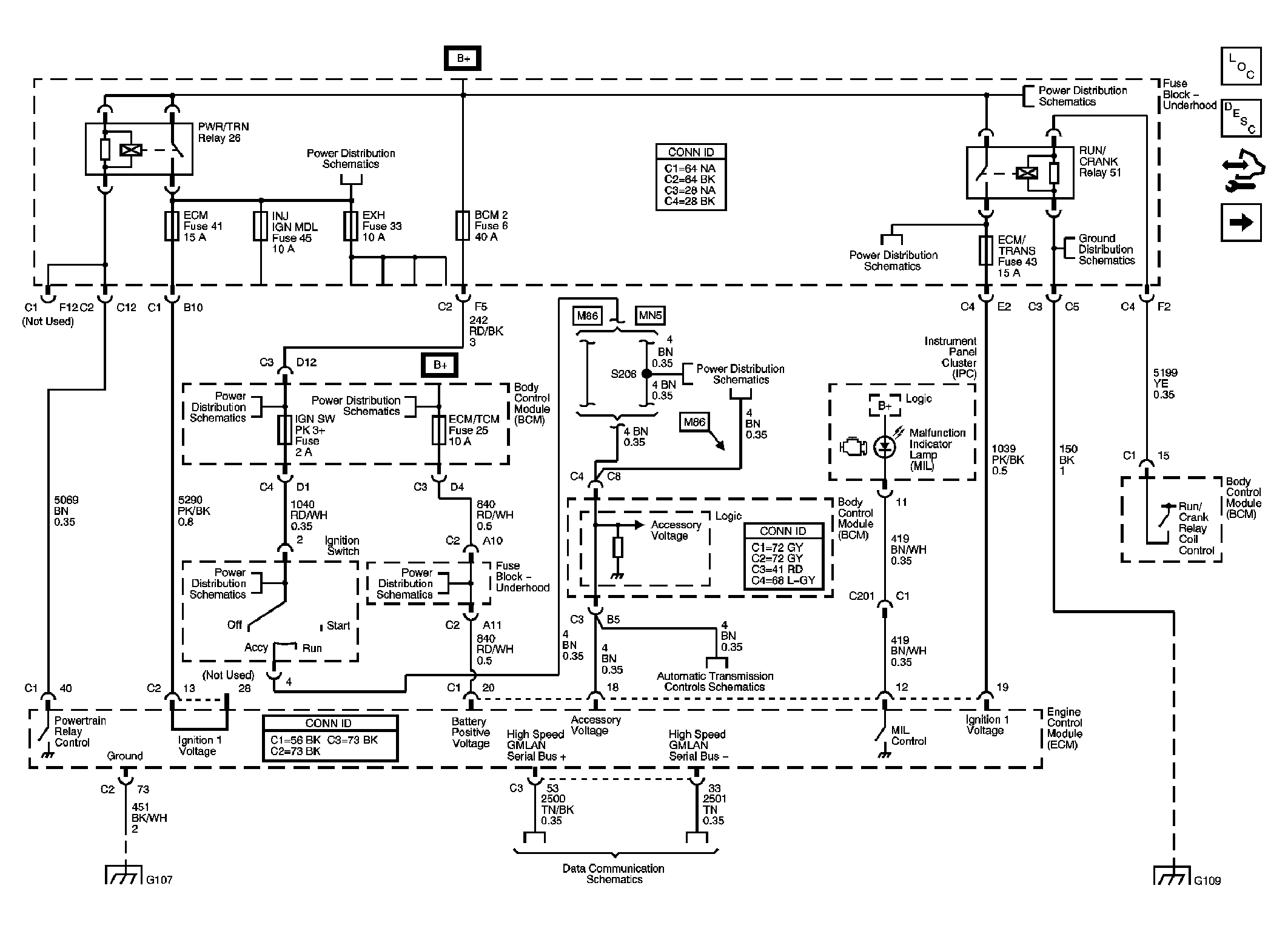

Fig 1: Power, Ground, MIL, and DLC

Courtesy of GENERAL MOTORS CORP.

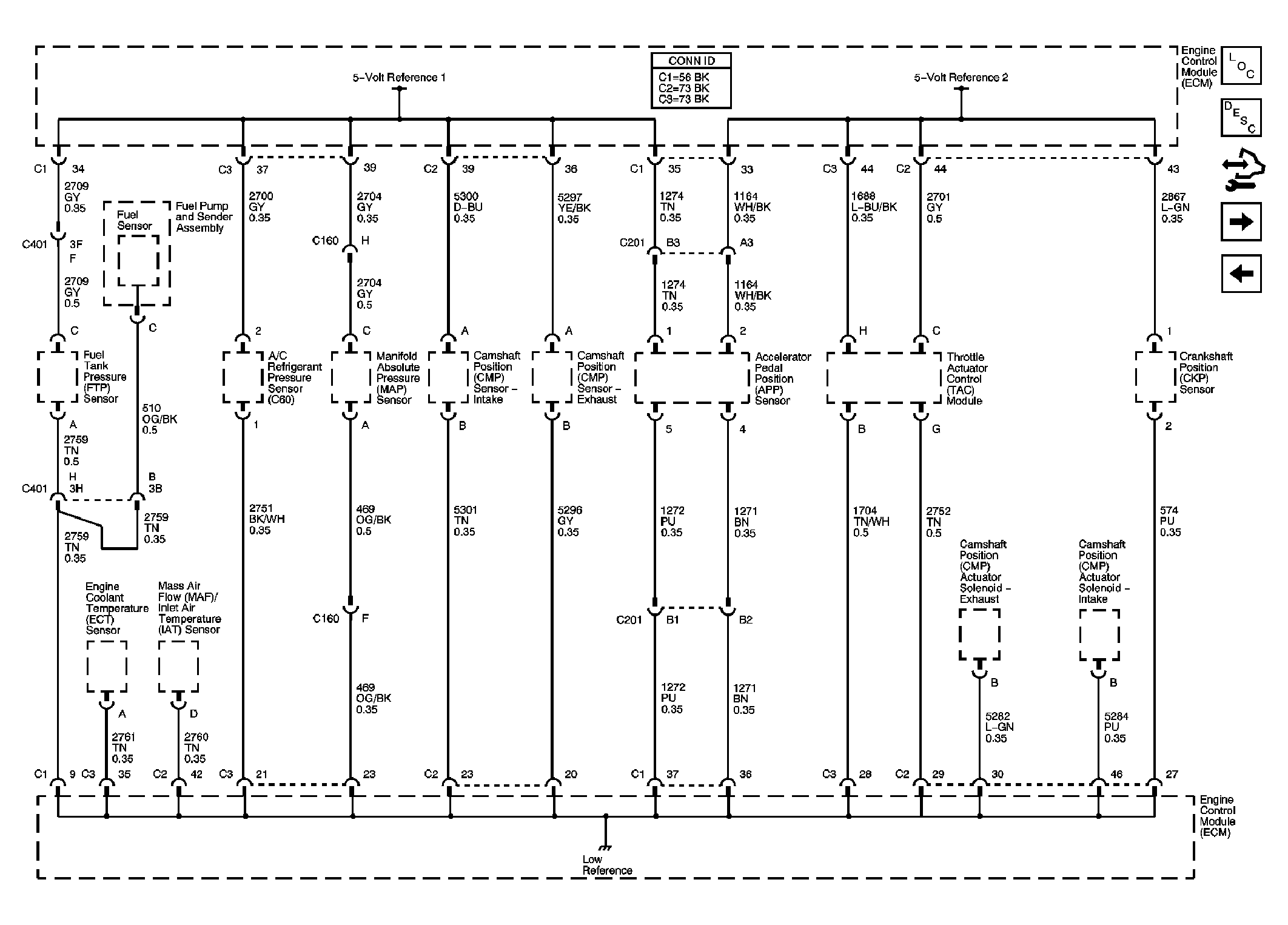

Fig 2: Engine Data Sensors - 5-Volt and Low References

Courtesy of GENERAL MOTORS CORP.

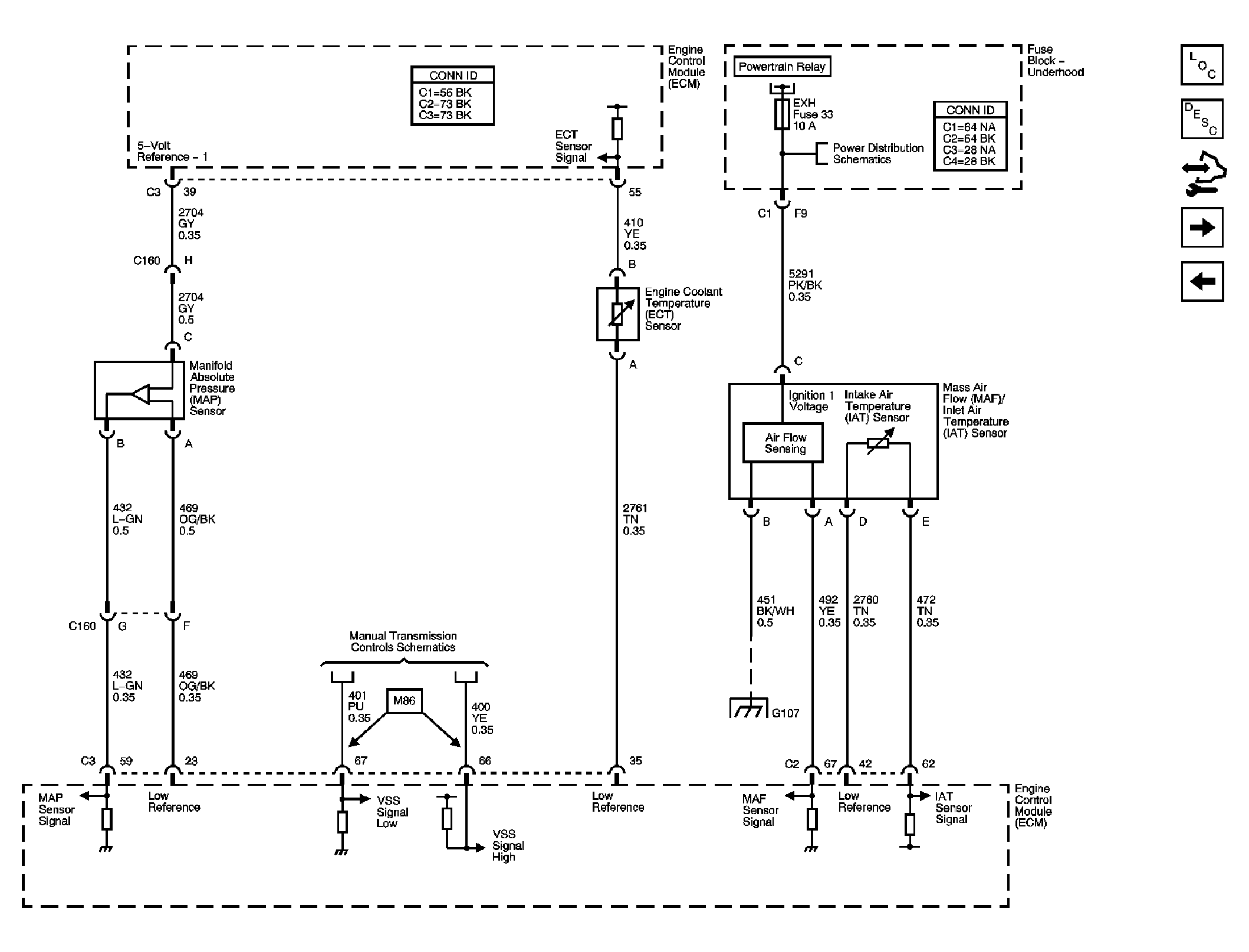

Fig 3: Engine Data Sensors - Pressure, Temp, and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

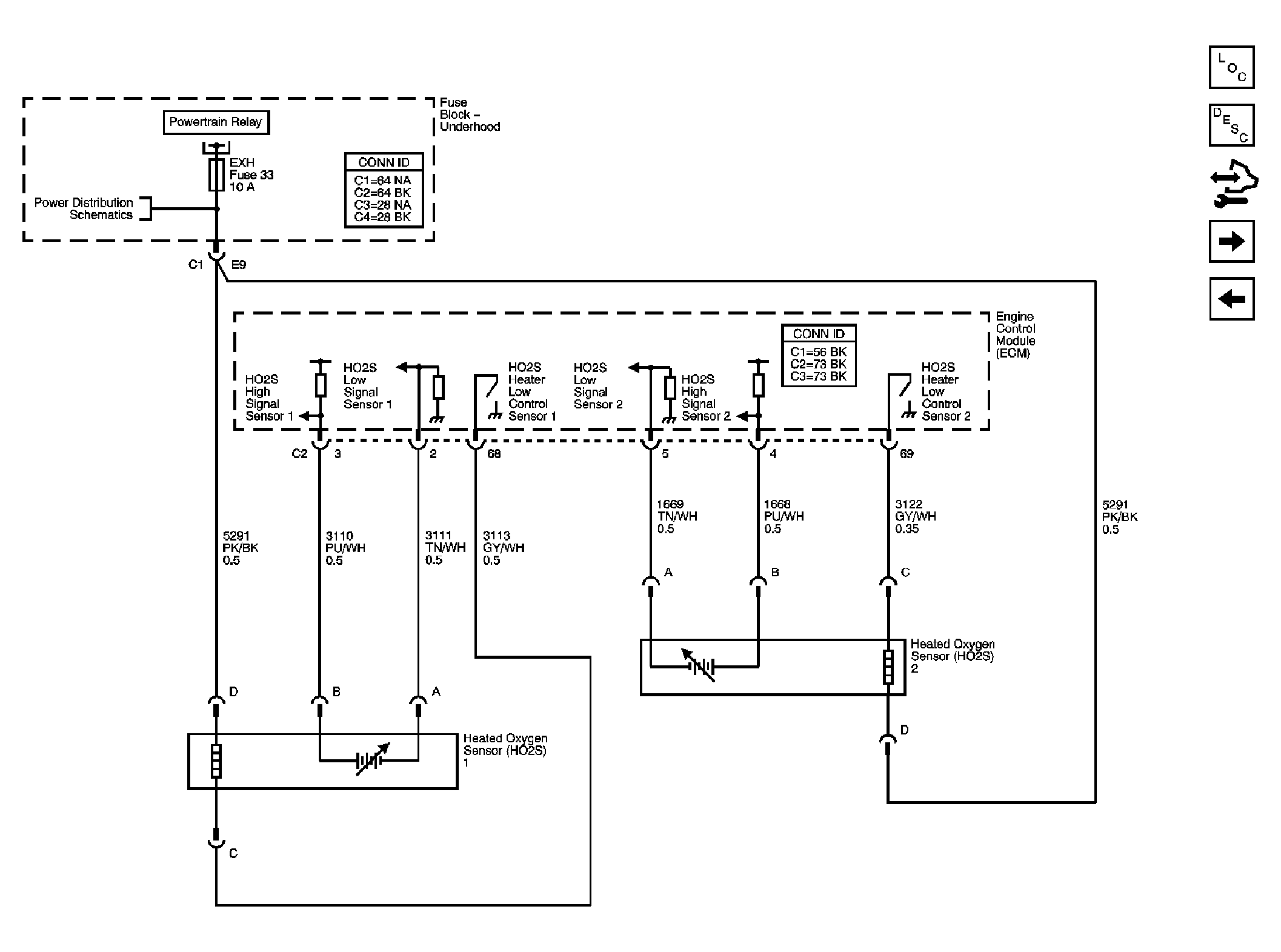

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

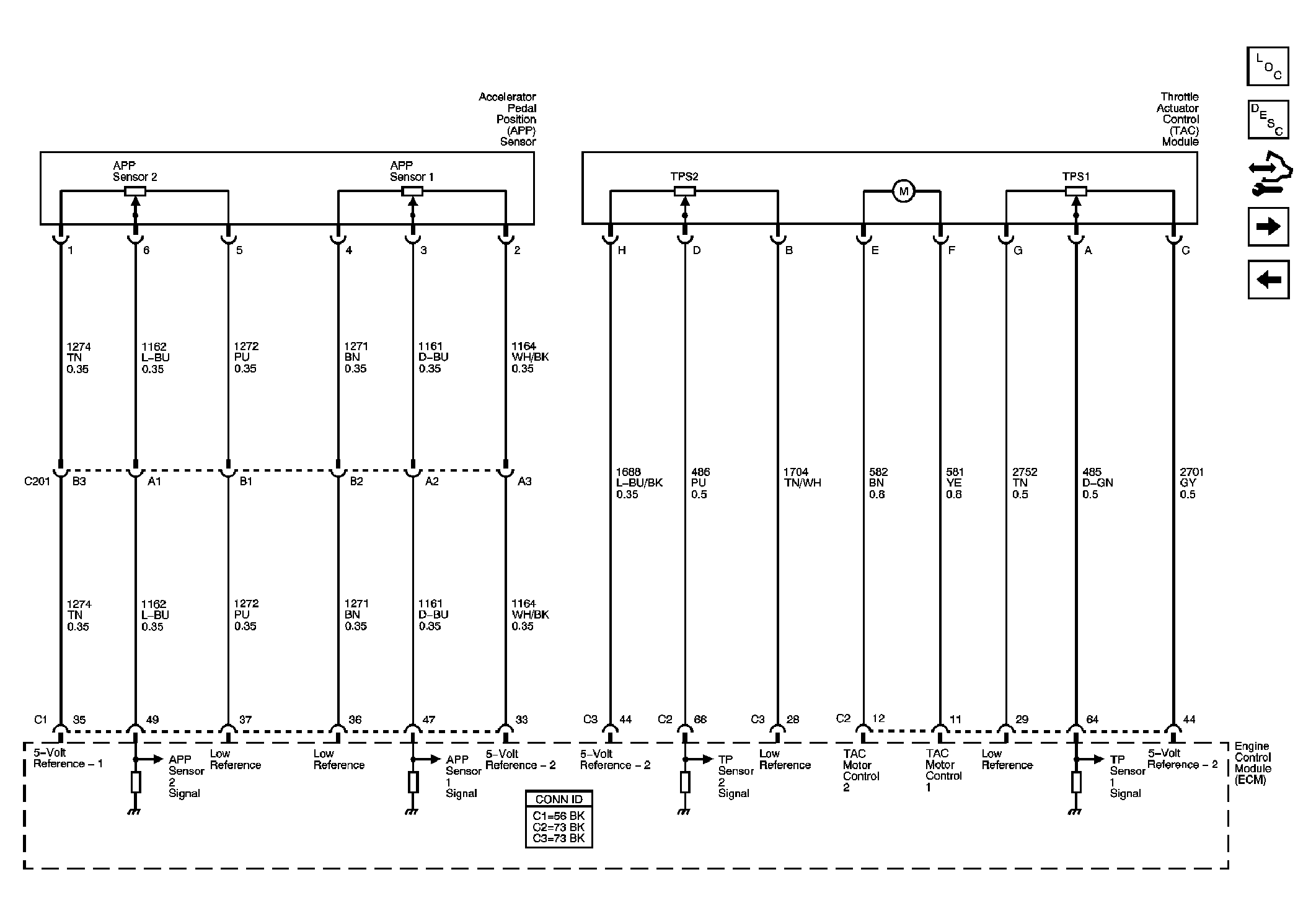

Fig 5: Engine Data Sensors - APP and TAC

Courtesy of GENERAL MOTORS CORP.

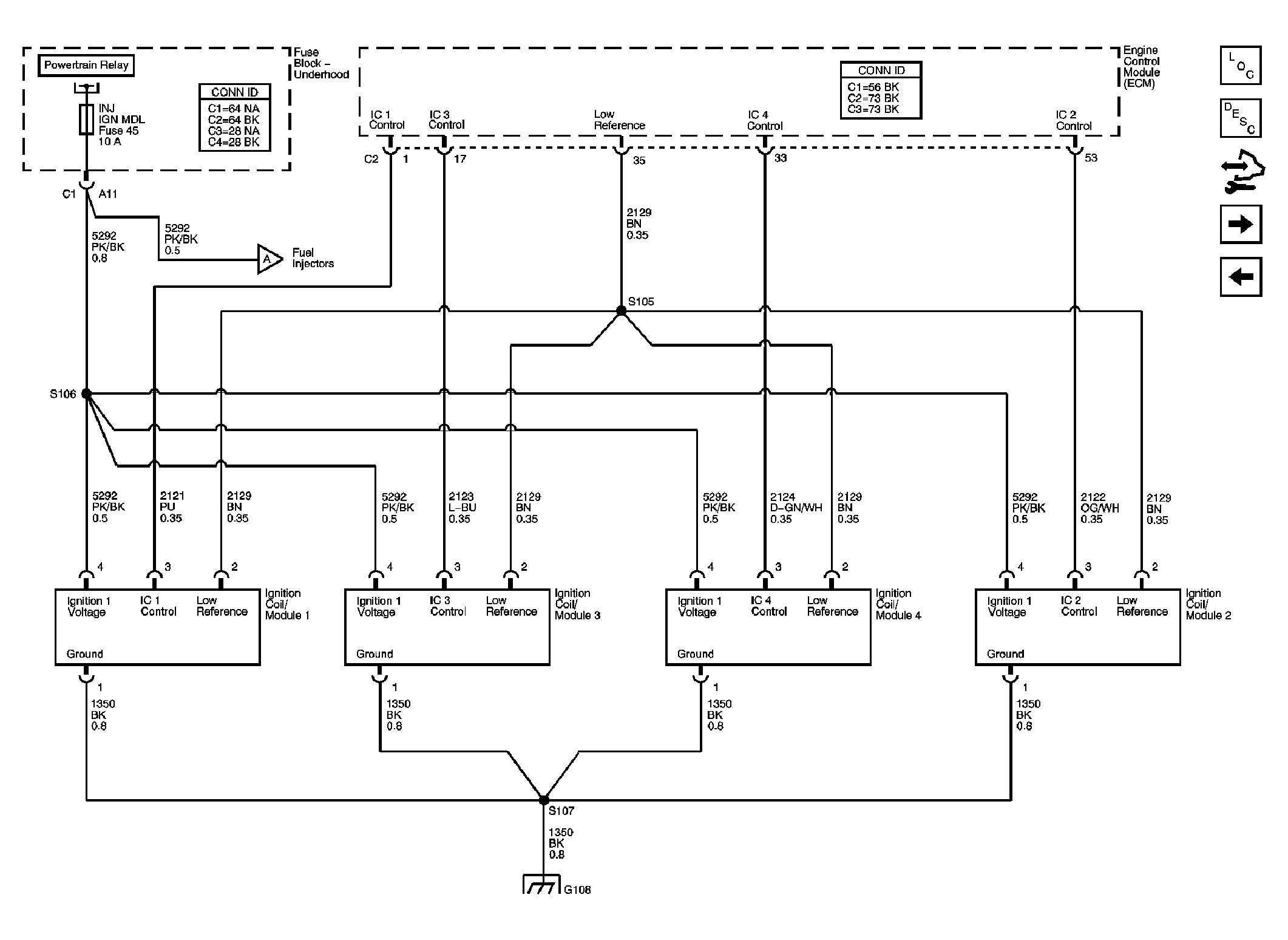

Fig 6: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

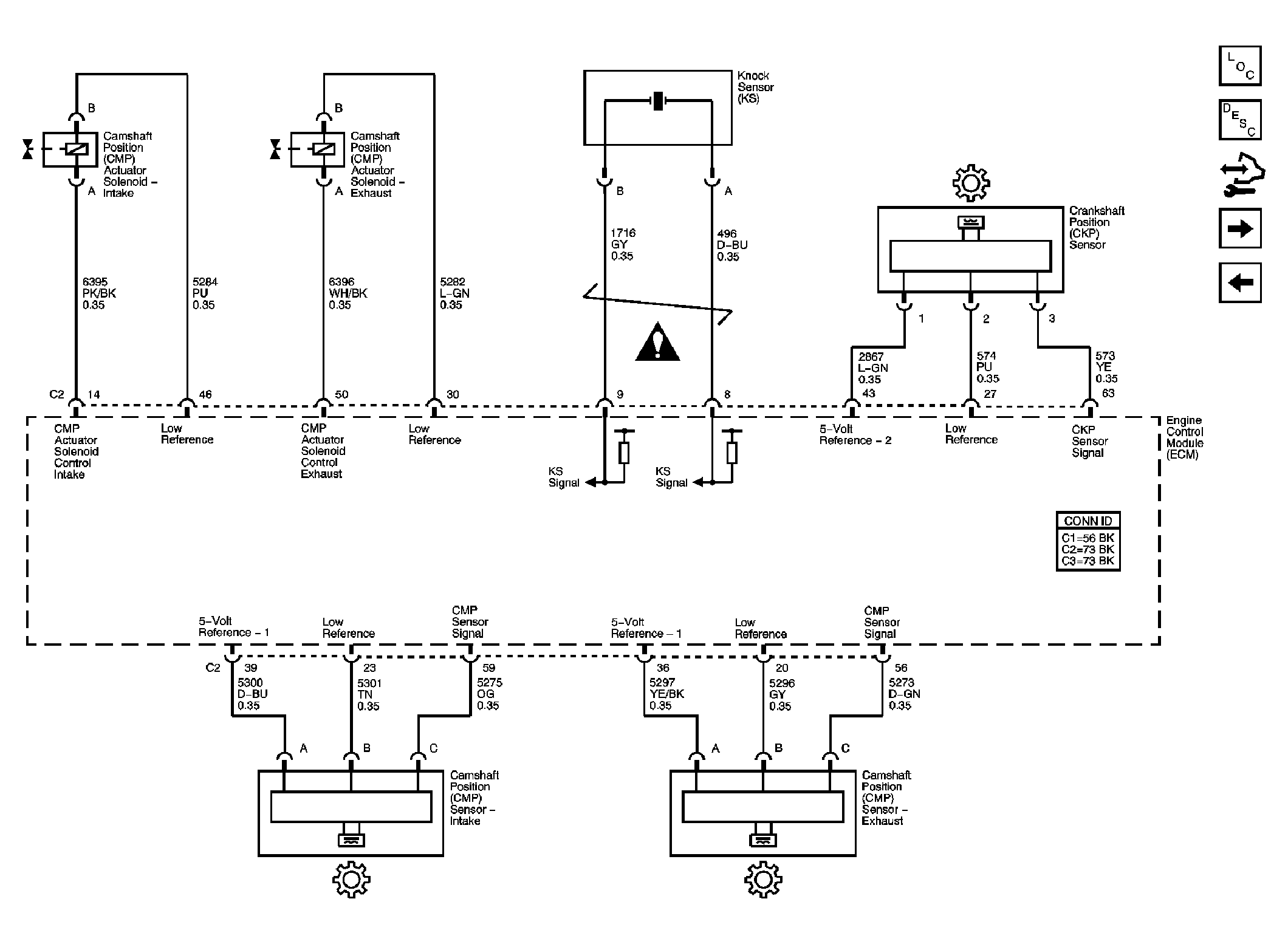

Fig 7: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

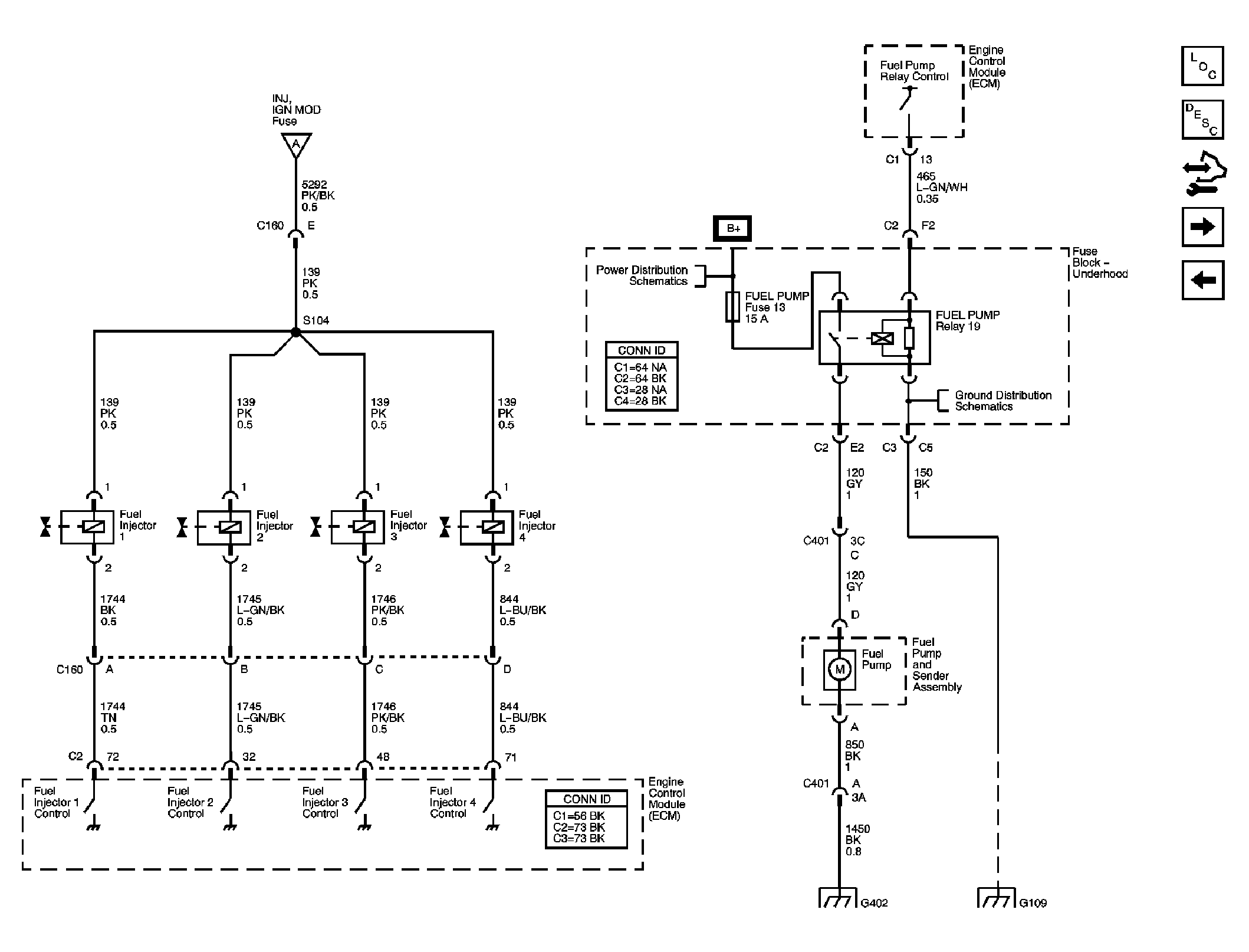

Fig 8: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

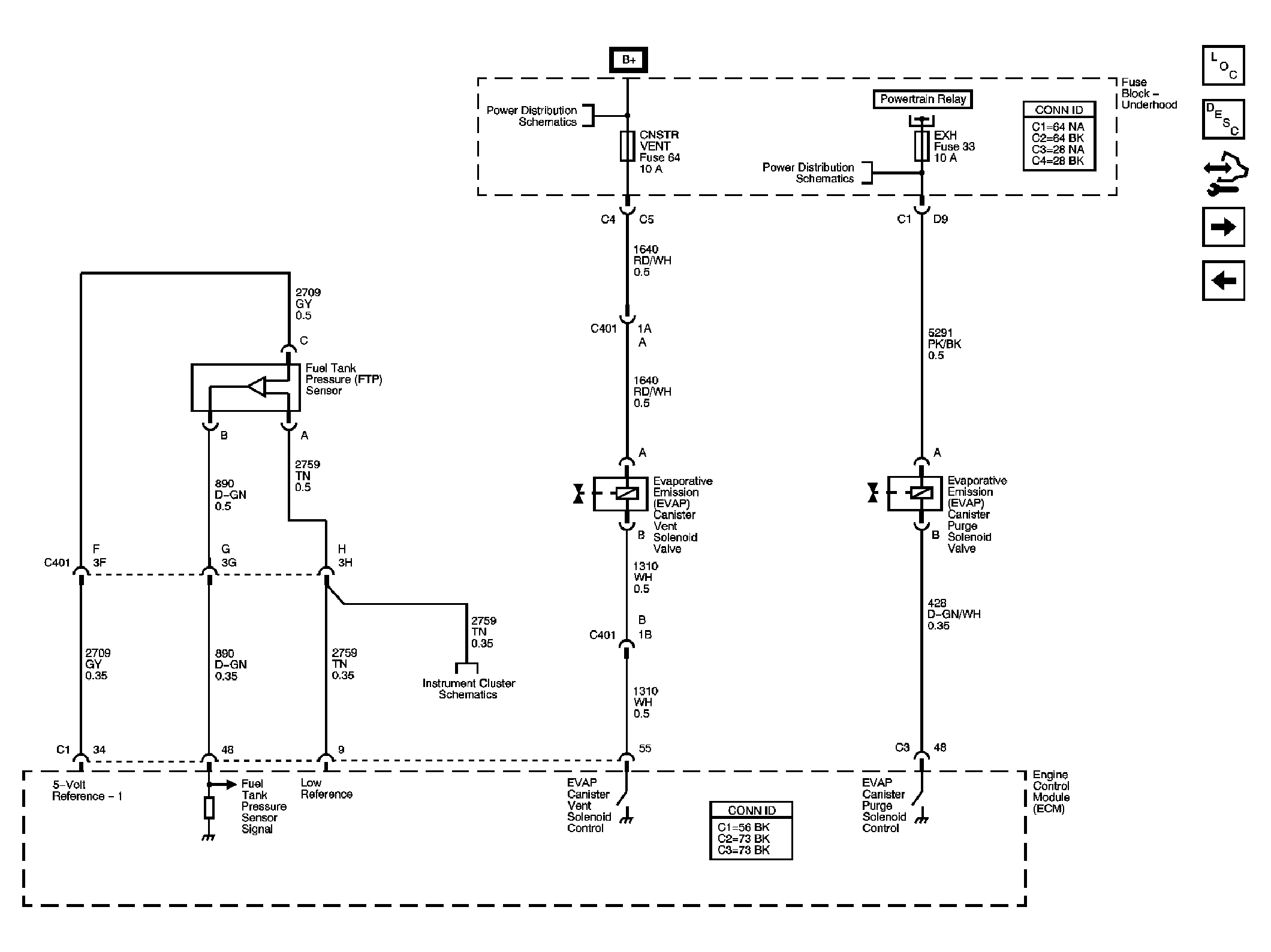

Fig 9: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

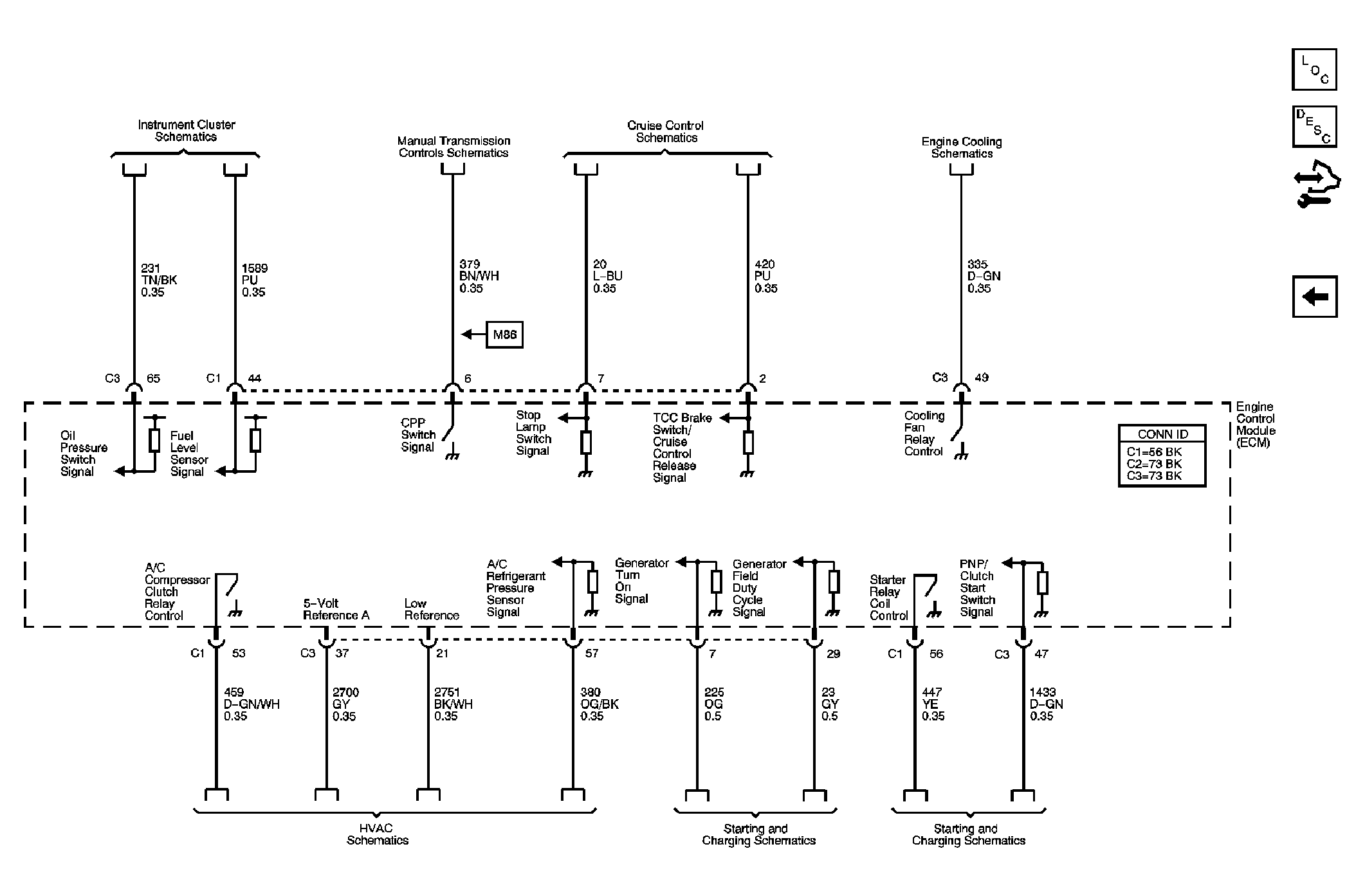

Fig 10: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
