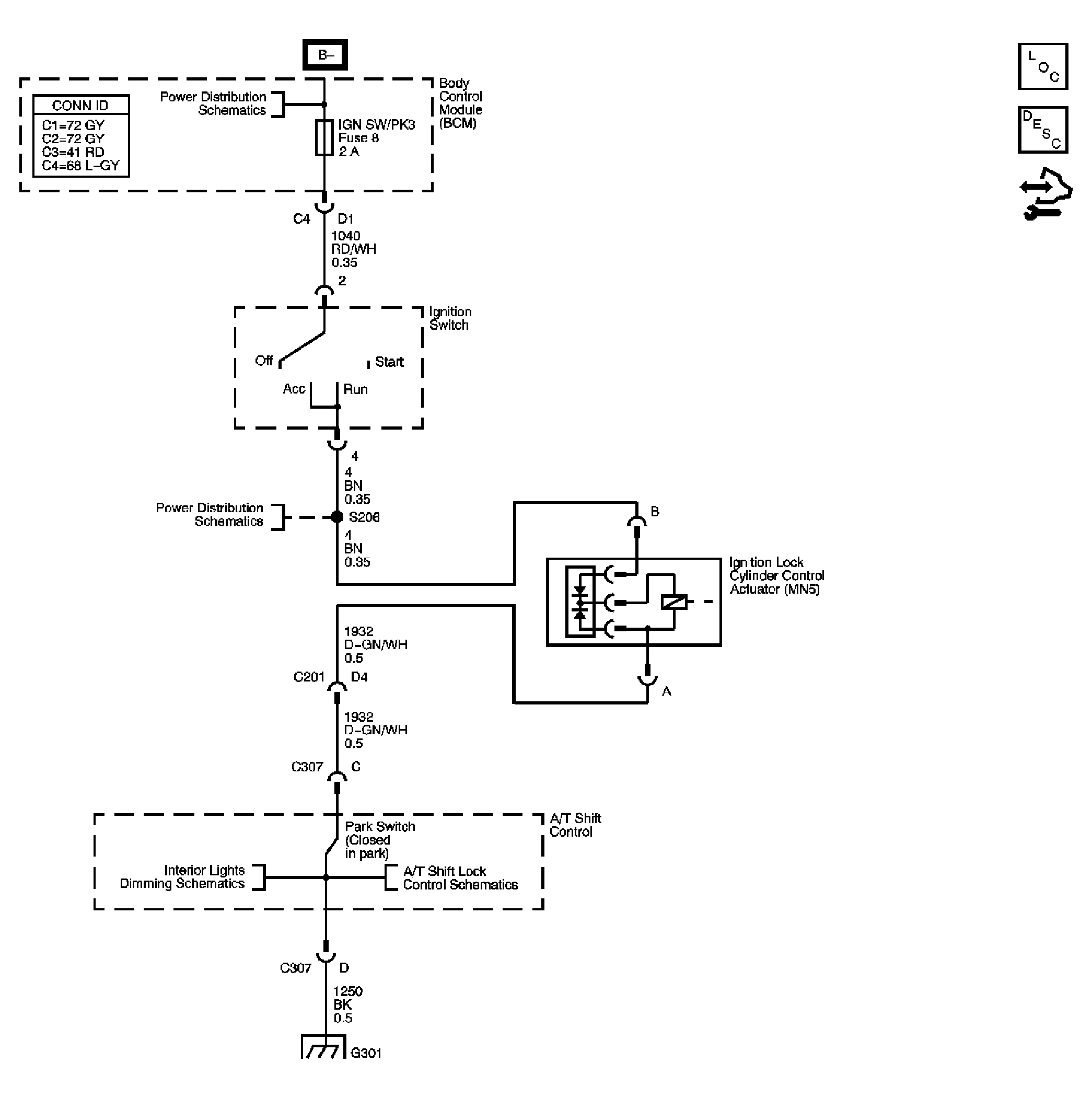

Home >> Chevrolet >> 2007 >> HHR LS, Standard >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Ignition Lock Schematics
