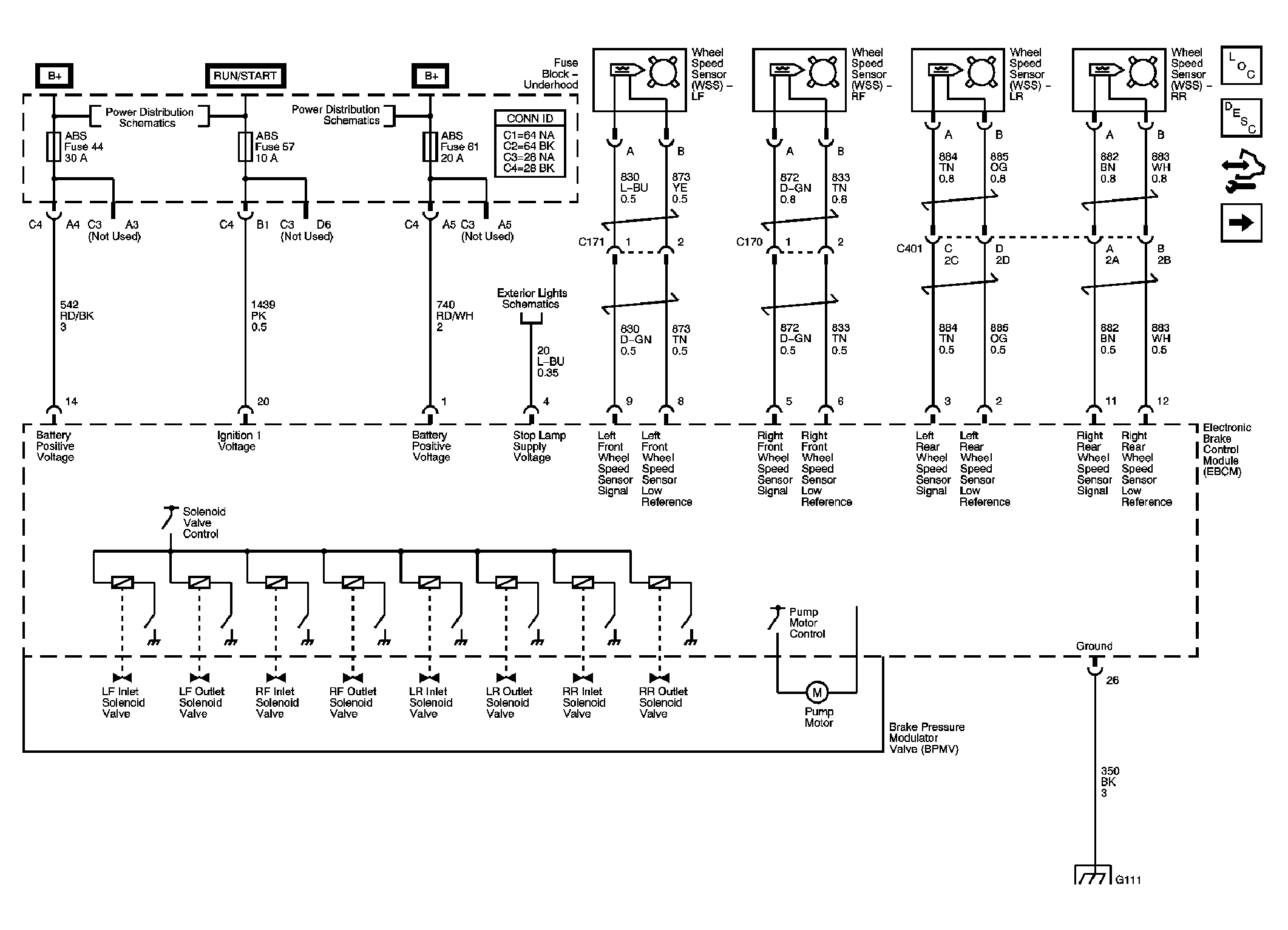

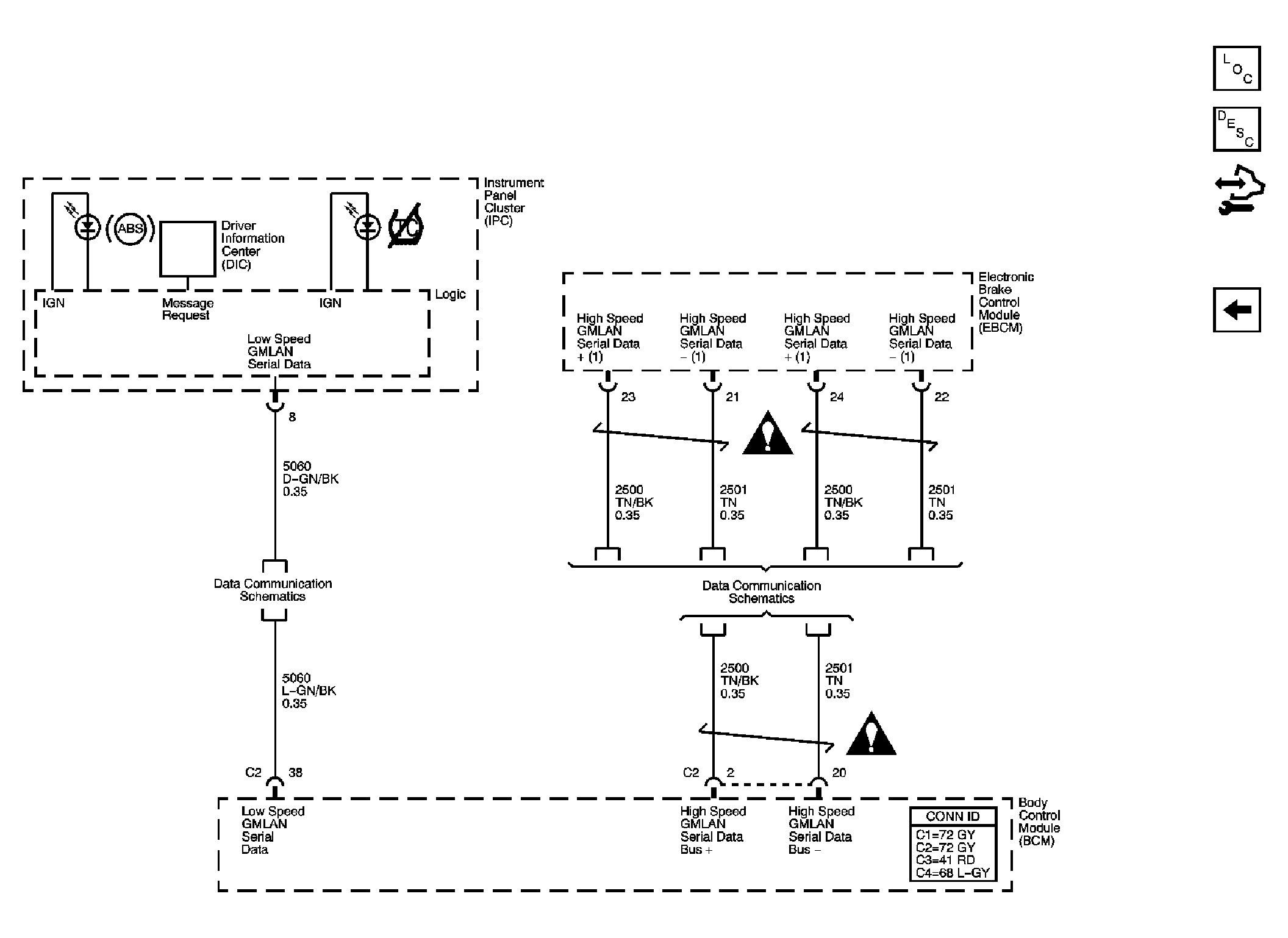

Home >> Chevrolet >> 2007 >> HHR LS, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System & Engine Traction System >> Schematic and Routing Diagrams >> Antilock Brake System Schematics
