Heated/Cooled Seat Schematics

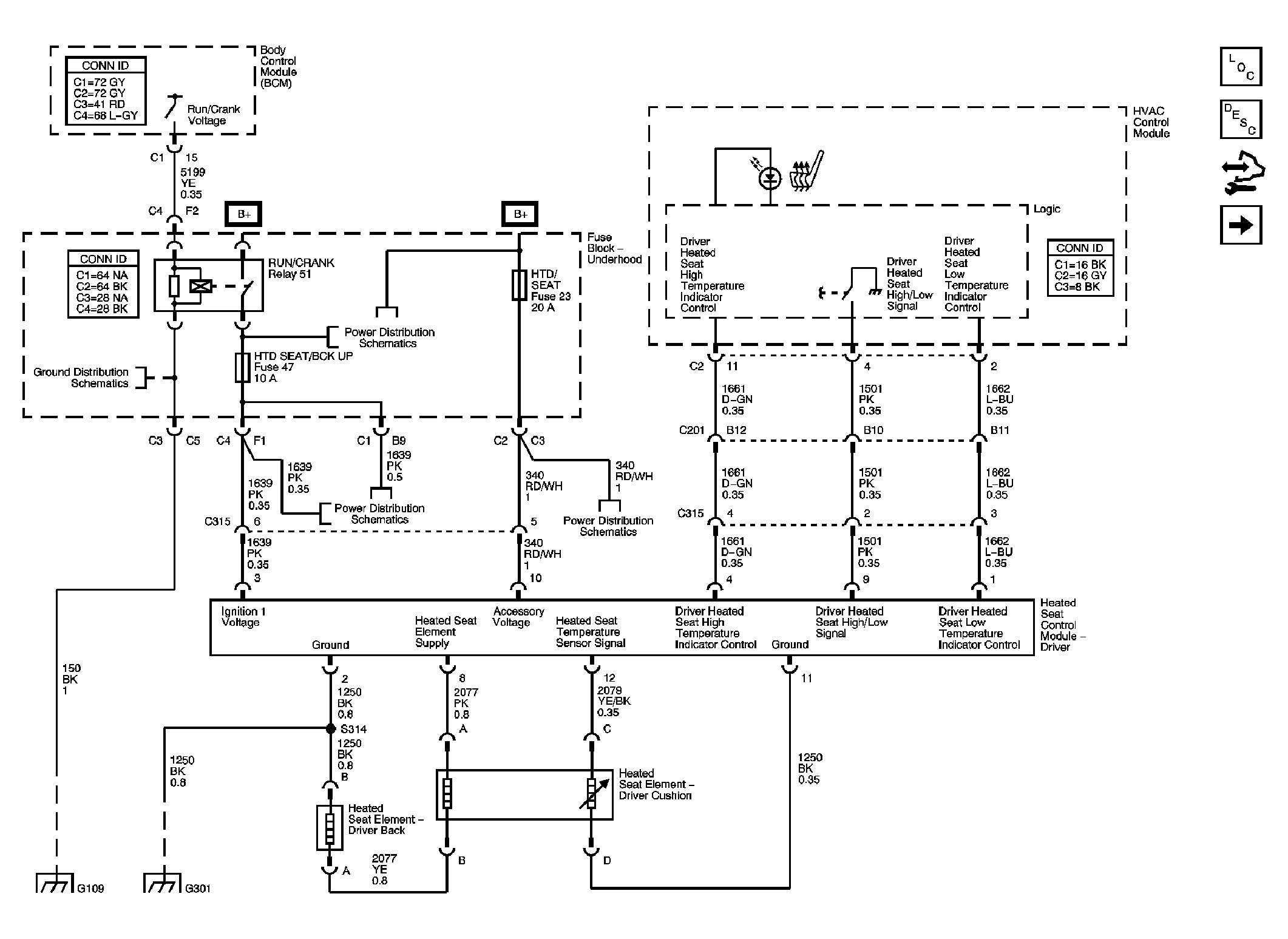

Fig 1: Heated Seat Schematic (Driver)

GM1769836

Courtesy of GENERAL MOTORS CORP.

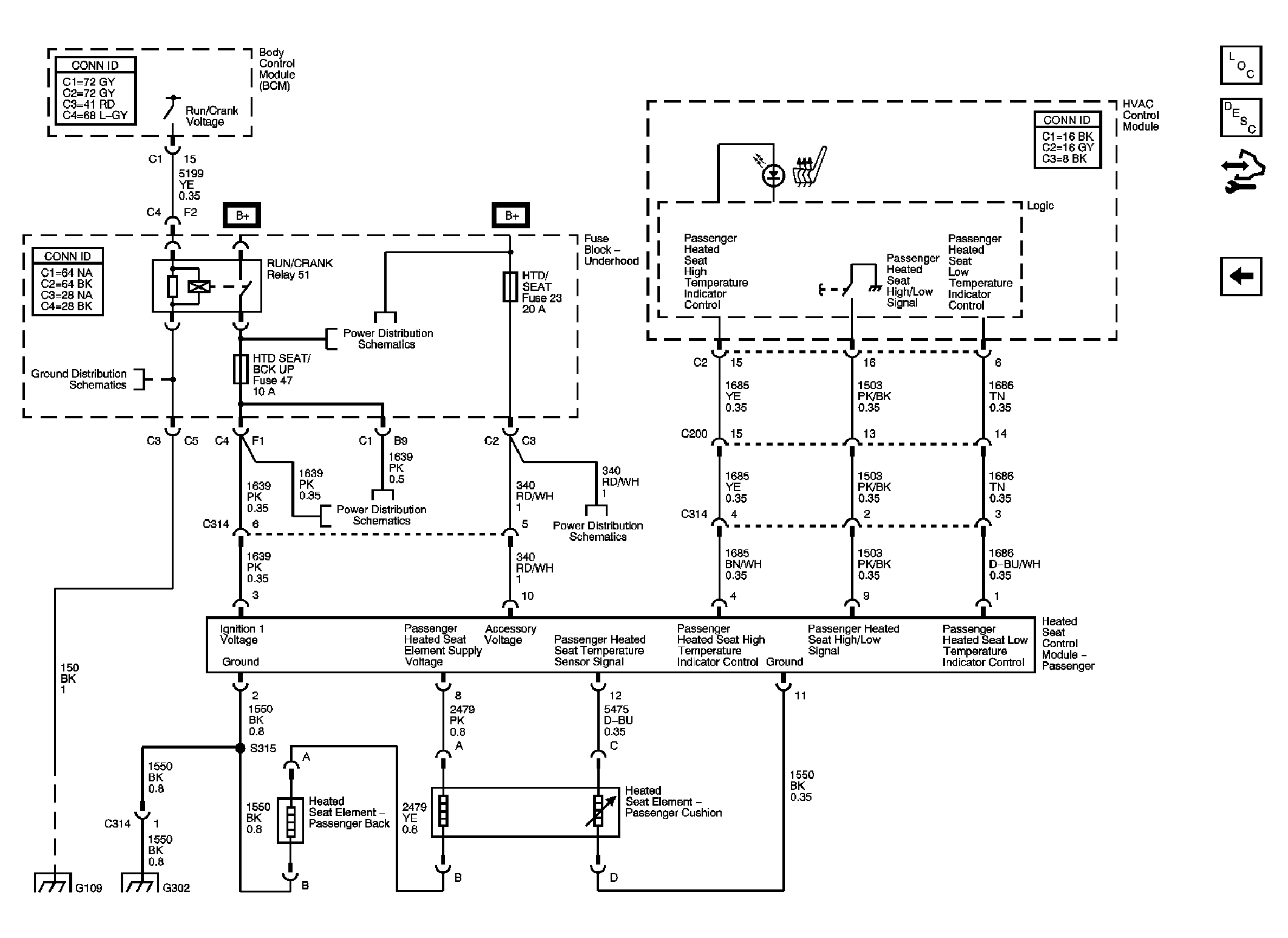

Fig 2: Heated Seat Schematic (Passenger)

GM1769838

Courtesy of GENERAL MOTORS CORP.
