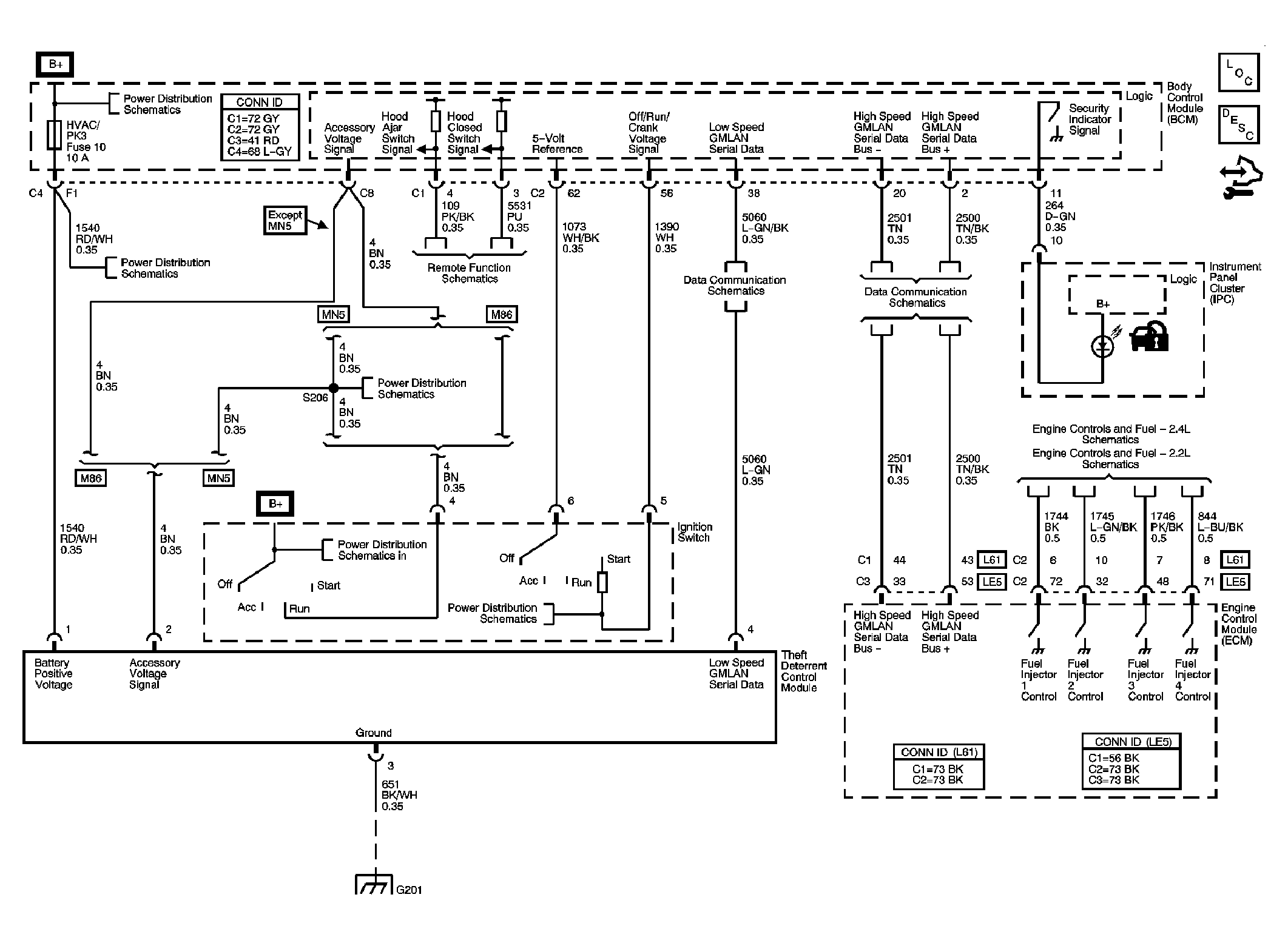

Home >> Chevrolet >> 2007 >> HHR LS, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic and Routing Diagrams >> Immobilizer Schematics
