Front Wheelhouse Liner Replacement

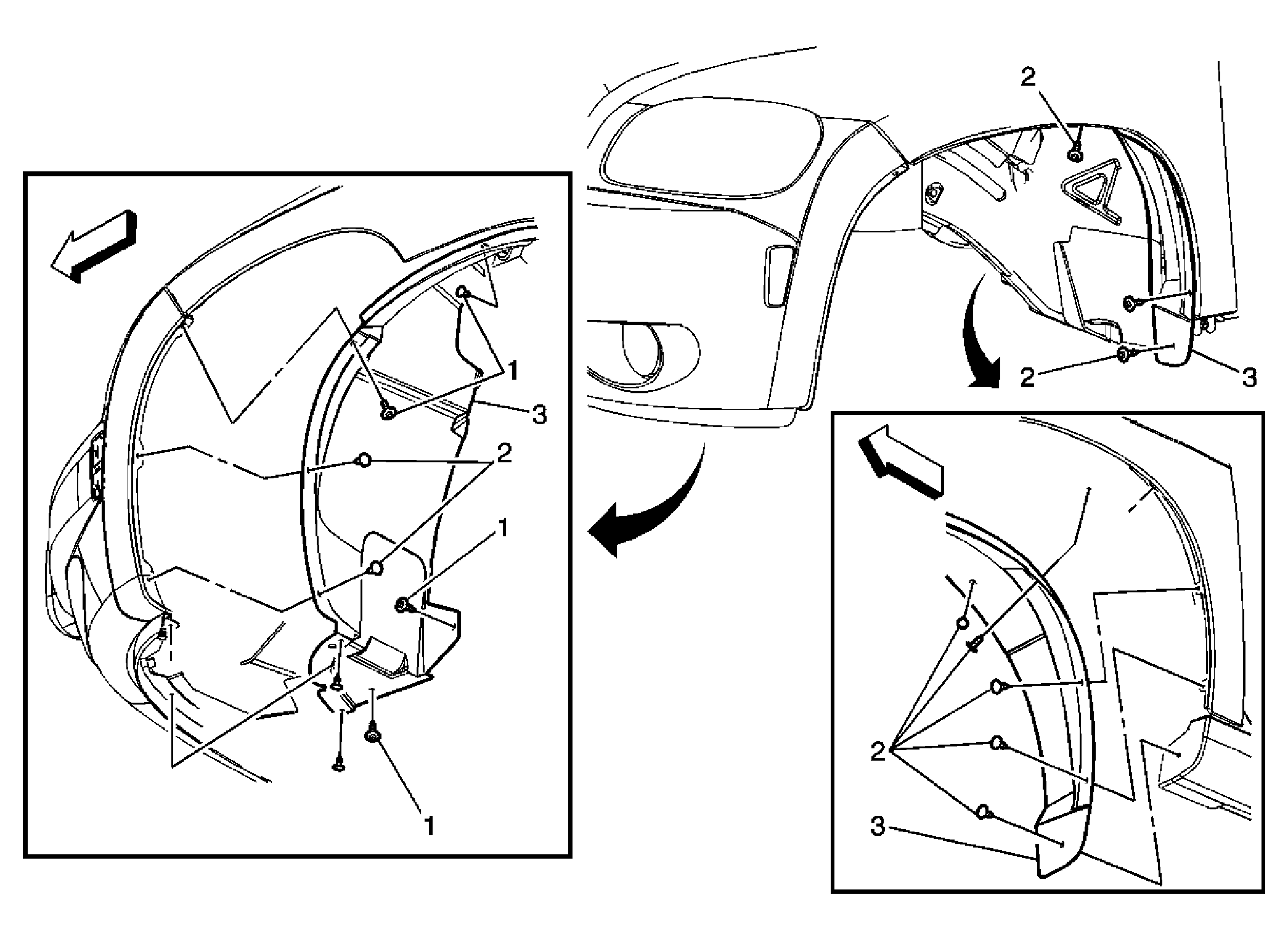

Fig 1: Wheelhouse Liner Replacement - Front
GM1596336Courtesy of GENERAL MOTORS CORP.
Front Wheelhouse Liner Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front wheel. Refer to Tire and Wheel Removal and Installation .
1 Front Liner Bolts (Qty: 4)

Tighten:  10 N.m (89 lb in)
2 Front Wheelhouse Liner Retainers (Qty: 10)
3 Front Wheelhouse Liner
