Liftgate Inside Pull Handle Replacement

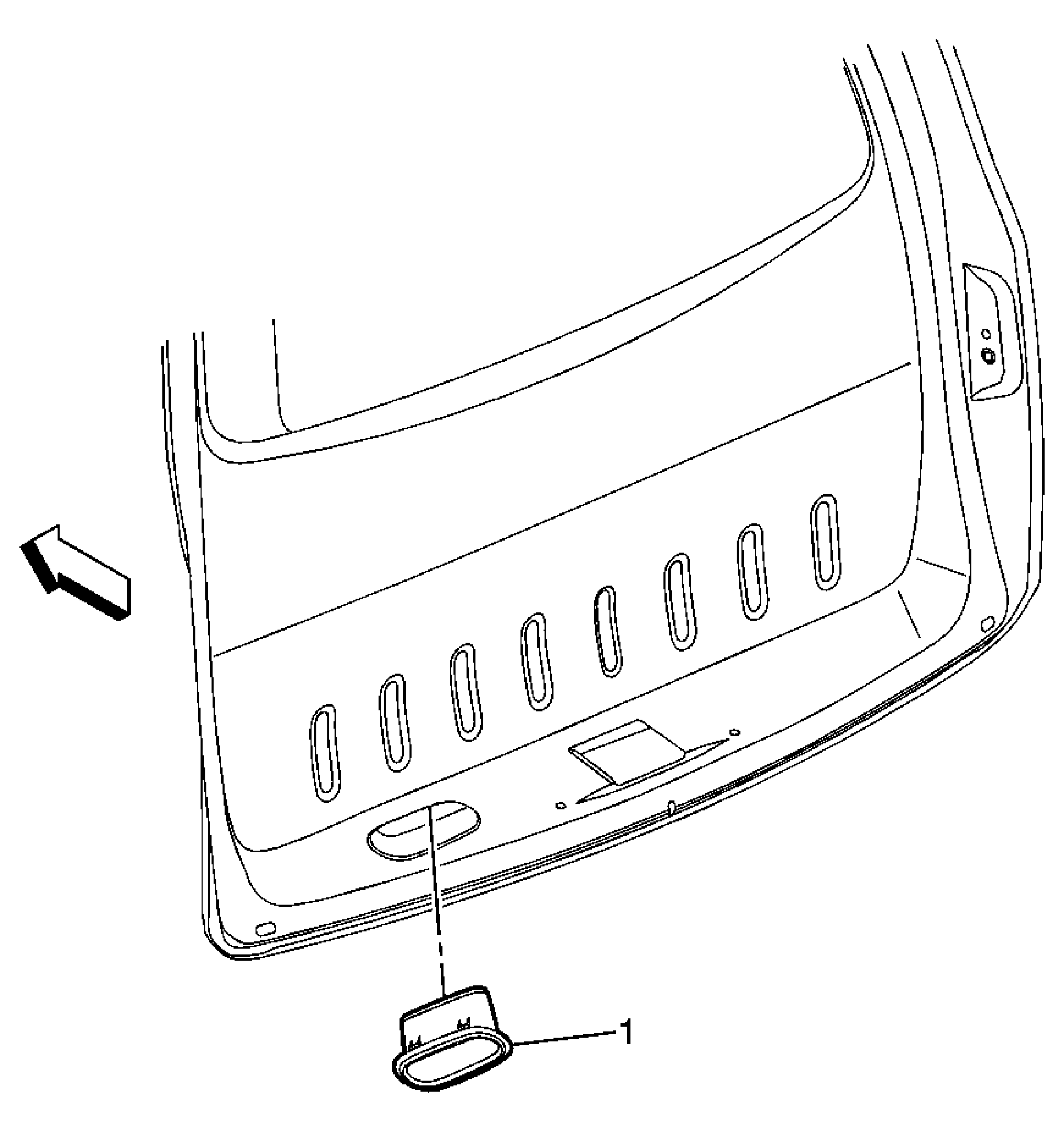

Fig 1: Liftgate Inside Pull Handle
GM1614234Courtesy of GENERAL MOTORS CORP.
Liftgate Inside Pull Handle Replacement

Callout Component Name
Preliminary Procedure:
Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
1 Liftgate Inside Pull Handle
Tip:  Remove from the back side of the trim panel.
