Release Systems Schematics

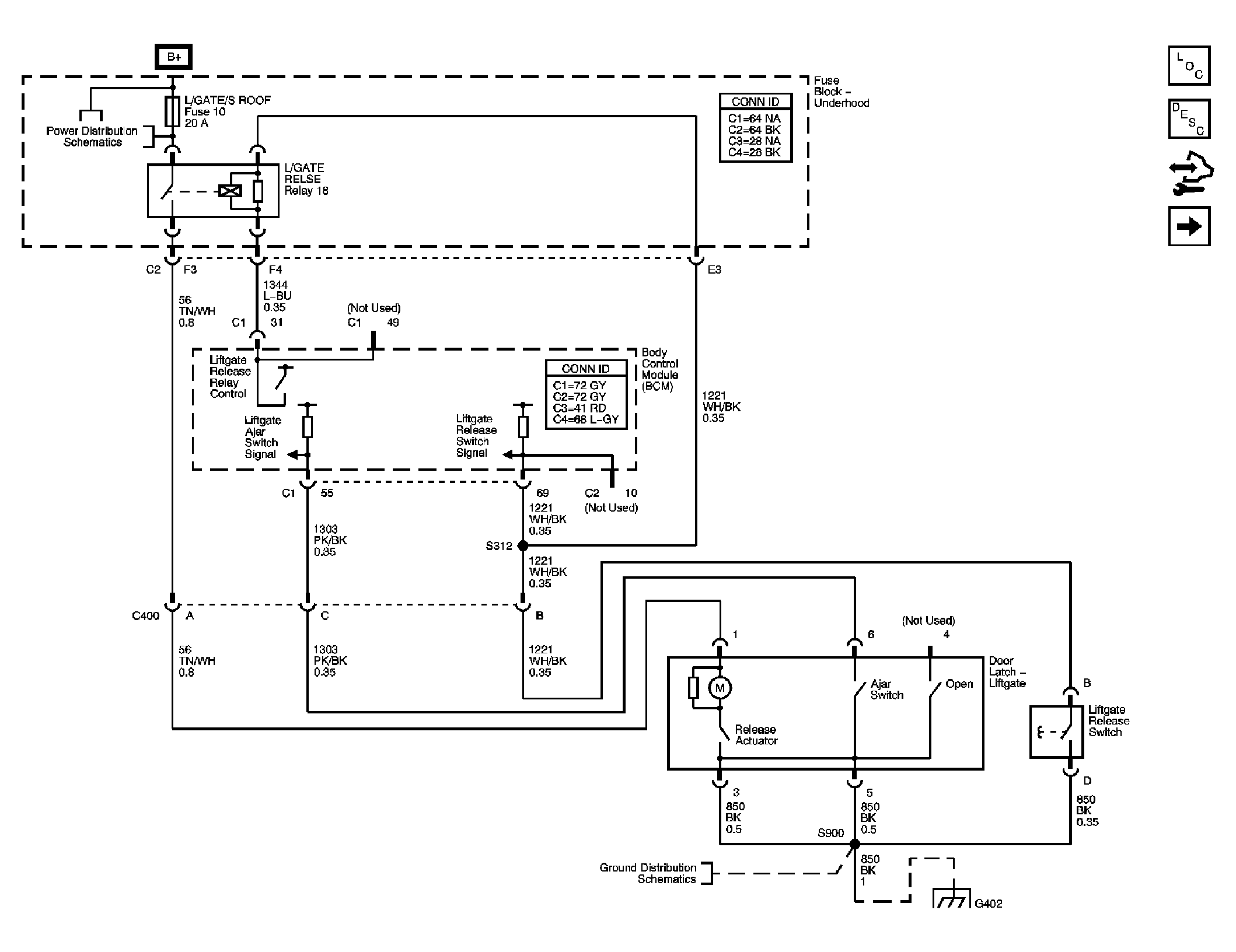

Fig 1: Liftgate Schematics (Except Panel Van)
GM1769428Courtesy of GENERAL MOTORS CORP.

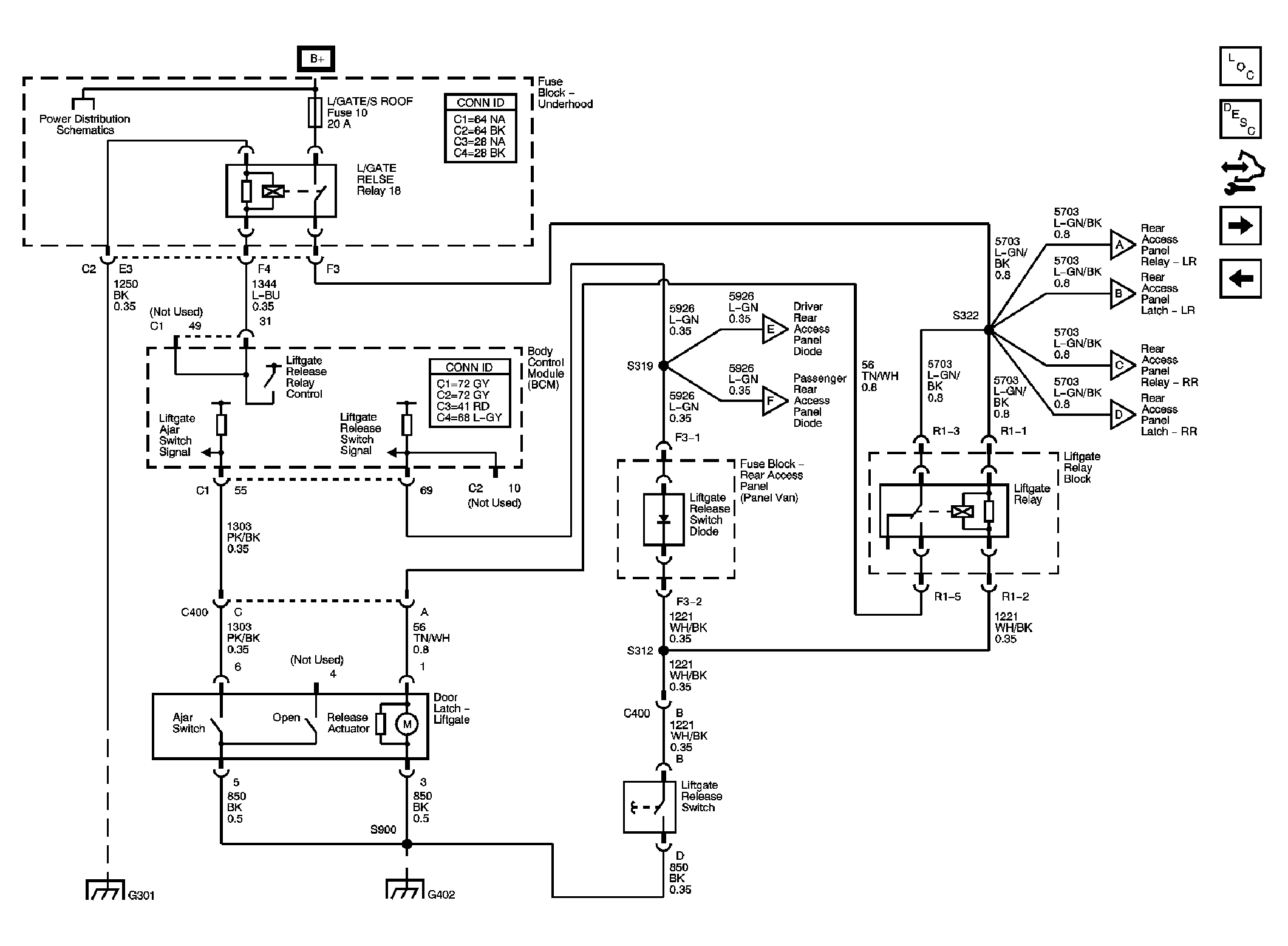

Fig 2: Liftgate/Rear Access Panel Schematics (Panel Van) 1 of 2
GM1800688Courtesy of GENERAL MOTORS CORP.

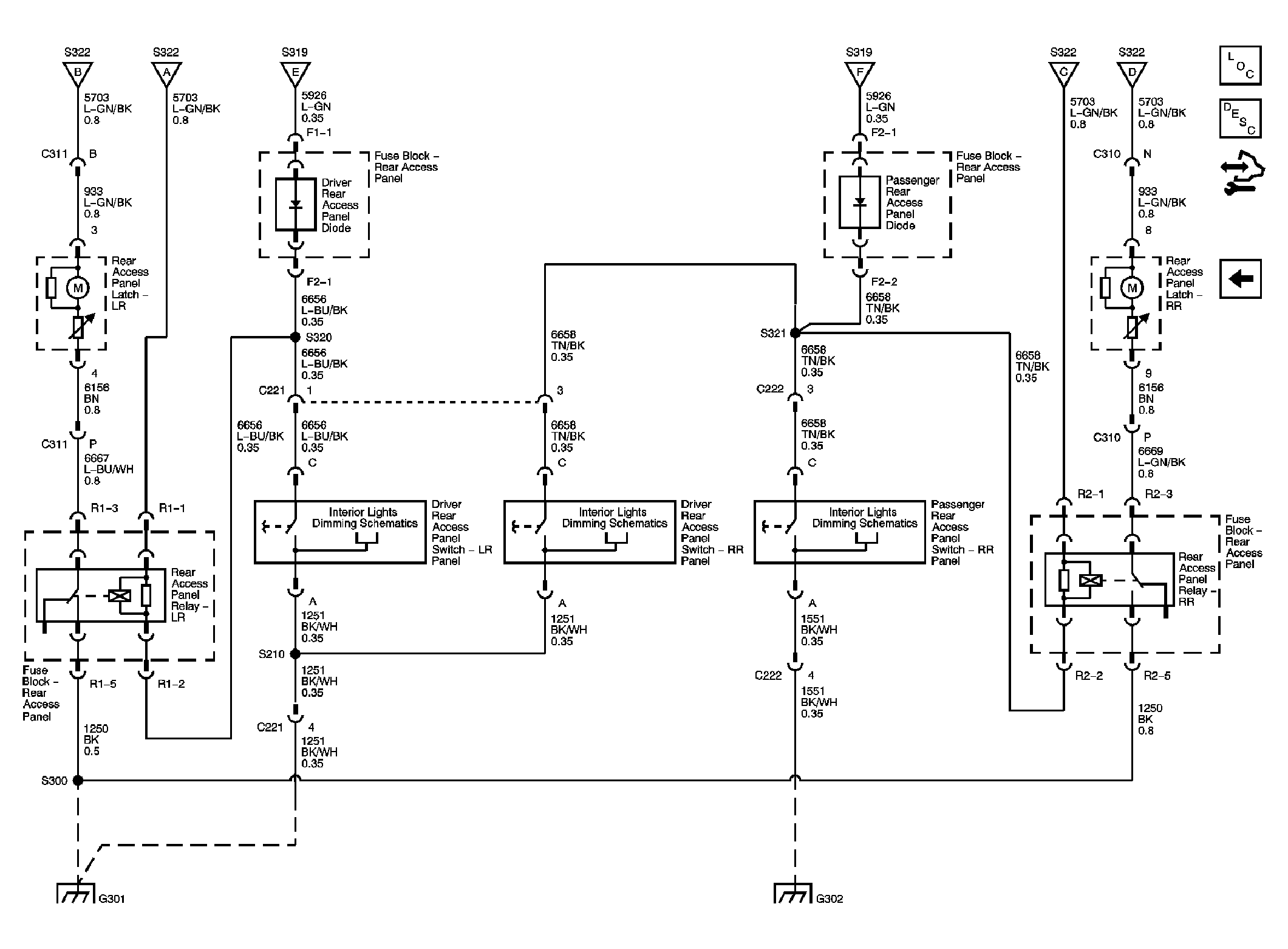

Fig 3: Liftgate/Rear Access Panel Schematics (Panel Van) 2 of 2
GM1800695Courtesy of GENERAL MOTORS CORP.
