Vehicle Access Component Views

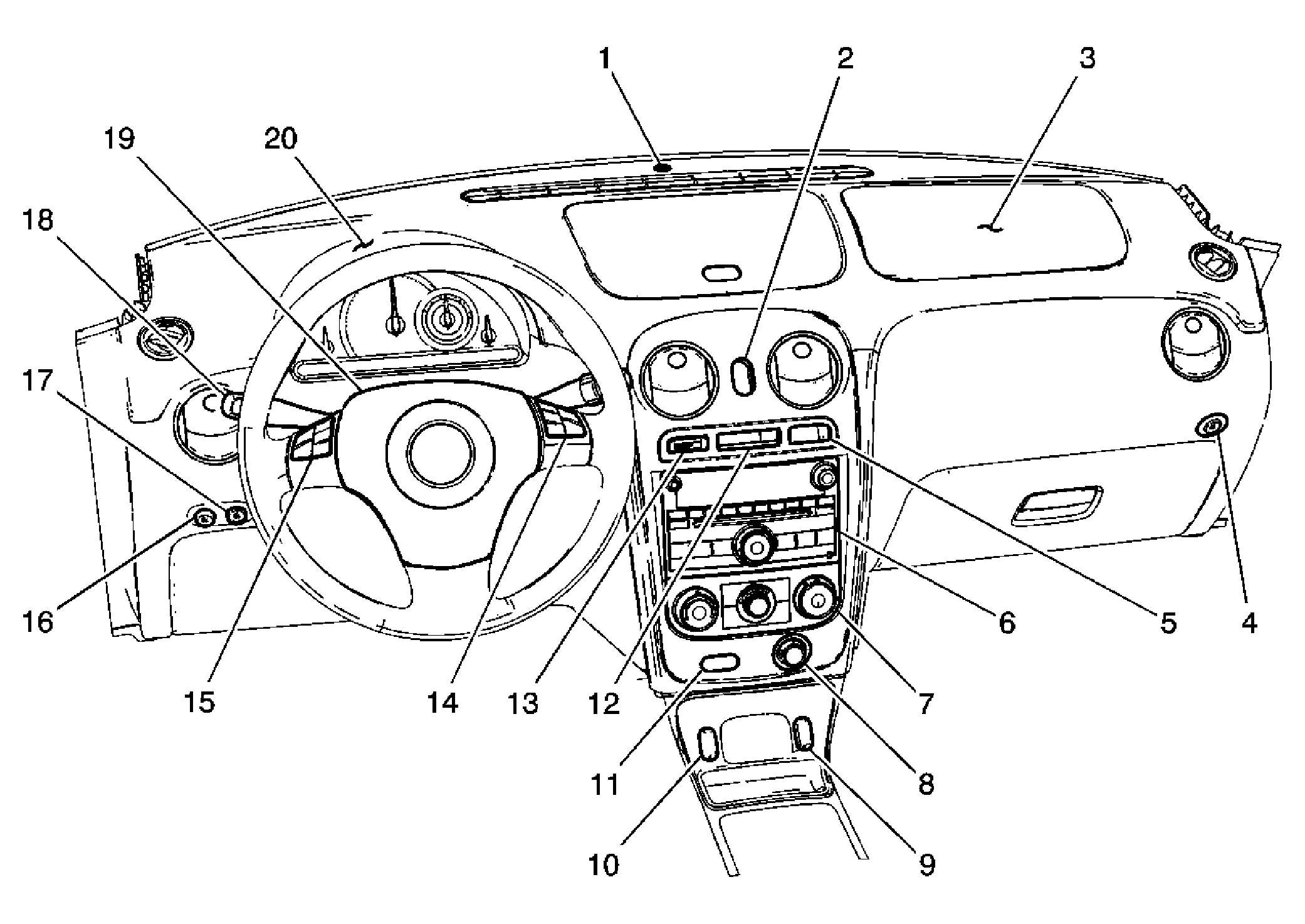

Fig 1: Instrument Panel (I/P) Components

GM1863476

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Hazard Switch
3	Inflatable Restraint I/P Module
4	Passenger Rear Access Panel Switch - RR Panel (Panel Van)
5	Fog Lamp Switch (T37)
6	Radio/Navigation Unit
7	HVAC Control Assembly
8	Cigar Lighter (DT4)/Power Outlet (w/o DT4)
9	Window Switch - Front Passenger/Window Switch - RR
10	Master Window Switch
11	Rear Wiper/Washer Switch
12	Inflatable Restraint Passenger Airbag ON/OFF Indicator
13	I/P Dimmer Switch
14	Steering Wheel Controls - Right (UK3)
15	Steering Wheel Controls - Left
16	Driver Rear Access Panel Switch - LR Panel (Panel Van)
17	Driver Rear Access Panel Switch - RR Panel (Panel Van)
18	Turn Signal/Multifunction Switch
19	Inflatable Restraint Steering Wheel Module
20	Instrument Panel Cluster (IPC)

Fig 2: Driver Door Components

GM1651951

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror Motor - Driver
3	Door Lock Switch - Driver
4	Outside Rearview Mirror Switch
5	Speaker - LF Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) Left (ASF)
8	Door Latch - Driver

Fig 3: Passenger Door Components

GM1651956

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Motor - Passenger
2	Door Frame
3	Door Latch - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) Right (ASF)
5	Speaker - RF Door
6	Window Motor - Passenger
7	Door Lock Switch - Passenger

Fig 4: LR Door Components

GM1651958

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch - LR (Except Panel Van)
3	Window Motor - LR (Except Panel Van)
4	Speaker - LR Door
5	Door Latch - LR (Except Panel Van), Rear Access Panel Latch - LR (Panel Van)

Fig 5: RR Door Components

GM1651940

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch - RR (Except Panel Van), Rear Access Panel Latch - RR (Panel Van)
3	Speaker - RR Door
4	Window Motor - RR (Except Panel Van)
5	Window Switch - RR (Except Panel Van)

Fig 6: Liftgate Components

GM1652104

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Door Latch - Liftgate
3	Rear Window Wiper Motor

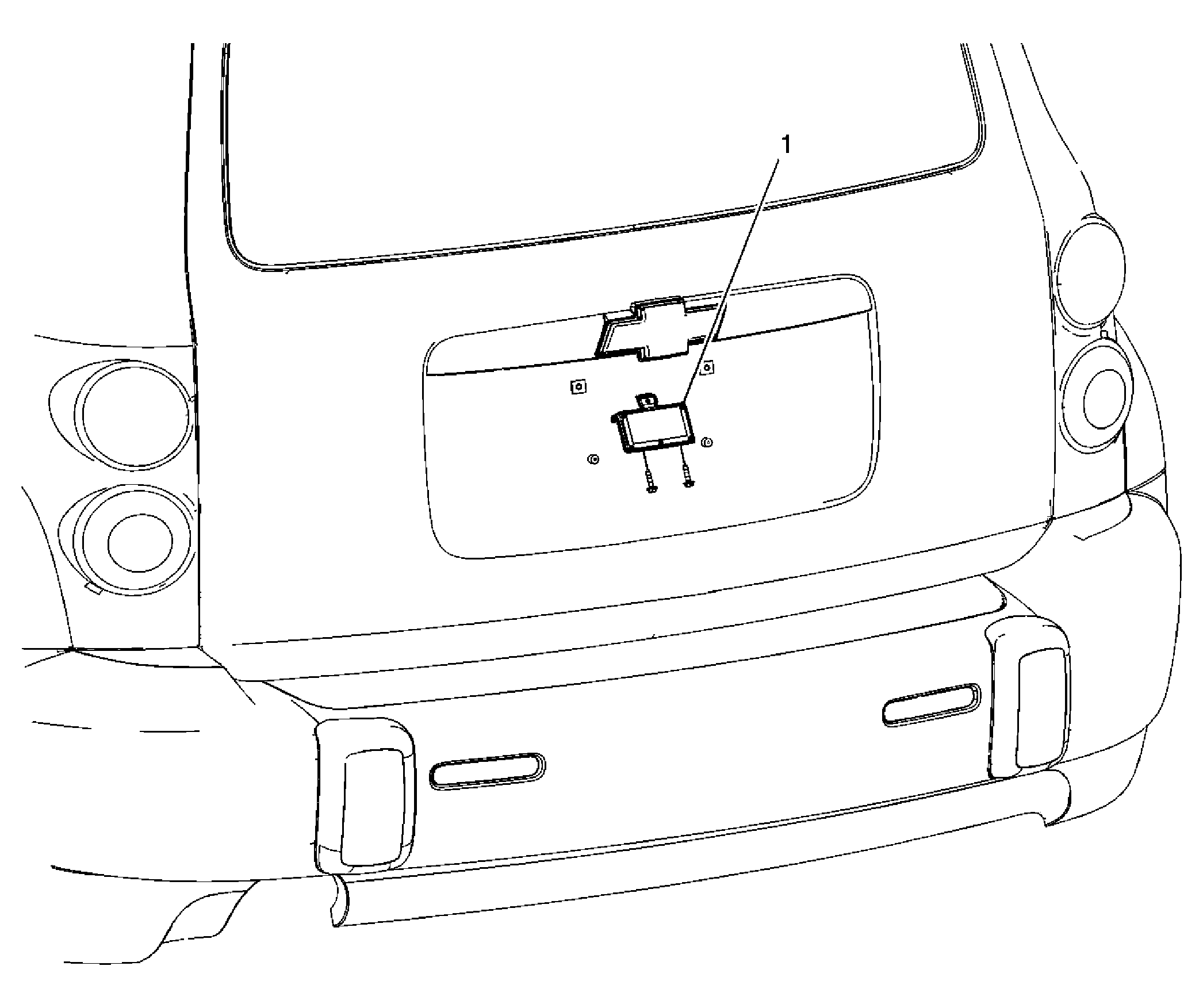

Fig 7: Liftgate Release Switch

GM1700025

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Release Switch

Fig 8: Rear Access Panel Components (Panel Van)

GM1863455

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Access Panel - RR
2	Rear Access Panel Latch - RR
3	Speaker - RR
4	C310
5	C311
6	Speaker - LR
7	Rear Access Panel Latch - LR
8	Rear Access Panel - LR
