Ambient Air Temperature Gage Sensor Replacement

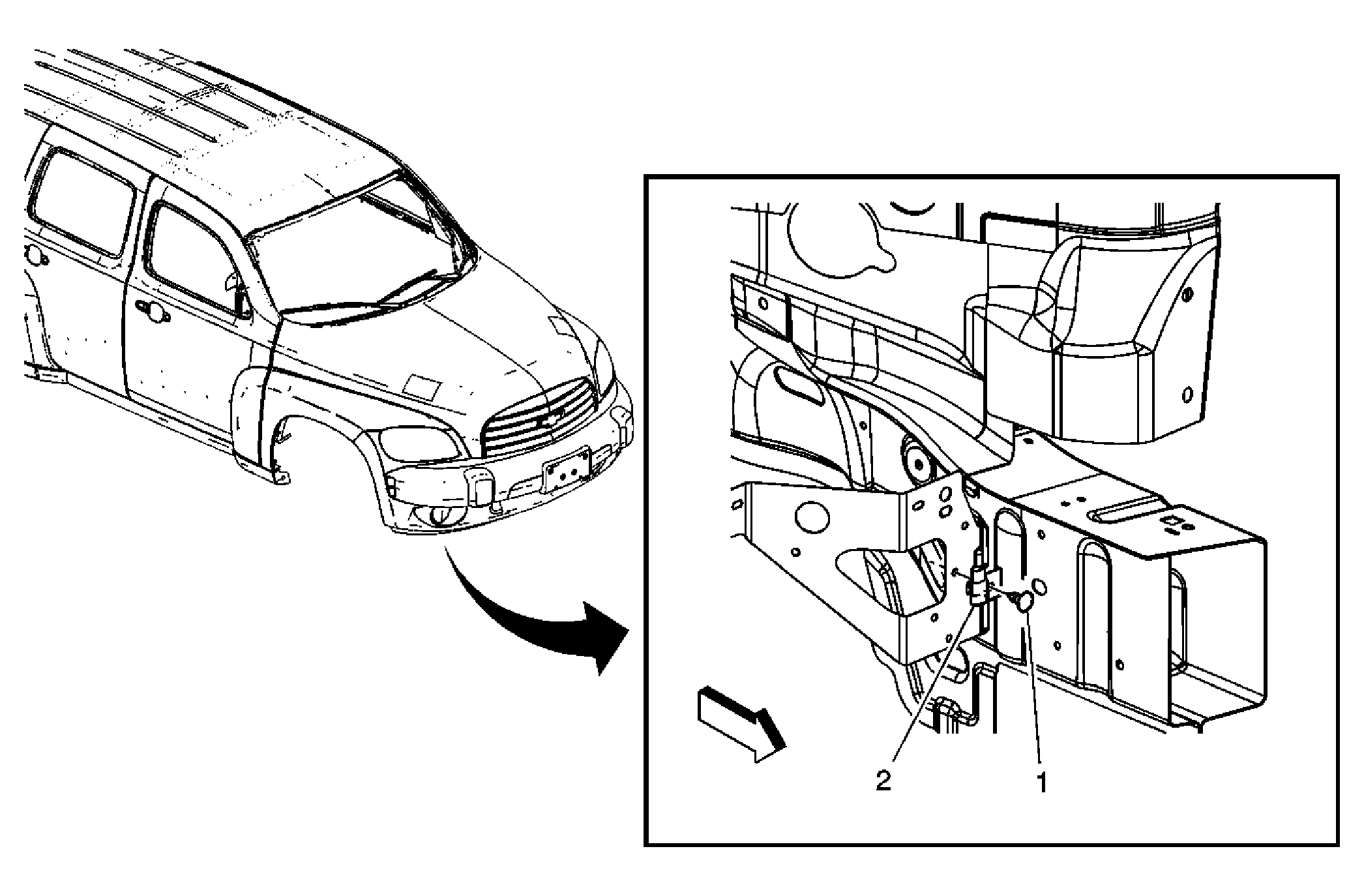

Fig 1: Ambient Air Temperature Gage Sensor Replacement
GM1613831Courtesy of GENERAL MOTORS CORP.
Ambient Air Temperature Gage Sensor Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the right fog lamp. Refer to Front Fog Lamp Replacement .
1 Ambient Air Temperature Gage Sensor Fastener
2 Ambient Air Temperature Gage Sensor Assembly
