Door Switch: Diagrams

Door Jamb Switch - Left Front:

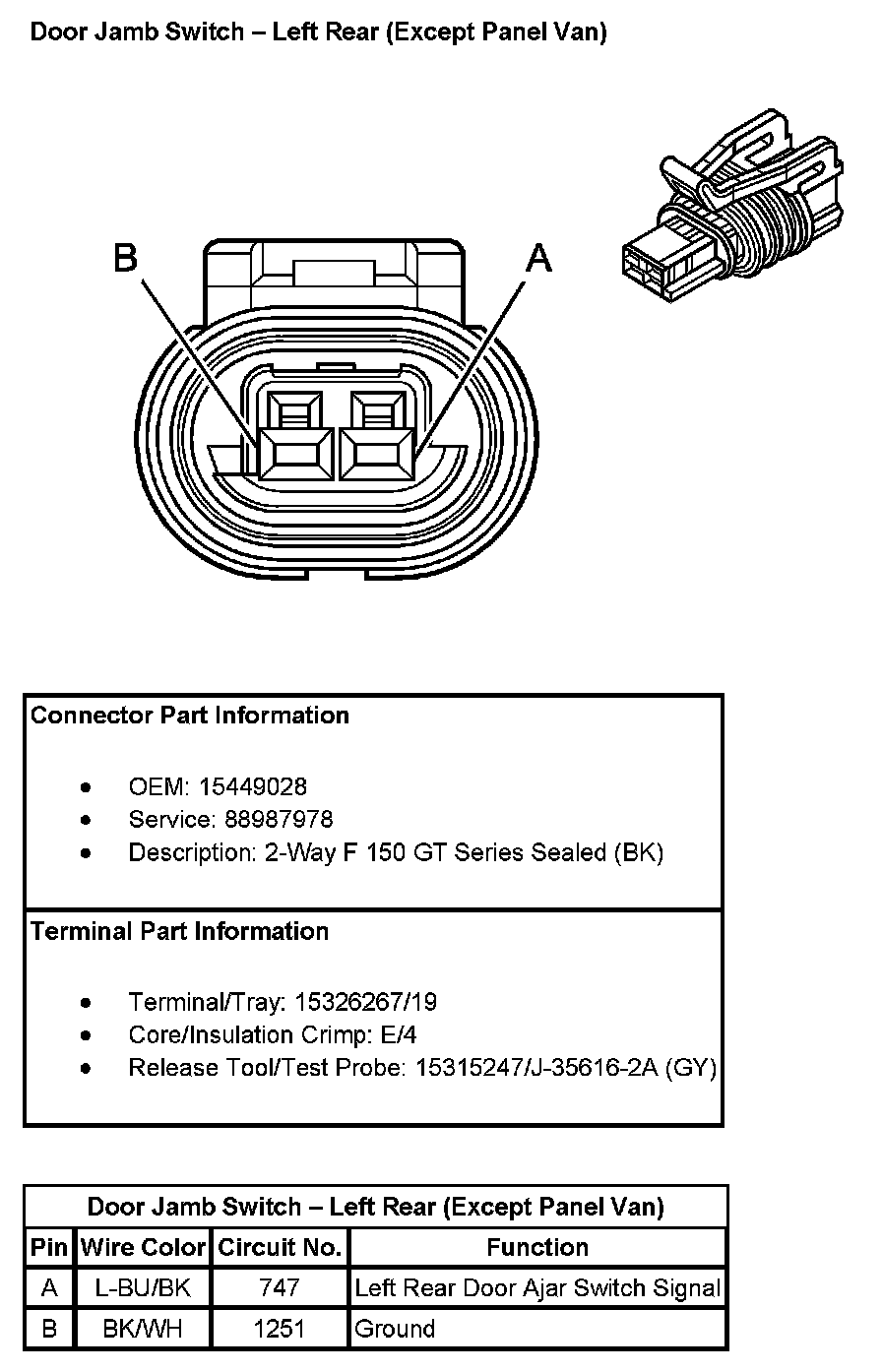

Door Jamb Switch - Left Rear (Except Panel Van):

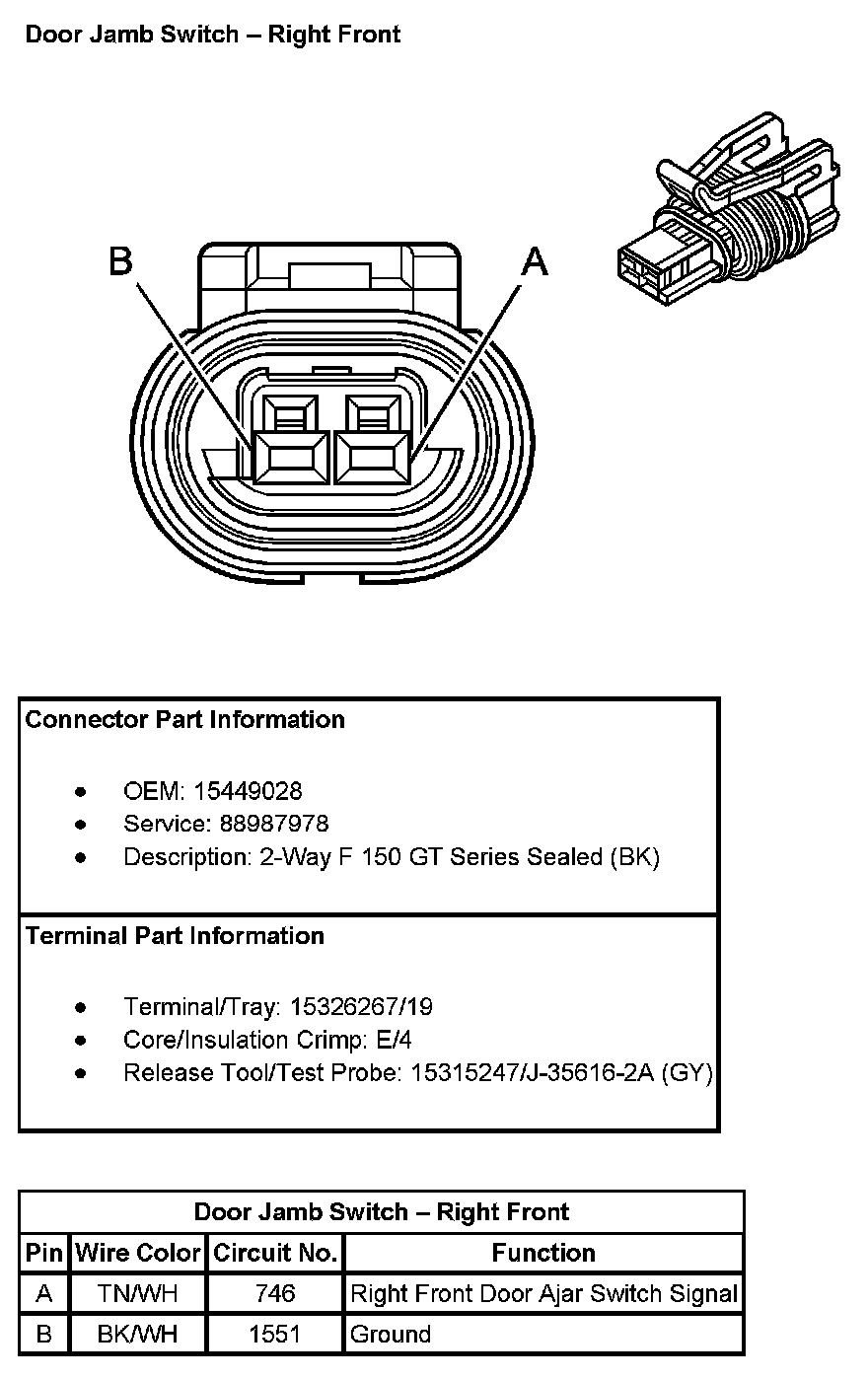

Door Jamb Switch - Right Front:



Door Jamb Switch - Right Rear (Except Panel Van):
