Parking Brake Warning Switch: Locations

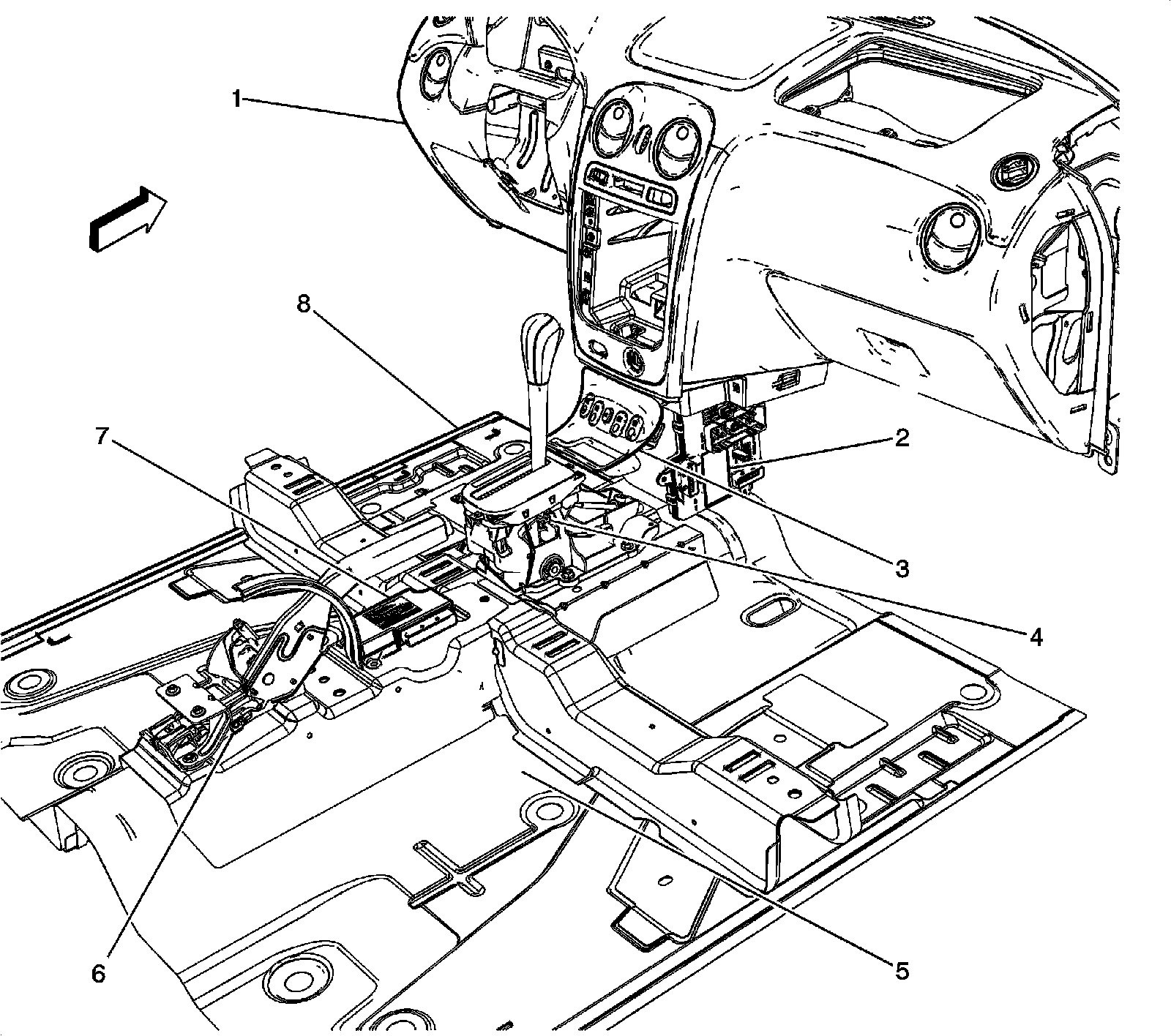

Center Console Components

Center Console Components:

1 - I/P Trim
2 - Body Control Module (BCM)
3 - Master Window Switch
4 - A/T Shift Control (MN5)
5 - Floor Panel
6 - Park Brake Switch
7 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
8 - Floor Panel
