Oil Pump Cover and Body Assemble



Oil Pump Cover and Body Assemble

Tools Required

J 21368 Pump Body and Cover Alignment Band

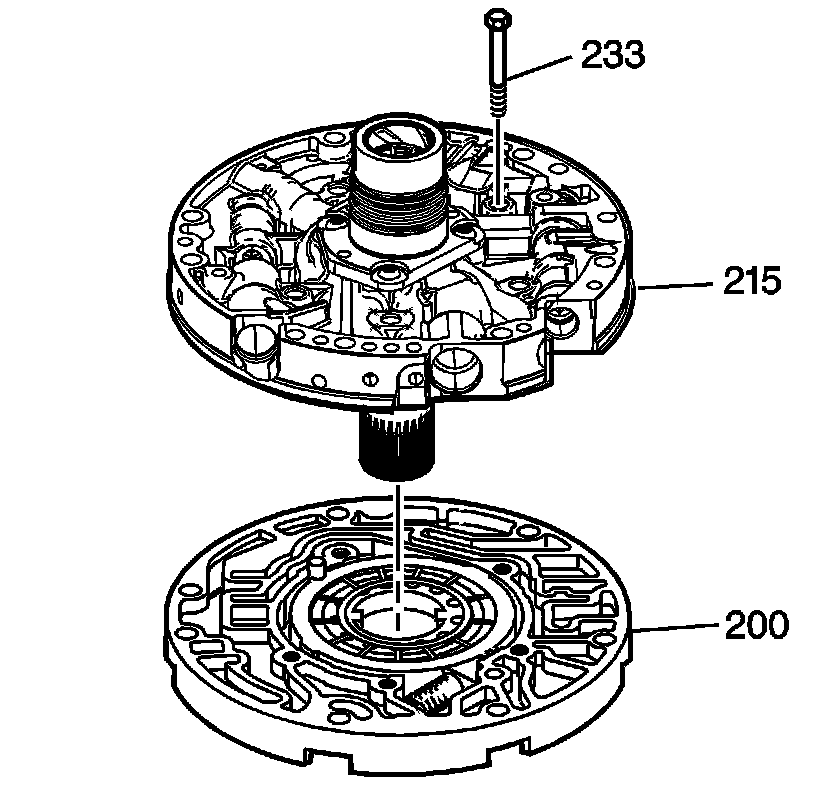

1. Place the oil pump cover onto the oil pump body and put stator shaft through a hole in the bench.
2. Install the pump cover bolts (233) finger tight only.

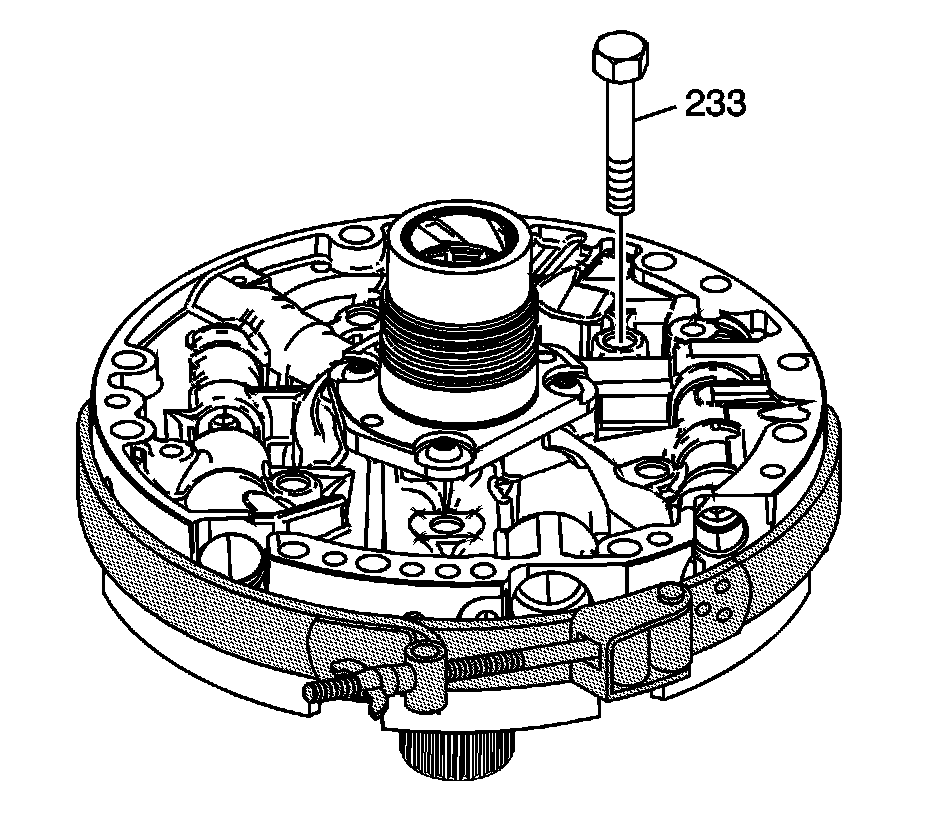

3. Install the J 21368 .

Notice: Refer to Fastener Notice .

4. Tighten the pump cover bolts (233).

Tighten the bolts to 24 N.m (18 lb ft).

5. Remove the J 21368 .
