Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
4L60-E/4L65-E/4L70-E Automatic Transmission
>>

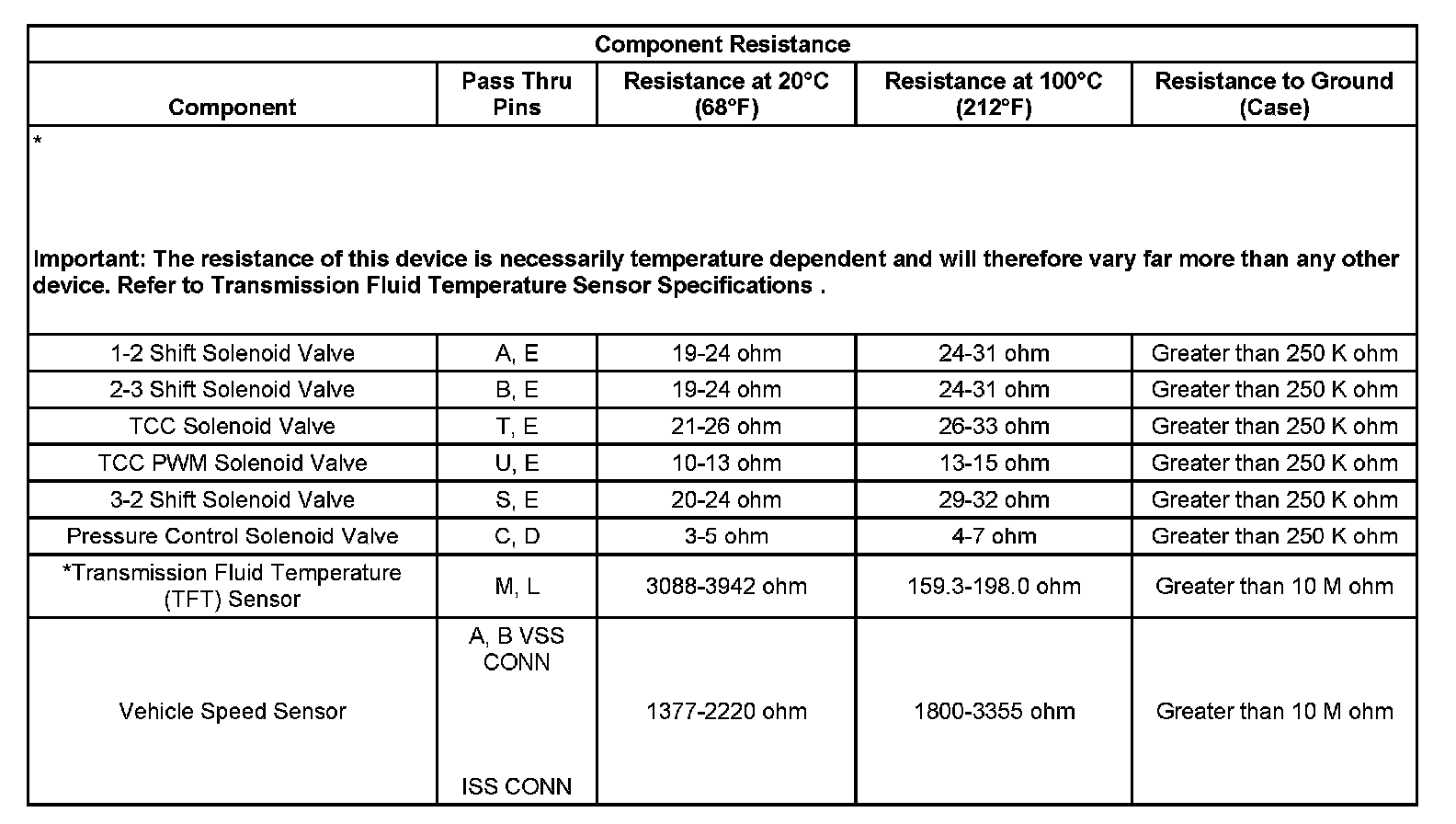

Component Resistance
Component Resistance
Component Resistance
Component Resistance:
