Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Locations

Power Door Lock Switch: Locations

Driver Door:



Front Passenger Door:

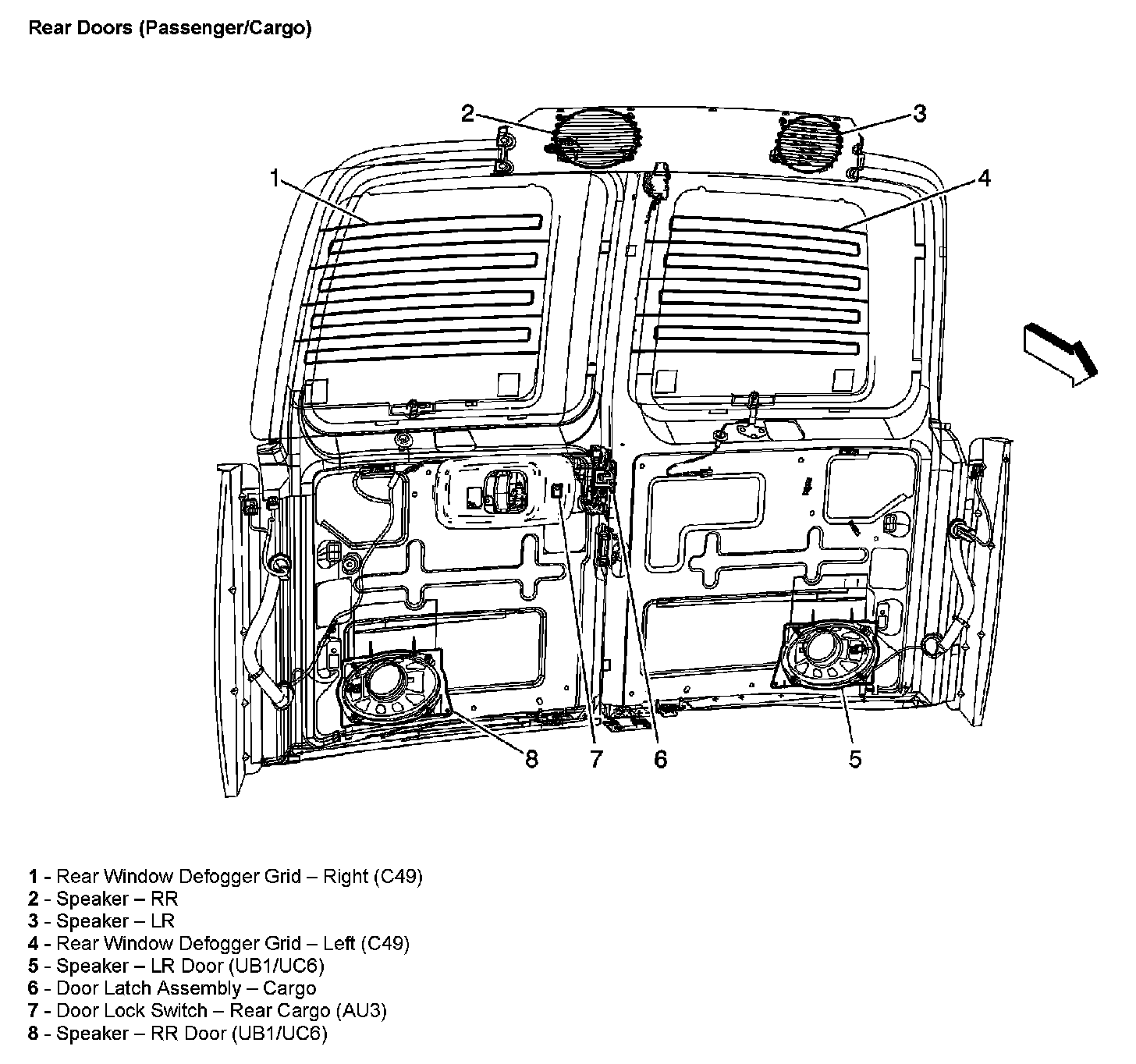

Rear Doors (Passenger/Cargo):
