Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Locations >> Splice Locations >> Splices By Number >> S400 - S499 >> S404

S404

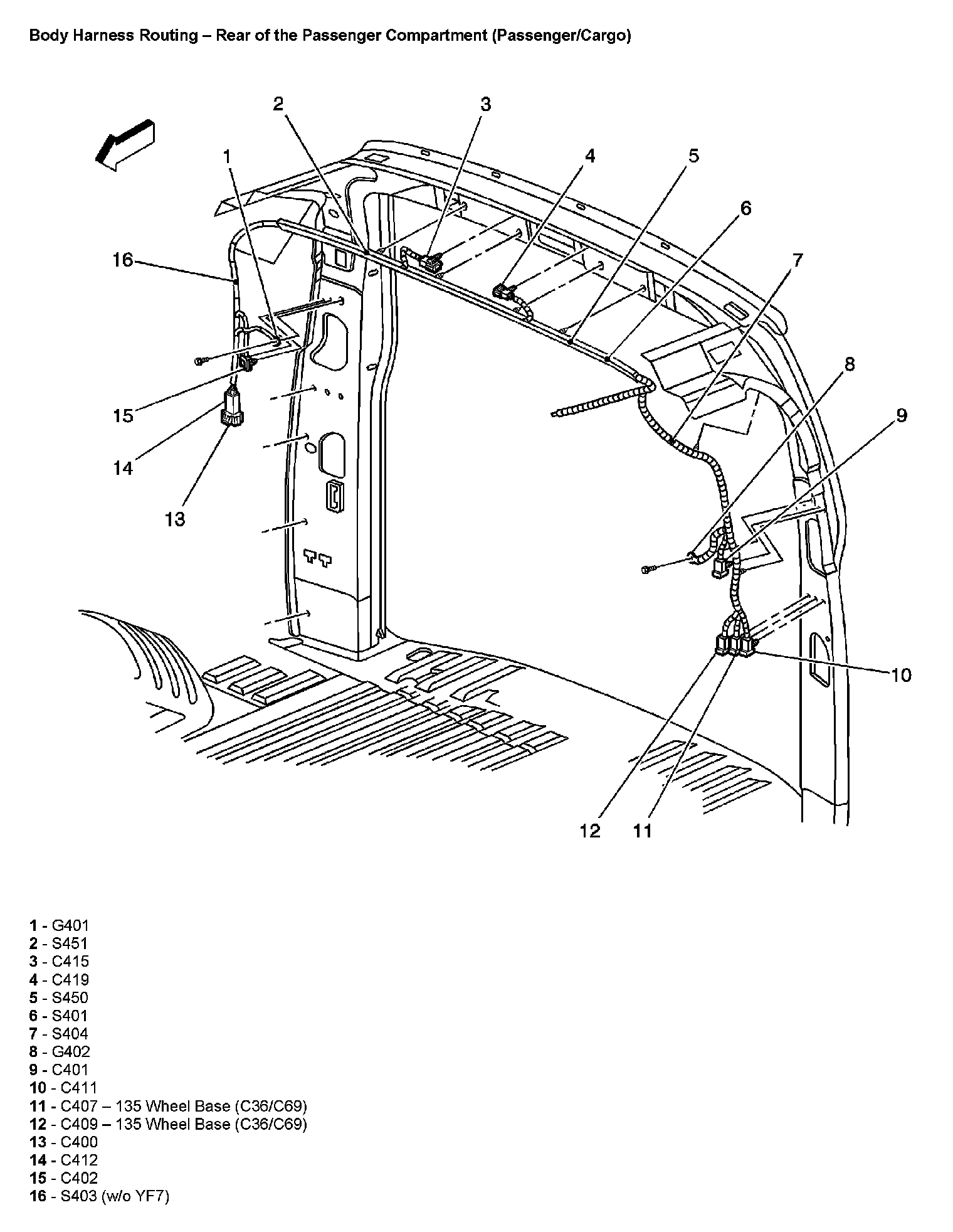

Body Harness Routing - Rear Of The Passenger Compartment (Passenger/Cargo):
