C128



Engine Controls Component Views

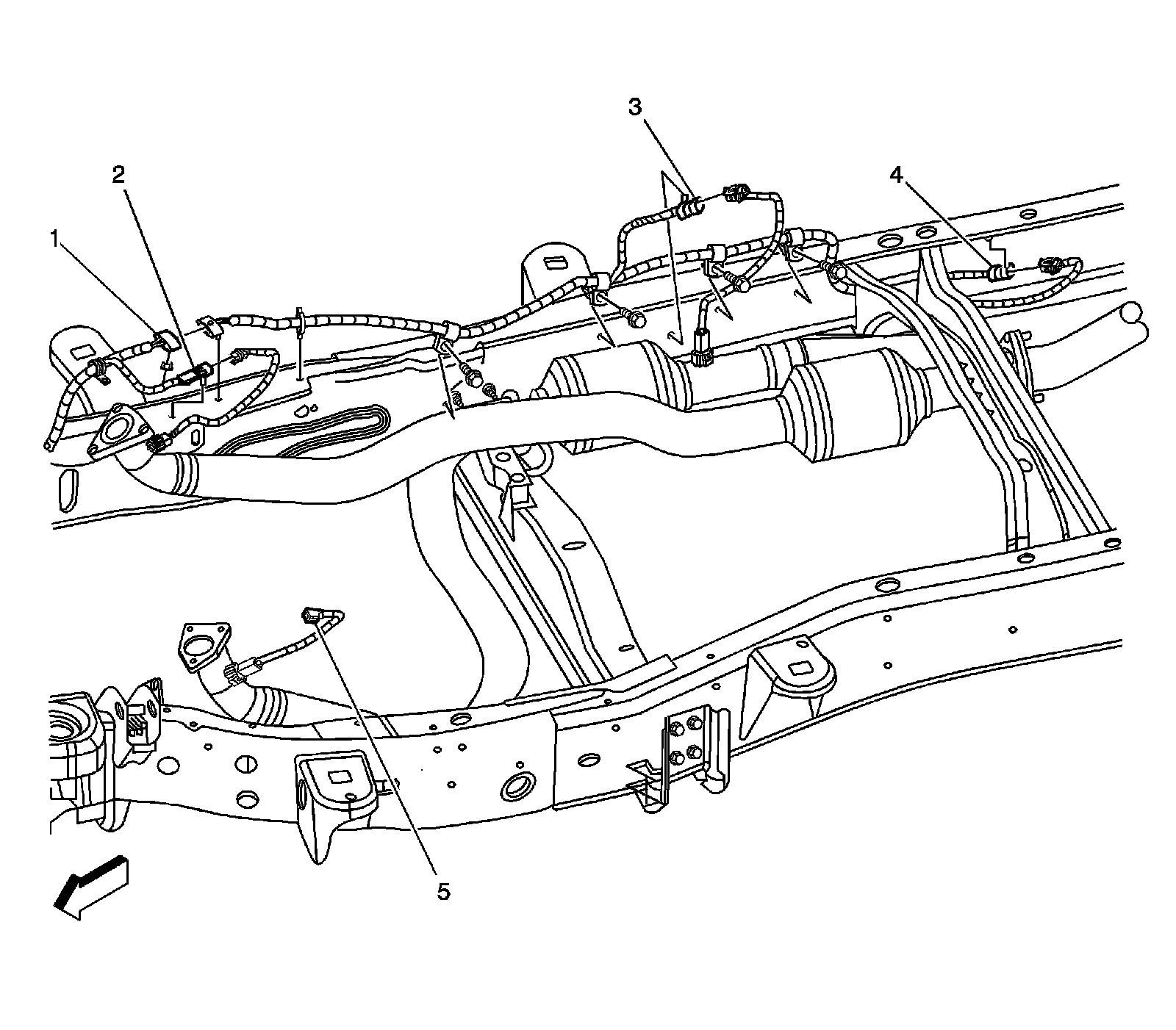

Engine Harness - Oxygen Sensors (4.8L/6.0L)




1 - C128 (Cutaway)
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector
4 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Connector
5 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector
