C127

Engine Controls Component Views

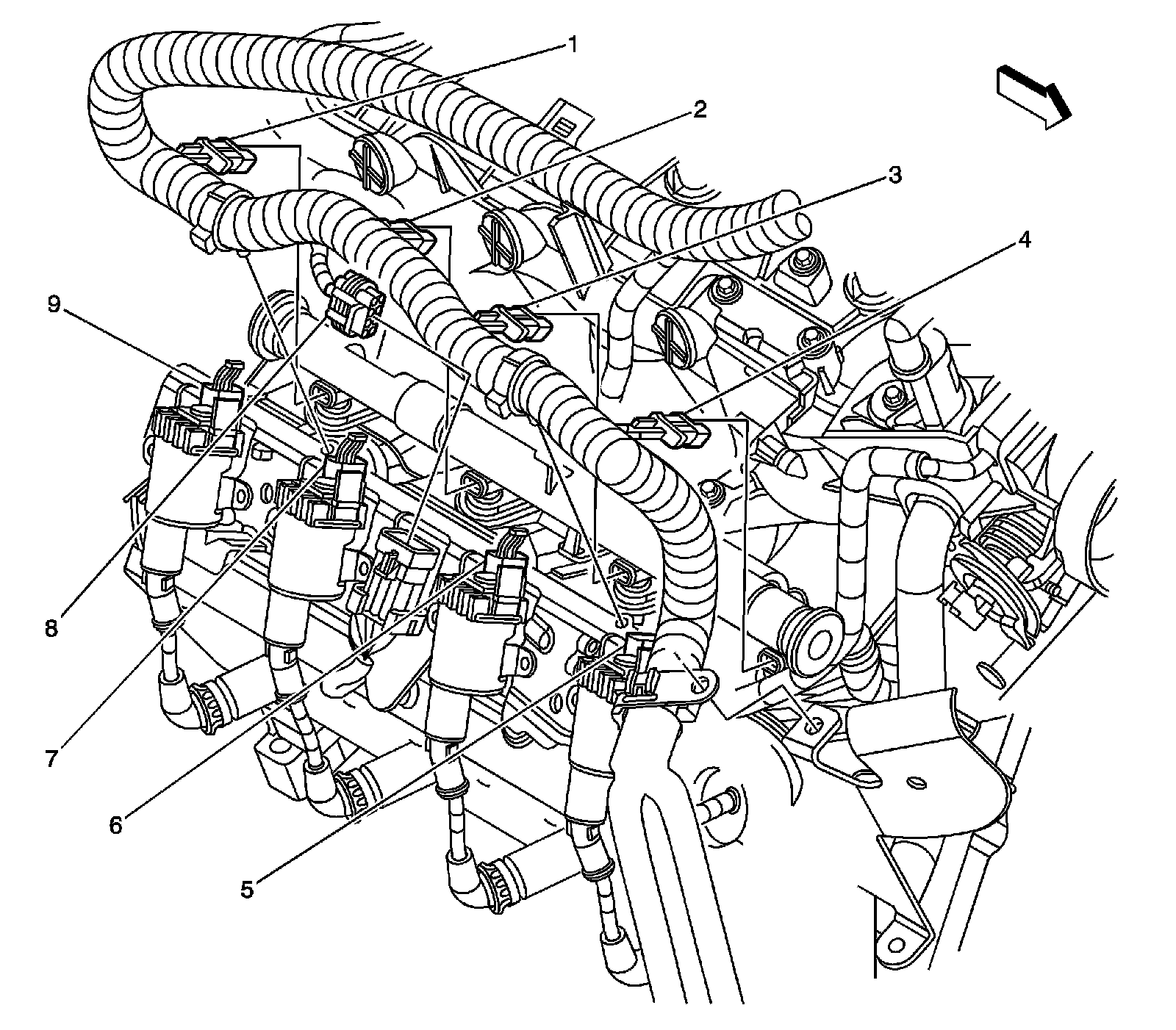

Upper Right Side of the Engine




1 - Fuel Injector 8 Connector
2 - Fuel Injector 6 Connector
3 - Fuel Injector 4 Connector
4 - Fuel Injector 2 Connector
5 - Ignition Coil/Module 2 Connector
6 - Ignition Coil/Module 4 Connector
7 - Ignition Coil/Module 6 Connector
8 - C127
9 - Ignition Coil/Module 8 Connector
